USER GUIDE
u-line.com

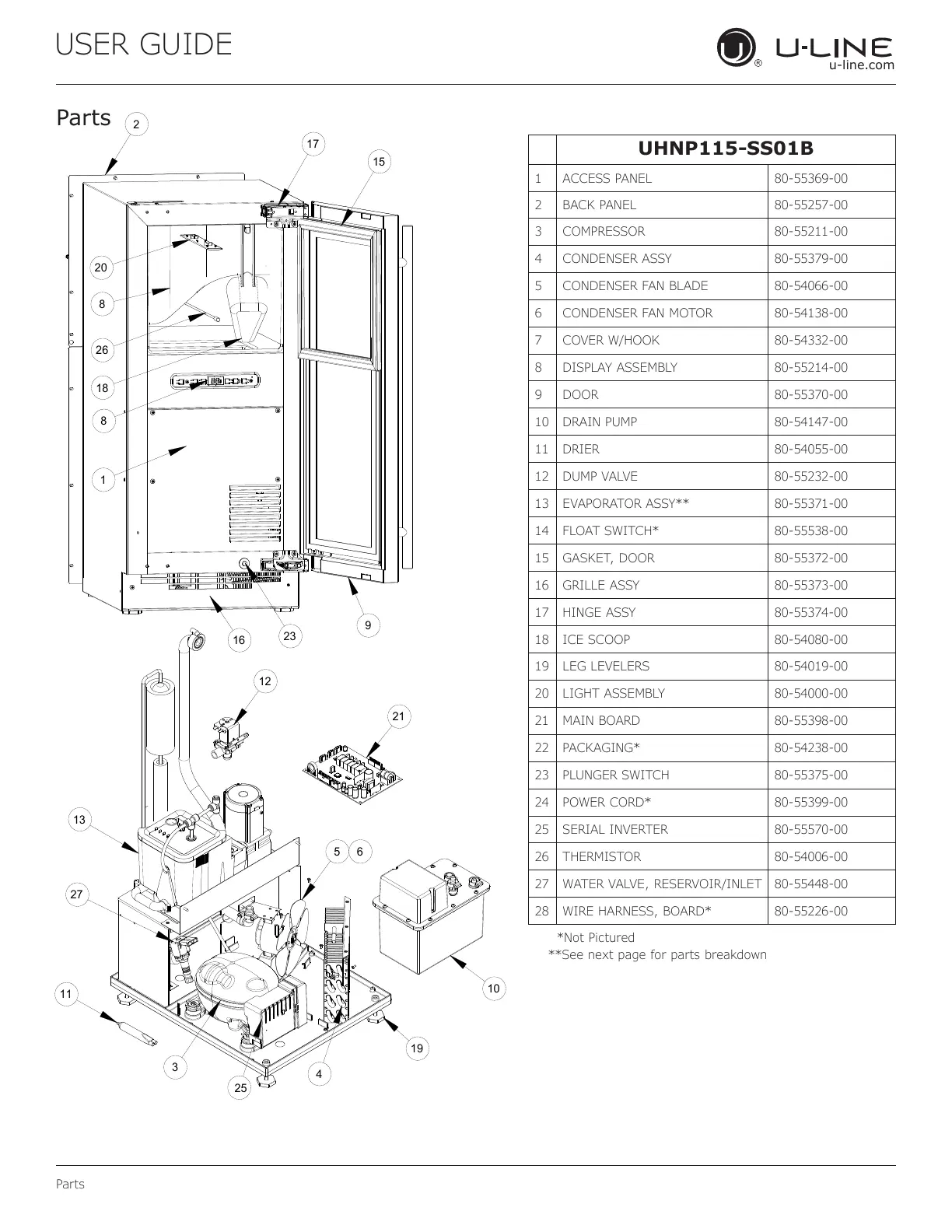

Parts
Pa rts
UHNB115-SS01B
1 ACCESS PANEL 80-55369-00
2 BACK PANEL 80-55257-00
3 COMPRESSOR 80-55211-00
4 CONDENSER ASSY 80-55379-00
5 CONDENSER FAN BLADE 80-54066-00
6 CONDENSER FAN MOTOR 80-54138-00
7 COVER W/HOOK 80-54332-00
8 DISPLAY ASSEMBLY 80-55214-00
9 DOOR 80-55370-00
10 DRIER 80-54055-00
11 DUMP VALVE 80-55232-00
12 EVAPORATOR ASSY** 80-55371-00
13 FLOAT SWITCH* 80-55538-00
14 GASKET, DOOR 80-55372-00
15 GRILLE ASSY 80-55373-00
16 HINGE ASSY 80-55374-00
17 ICE SCOOP 80-54080-00
18 LEG LEVELERS 80-54019-00
19 LIGHT ASSEMBLY 80-54000-00
20 MAIN BOARD 80-55398-00
21 PACKAGING* 80-54238-00
22 PLUNGER SWITCH 80-55375-00
23 POWER CORD* 80-55399-00
24 SERIAL INVERTER 80-55570-00
25 THERMISTOR 80-54006-00
26 WATER VALVE, RESERVOIR/INLET 80-55448-00
27 WIRE HARNESS, BOARD* 80-55226-00
UNLESS OTHERWISE SPECIFIED
ALL DIMENSIONS ARE IN INCHES
.XX
.03
.XXX
.015
X
1
HOLE = +.010/-.004
REMOVE BURRS AND SHARP EDGES
TO .015 MAX.
INTERPRET DIM AND TOL PER
ASME Y14.5M-1994
DO NOT SCALE DRAWING
THIRD ANGLE PROJECTION
THIS DRAWING IN DESIGN AND
DETAIL IS THE PROPERTY OF
U-LINE CORPORATION
ALL RIGHTS OF DESIGN
AND INVENTION ARE RESERVED.
DRAWING NAME
15" NUGGET ICE BIN HOME 1
STAINLESS SOLID 115V
MODEL
MATERIAL
SIZE
B
DRAWING NUMBER
UHNB115-SS01B
REV
A
CHECKED BY DATE CHECKED
DRAWN BY
MIEPL
DATE DRAWN
09JUN20
SCALE 0.125 SHEET 2 OF 2
SUHNB115-SS01B
Item Description U-Line P/N
1 ACCESS PANEL ASSY, NUGGET 80-55369-00
2 BACK PANEL ASSY, 15 FULL 80-55257-00
3
4
COMPRESSOR ASSY, NUGGET 15"
80-55211-00
5
CONDENSER ASSY, NUGGET
80-55379-00
6
CONDENSER FAN BLADE
80-54066-00
7
CONDENSER FAN MOTOR EL/WP
80-54138-00
8
COVER W/HOOK WHITE
80-54332-00
9
DISPLAY MODULE
80-55214-00
10
DOOR ASSY W/HINGES, NUGGET
80-55370-00
11
DRIER
80-54055-00
12
DUMP VALVE ASSY, NUGGET 15"
80-55232-00
13
EVAPORATOR ASSY, NUGGET
80-55371-00
14
FLOAT SWITCH, RESERVOIR
80-55538-00
15
GASKET, DOOR, NUGGET
80-55372-00
16
GRILLE W/SCREWS, NUGGET
80-55373-00
17
HINGE ASSY, NUGGET
80-55374-00
18
ICE SCOOP, CLR EL/WP
80-54080-00
19
LED LIGHT STRIP AND COVER ASSY
80-54000-00
20
LEG LEVELLERS (4)
80-54019-00
21
MAIN BOARD
80-55398-00
22
23
PACKAGING W/O PALLET
80-54238-00
24
PLUNGER SWITCH, NUGGET
80-55375-00
25
POWER CORD, NUG ADA
80-55399-00
26
THERMISTOR(1 PC) EL/WP
80-54006-00
27
WATER VALVE, RESERVOIR/INLET
80-55448-00
WIRE HARNESS, BOARD
80-55226-00
2
1
19
17
7
25
8
16
14
15
22
9
20
3
4
5 6
10
11
12
17
18
26
24
SERIAL INVERTER
80-55570-00
*Not Pictured
**See next page for parts breakdown
