Removing and Installing Grille
Disconnect electric power to the unit before removing
the grille.
DO NOT touch the condenser fins (4). The condenser
fins are SHARP and can be easily damaged.

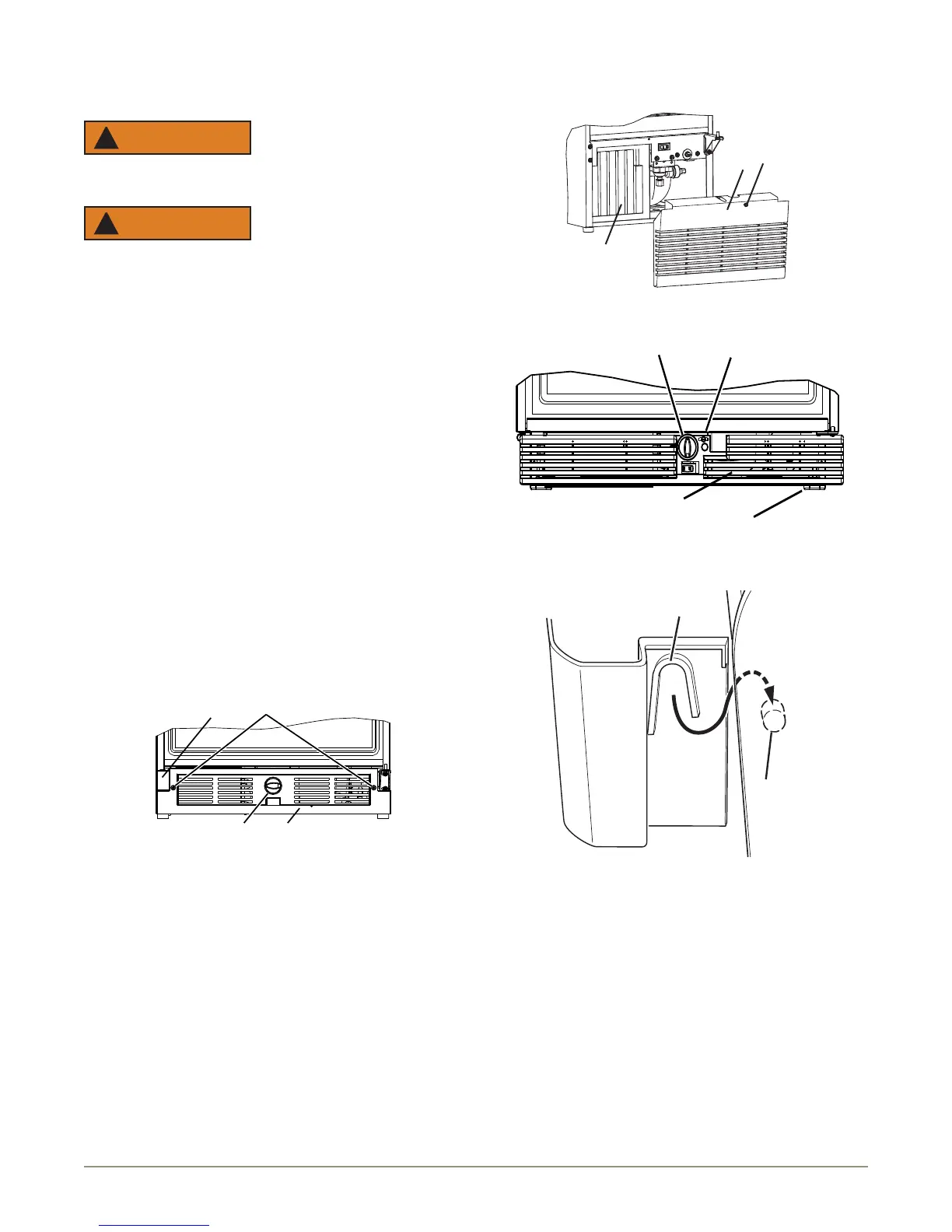

Removing the grille.
1. Disconnect power to the unit.
2. Remove control knob (6) if equipped.
3. Loosen the two screws (1). Some models may have only one
screw in the center.
4. Remove grille (2) and grille cap (if equipped) (3) from unit.
Installing the grille:
1. For 15 and 29 models make sure grille cap (3) is behind grille in
slots provided in grille before attaching grille to unit.
2. For 75 models place the hook-hinge located on the rear bottom
side of the grille (2) onto the front lip of the unit base. Swing the
grille up into position.
3. Align cabinet and grill holes and secure, but do not overtighten
grille screws (1).
4. Install control knob (6) if equipped.
5. Reconnect power to the unit.
29 Models
Ice Maker Models
Removing and Installing Door Shelves
For models equipped with door shelves:
To r e m o v e t h e d o o r s h e l f :
1. Grasp shelf in center, and lift until the shelf notches (1) clear
the pins (2).
2. Carefully pull the shelf away from the door.
To install the door shelf:
1. Holding the shelf in the center, center the shelf in the door at
the desired location, slightly above the pins (2).
2. Lower the shelf onto the pins (2).
5
6
