u-line.com 13

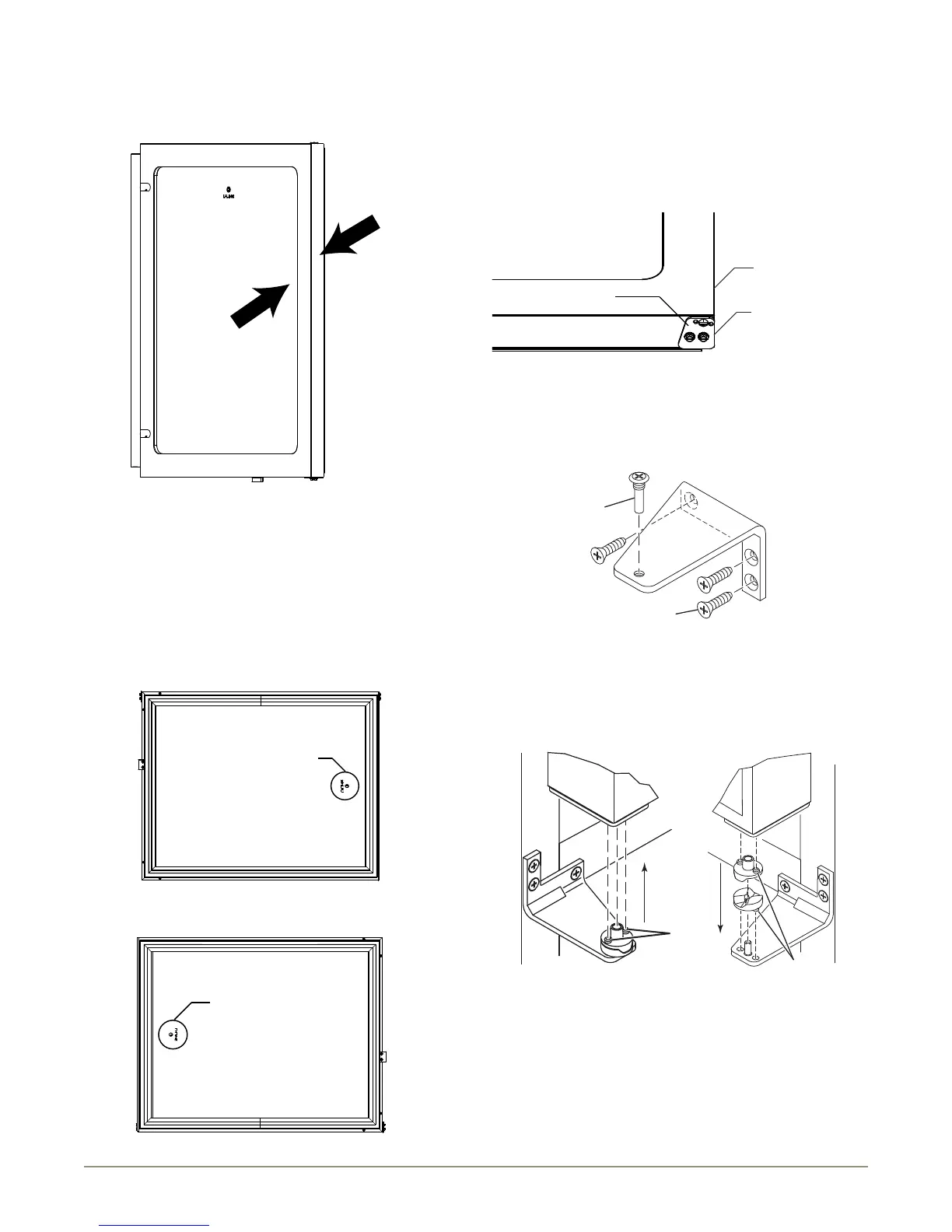

3. Grasp outer edge of stainless frame and firmly press inside edge
of glass in while pulling stainless frame in opposite direction.
4. Unhinge frame from door.
Assemble Stainless Frame
1. Prop frame against solid surface, handle side down and away
2. Insert door, logo forward, into frame at a 30° angle. For a right
hand hinge the logo should be to your right. For a left hand hinge
the logo should be to your left.
3. Swing door into frame.
4. Install screws removed in “Remove Stainless Frame” step 1 to
top of door, opposite handle.
5. Install pivot plat to bottom of door, opposite of handle, using
hardware removed in “Remove Stainless Frame” step 2. Arrange
pivot plate so the flat edge is against the edge of the door.
Orient Hinge
1. Remove existing top hinge (three screws) (2).
Reinstall hinge to bottom opposite.
1. Install the hinge just removed from the top to the BOTTOM
opposite side of the cabinet (three screws) (2).
2. Remove the two door closer inserts (4) from the preexisting
bottom hinge.
3. Install door closer inserts as shown on the new bottom hinge
(4).
Push Glass
In
Pull Frame
Away
Door Orientation Right Hand Hinge
Logo
Door Orientation Left Hand Hinge
Logo
Pivot Plate
Flat Edge
Door Edge
1
2
4
4
