Ubee UBC1301-AA00 User Manual

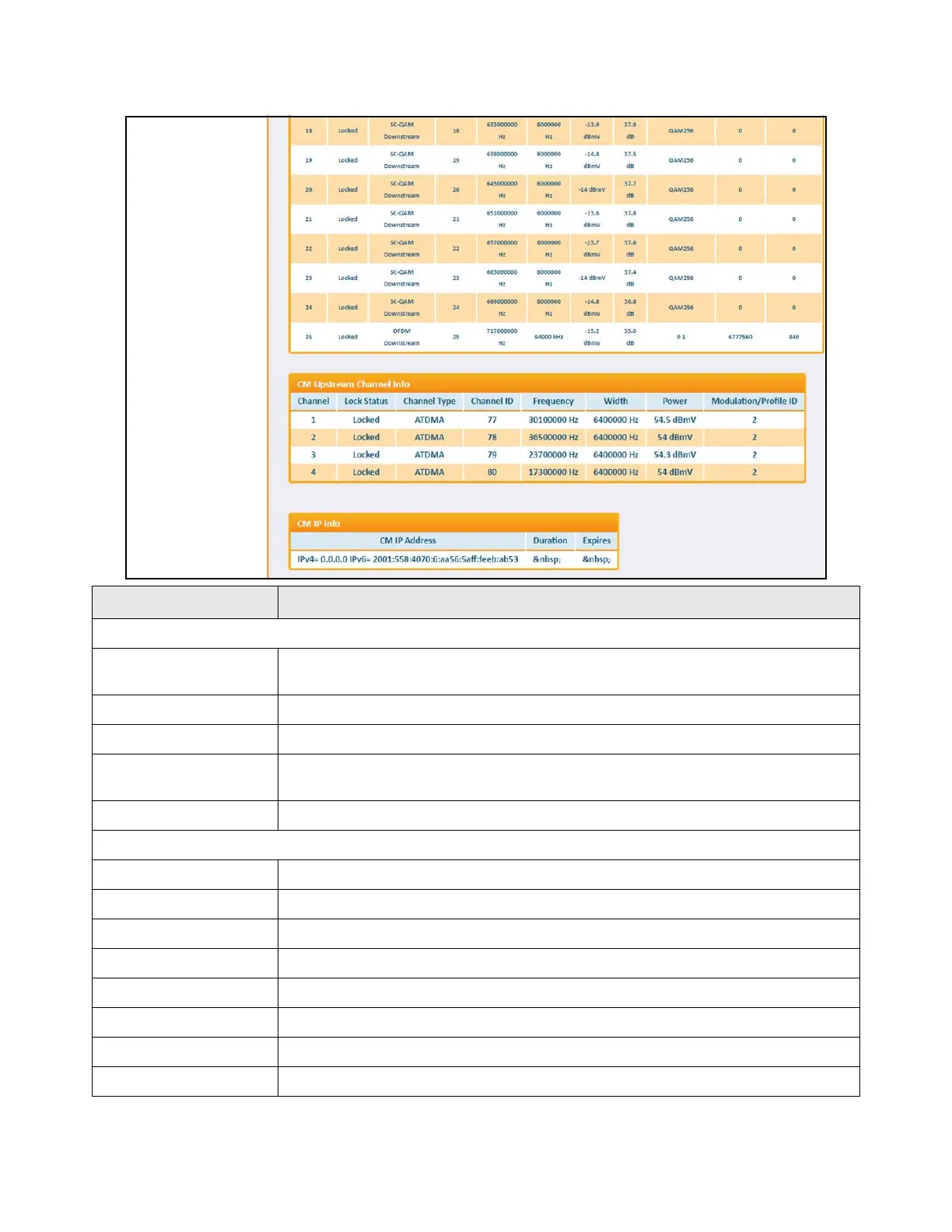

Ubee Interactive Using the CM Info Option
Ubee UBC1301-AA00 Advanced Wireless Voice Gateway Subscriber User Guide • March 2017 25
Label Description
Startup Procedure: (Procedure, Status, Comment)
Acquire Downstream
Channel
Displays the Downstream channel status and if the device has locked to a channel.
Connectivity State Displays connection status and if the UBC1303-AA00 is operational.
Boot State Displays the status on boot up and if the device is operational.
Configuration File
Provides the status and file name of the configuration file currently used by the
UBC1303-AA00.
Security Displays the status of the security settings: enabled/disabled.
CM Downstream Channel Info
Channel Numbers the downstream channels.
Lock Status Displays if the device has locked successfully to a downstream channel.
Channel Type Displays the channel type.
Channel ID Displays the downstream channel ID.
Frequency Displays the downstream channel frequency on which the UBC1303-AA00 is scanning.
Width Displays the channel width.
Power Displays the receiver power level in decibel millivolts (dBmV) after ranging process.
SNR Displays the signal-to-noise ratio, the desired signal level to the background noise level.
