Configuring PoE Settings
The PoE setting for ports eth0-eth4 is set to Off by default.
WARNING: Before activating PoE, ensure that the
connected device supports passive PoE and the
supplied voltage.

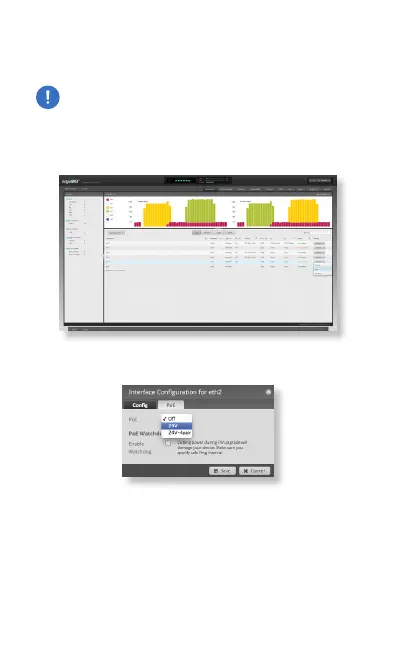

1. In the Dashboard tab, click Actions > PoE of the Ethernet
port you want to configure.
2. The Interface Configuration window will appear. Select the
appropriate PoE setting, and click Save.
