Configuring the CAN interface in RealTerm

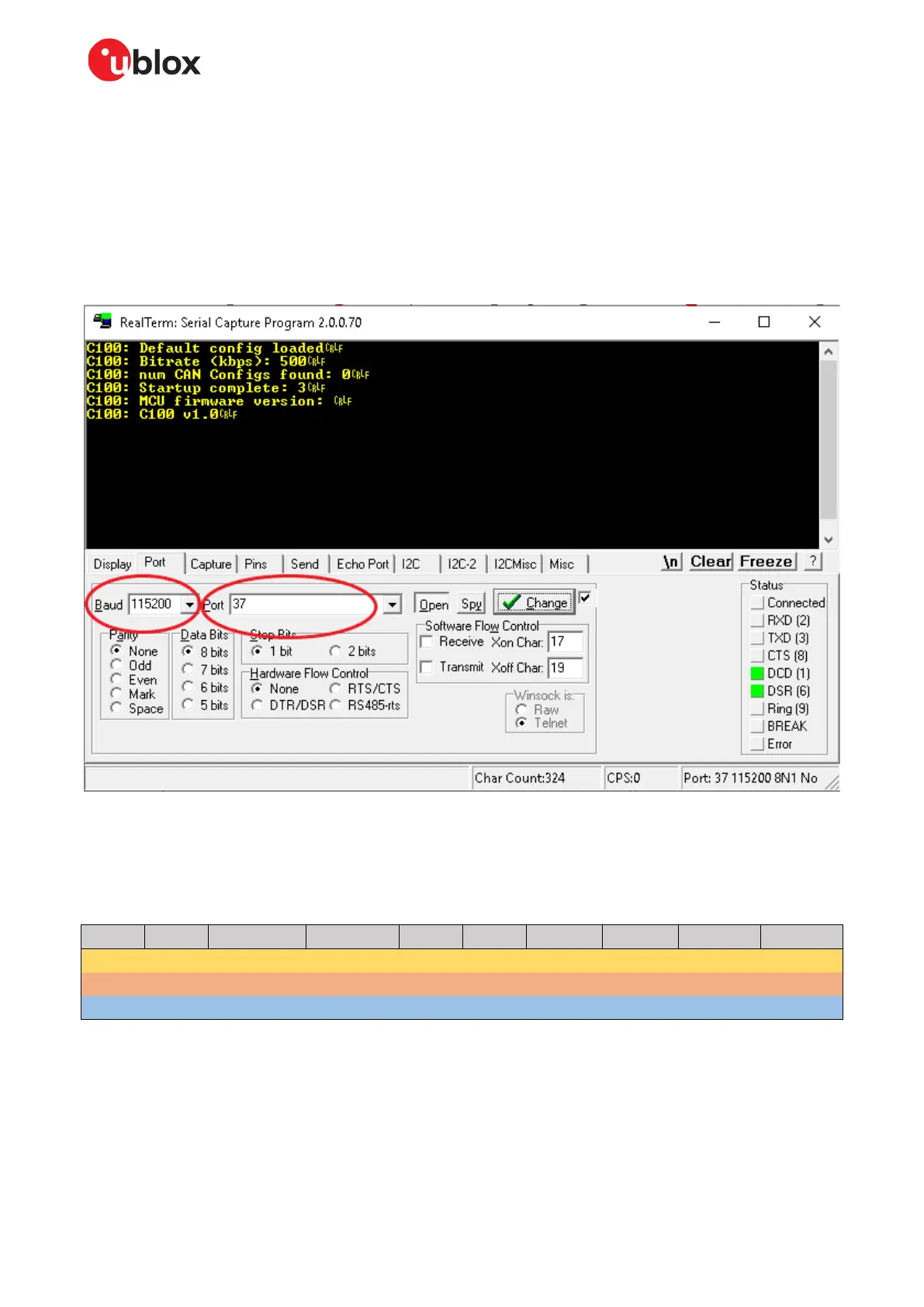

5. Open RealTerm.
6. Select the Port tab.
7. Select the PC port corresponding to the MCU UART.
8. Set baud rate to 115200.
9. Restart the EVK.
10. MCU startup dialog should appear in the terminal.
Generating the CONFIG SET strings with the MSG tool
From section B.1.1:
Startbit
Length
Byte order
Value type
Factor
Offset
Min
Max
Unit
Source
40
16
big-endian
unsigned
1
0
0
65535
tick
RR
56
16
big-endian
unsigned
1
0
0
65535
tick
RL
8
2
big-endian
unsigned
1
0
0
3
direction
direction
