2.6.8 External active antenna control (NEO-6)

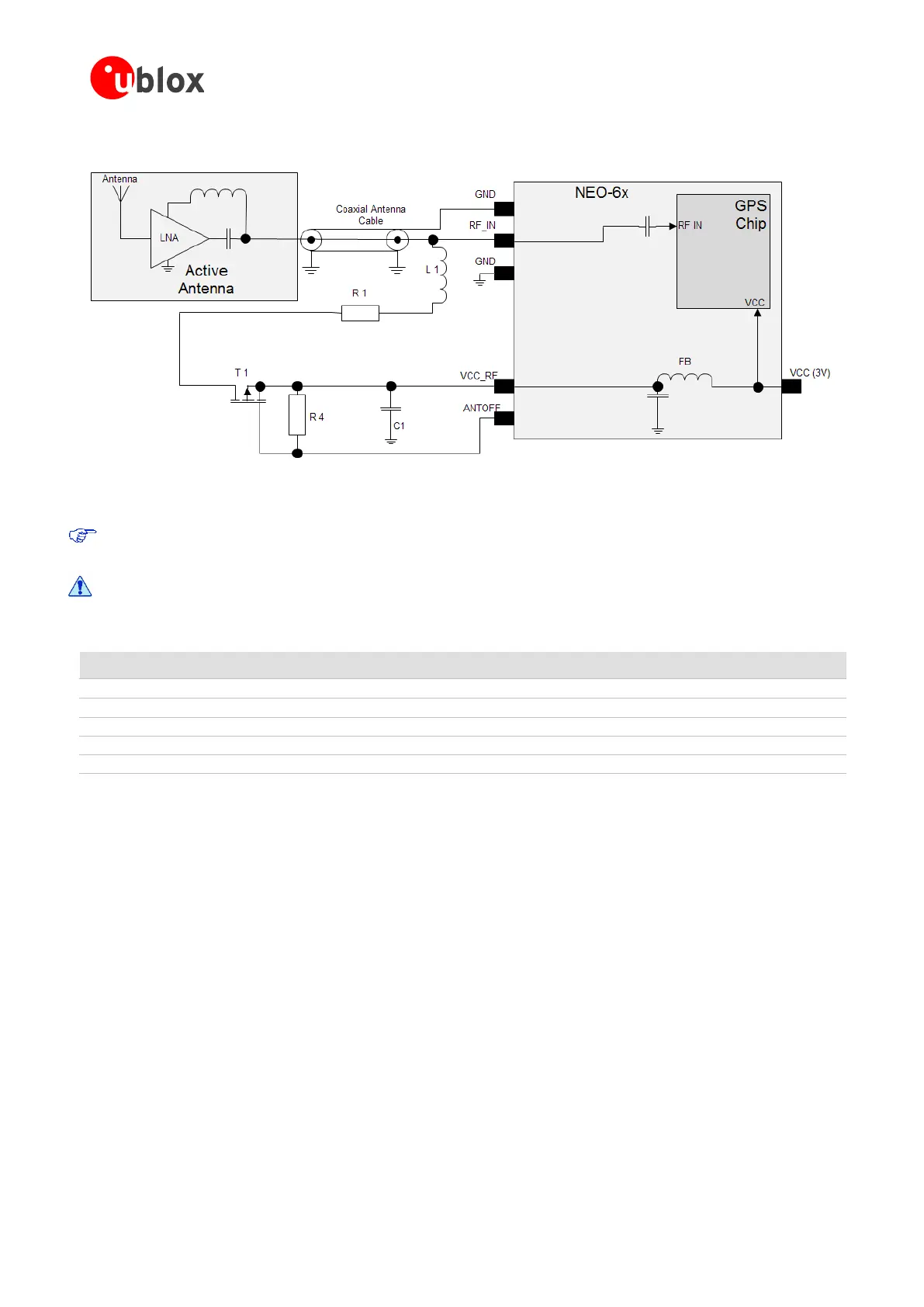

Figure 53: External active antenna control (NEO-6)
When using an external LNA in PSM on / off mode, pin 17 can be programmed as ANTOFF (see section
1.7.7).
Use caution when implementing ANTOFF configuration since forward compatibility is not
guaranteed
Table 24: Active antenna control, bill of material
