SAM-M10Q-Integration manual

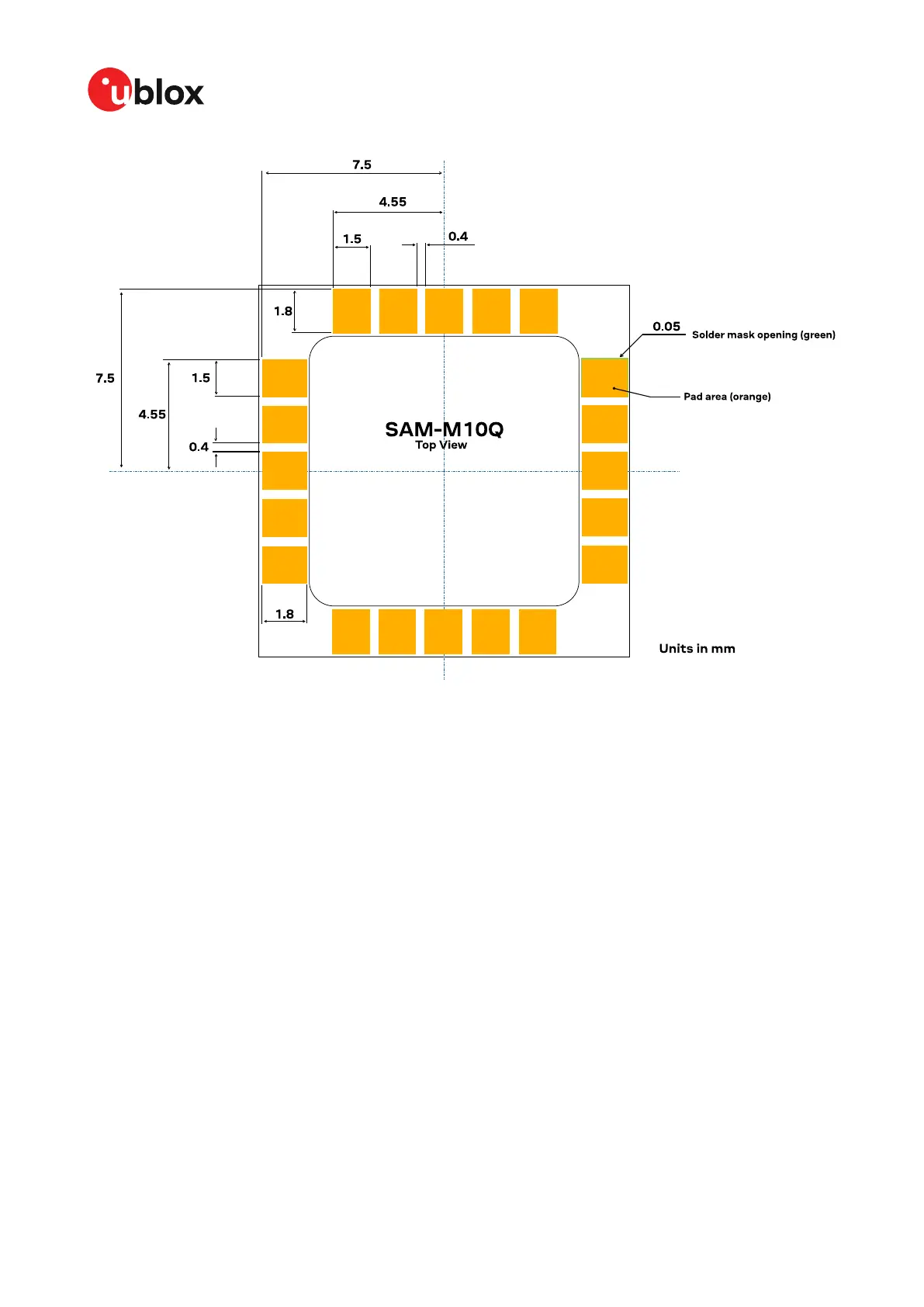

Figure 23: SAM-M10Q footprint and solder mask opening
Figure 24 shows the paste mask dimensions for each pad. Recommended stencil thickness is 120
µm.
UBX-22020019 - R01
3 Hardware integration Page 60 of 72
C1-Public
