2.4.2.2 Guidelines for ANT_DET layout design
Figure 36 describes the recommended layout for the antenna detection circuit to be provided on the
application board to achieve antenna detection functionality, implementing the recommended schematic
described in the previous Figure 35 and Table 25:
The ANT pin must be connected to the antenna connector by means of a 50 transmission line,
implementing the design guidelines described in section 2.4.1 and the recommendations of the SMA
connector manufacturer.
DC blocking capacitor at ANT pin (C2) must be placed in series to the 50 RF line.
The ANT_DET pin must be connected to the 50 transmission line by means of a sense line.
Choke inductor in series at the ANT_DET pin (L1) must be placed so that one pad is on the 50
transmission line and the other pad represents the start of the sense line to the ANT_DET pin.
The additional components (R1, C1 and D1) on the ANT_DET line must be placed as ESD protection.
The additional high pass filter (C3 and L2) on the ANT line are placed as ESD immunity improvement
SARA module
C2
R1
D1
C1
L1
J1
C3 L2

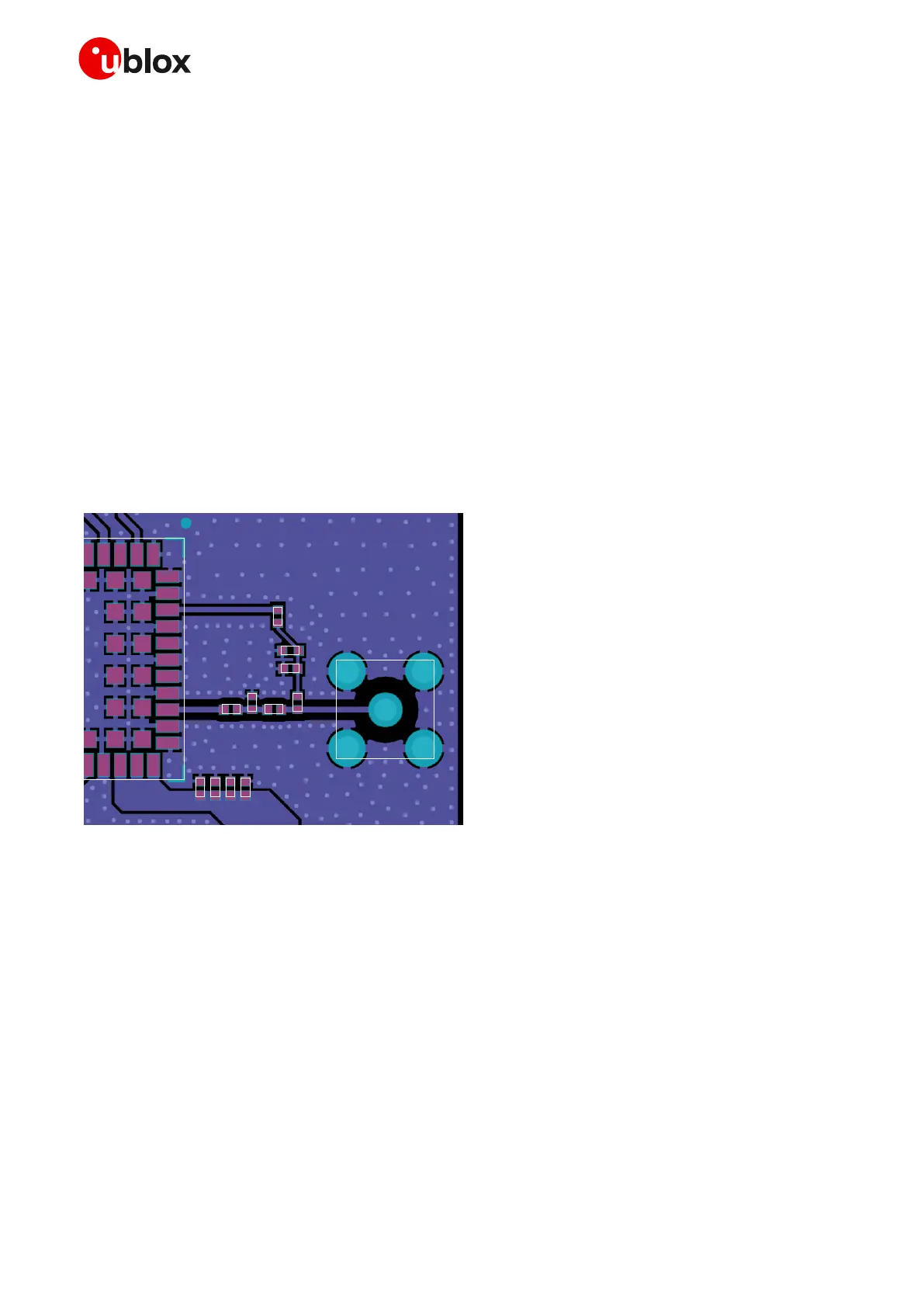

Figure 36: Suggested layout for antenna detection circuit on application board
