ZED-F9R - Application note
UBX-22035176 - R01 Contents Page 26 of 30
C1-Public

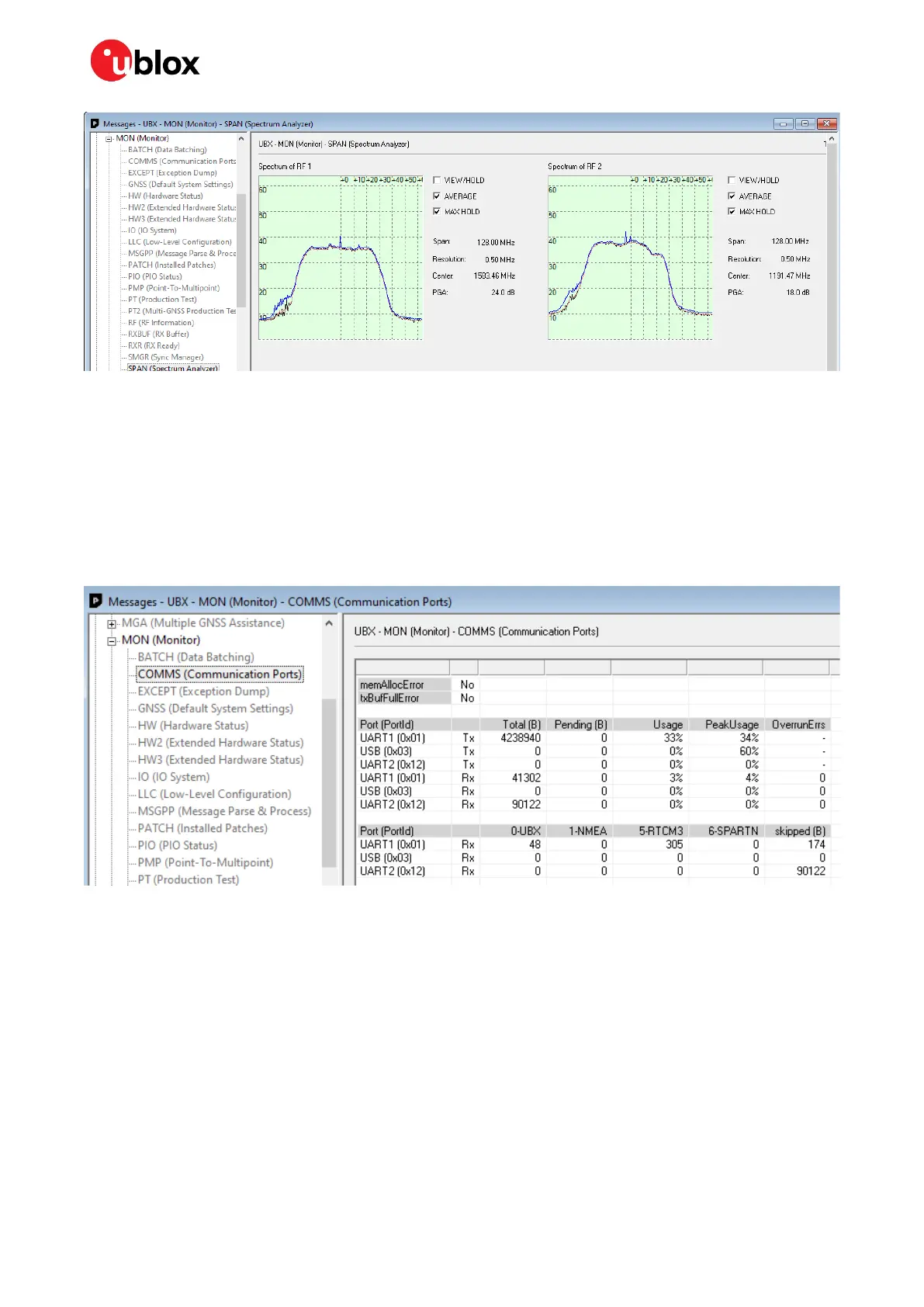

Figure 20: u-center UBX-MON-SPAN showing the spectrum at the L1 and L2 bands
A.4 Communications and protocols
One reason that a fixed ambiguity is not achieved may be the corrections not being received or used.
Figure 21 shows the UBX-MON-COMMS message used for monitoring the traffic at the
communication ports. When the receiver is outputting and getting corrections on UART1, the byte
counter should be increasing for both the transmit and receive direction. If the protocol byte counters
are not incrementing on the interface as expected, this could mean that either the protocol is disabled
on the interface or the baudrate is incorrect.
Figure 21: u-center UBX-MON-COMMS showing traffic count by interface and protocol
If the data is arriving, the messages that are being used are shown in UBX-RXM-COR. Below is an
example of SPARTN corrections being received. The “can handle”, “Used” and “Decrypted” shows that
a software handler exists, whether the message can be used and whether the message was
successfully decrypted.
