NOTE: Do not replace the One Series display module or pressure
sensor. Swapping these amongst devices will cause a mis-match
between the stored sensor calibration data and the pressure sensor.
For proper operation, the display module serial number must always
match the serial number inside the enclosure (See Figure 12).
These serial numbers must match for proper operation.
DISPLAY MODULE CALIBRATION
ACCEPTABLE SUPPLY VOLTAGES AND LOADS FOR 1XSWLL AND 1XSWHL
The graphs below provide a range of acceptable power supply voltages (in Volts) and series loads (in Ohms). This is useful when the One Series
is connected to non-standard PLC and DCS inputs or is connected in series with a relay or solenoid coil.
NOTE: If you need assistance with determining the compatibility of the One Series with your PLC, DCS, or relay, we can help. Please have the manu-
facturer's model number ready when you call us. In rare cases, when the series resistor value is too large and falls out of the Acceptable Range,
placing another resistor across the input will allow it to work. Please call +1 (617) 923-6977 (Inside Sales) for assistance.
0
2000
4000
6000
8000
10000
12000
14000
16000
18000
8 12 16 20 24 28 32 36 40 44 48
Rload (Max)
Rload (Min)
V
supply
R
load
(Max) R
Load
(Min)
8 1111 30
12 2593 70
16 4074 110
20 5556 150
24 7037 190
28 8519 230
32 10000 270
36 114 81 310
40 12963 350
44 14444 390
48 15926 430
V
supply
R
load
R
load
(Min) = (V
supply
- 5)/0.1*A
*De-rate 0.001A per C above 25°C
R
load
(Max) = (V
supply
- 5)/0.0027A
1XSWLL Allowable Voltage / Load Characteristics
V
supply
R
load
(Max) R
Load
(Min)
70 10000 600
90 13333 800
110 16667 1000
130 20000 1200
150 23333 1400
170 26667 1600
190 30000 1800
210 33333 2000
230 36667 2200
250 40000 2400
V
supply
R
load
R
load
(Min) = (V
supply
- 10) / 0.1A
De-rate 0.001A per °C above 25°C
R
load
(Max) = (V
supply
- 10) / 0.006A
1XSWHL Allowable Voltage / Load Characteristics

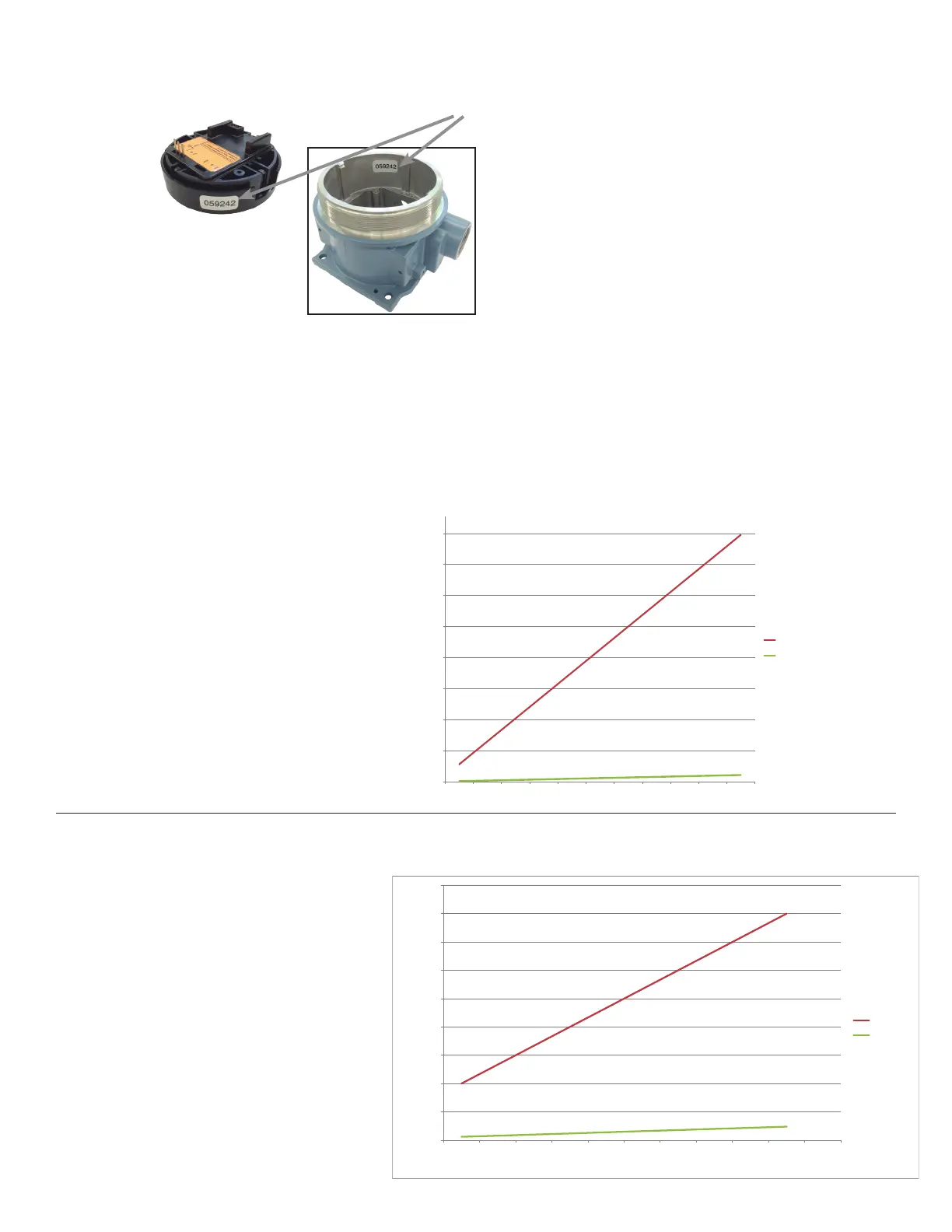

Figure 12
Graph 1
Graph 2
