UEi DM505 User Manual

6

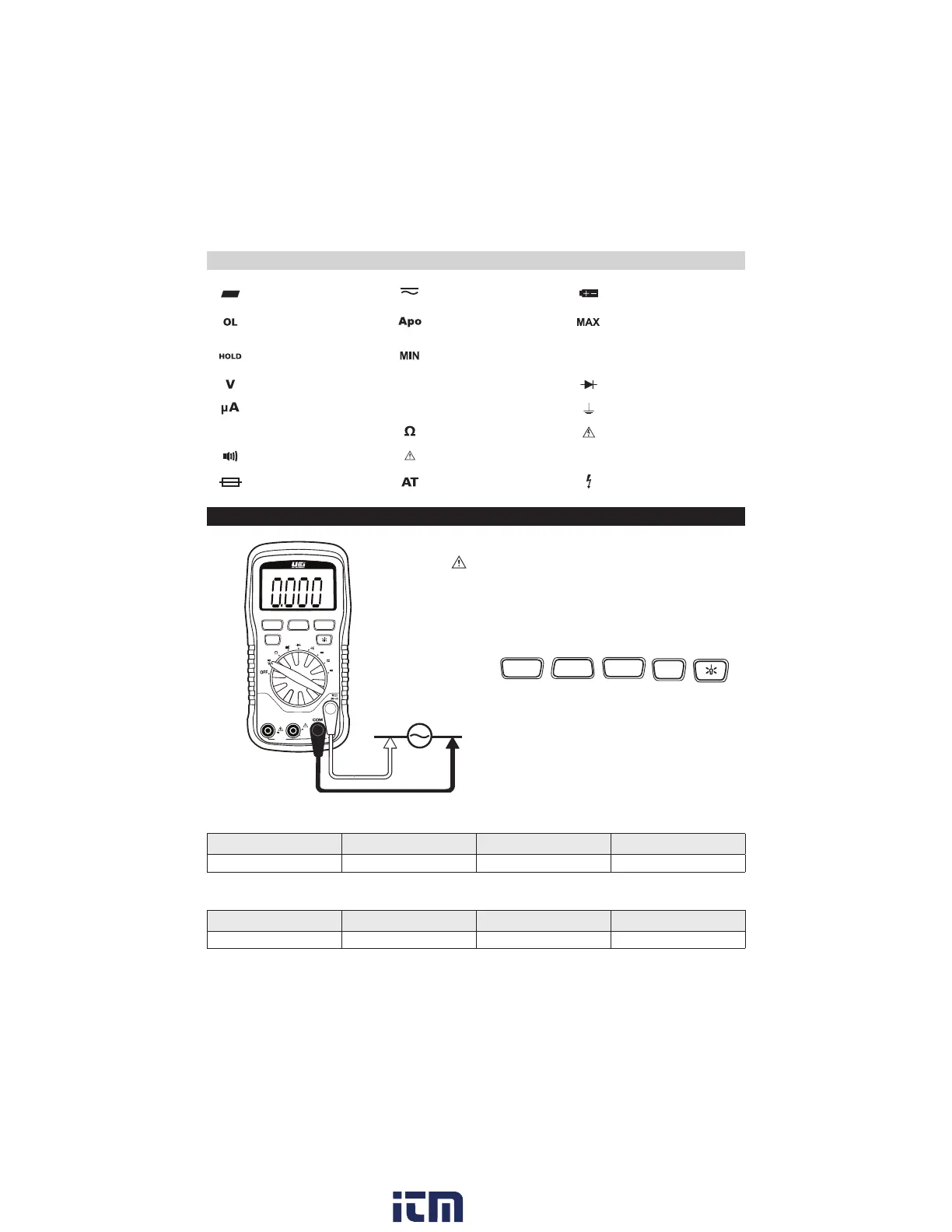

AC/DC Voltage: <1000V AC/DC
AC VOLTS
Ranges Accuracy Resolution Overload Protection
600 mV to 1000V ±(1.0% +3 dgts) 0.1 mV to 1V 1000V
Minimum sensitivity: 0.5V AC (auto selection mode), Frequency bandwidth: 400Hz
DC VOLTS
Ranges Accuracy Resolution Overload Protection
600 mV to 1000V ±(0.5% +3 dgts) 0.1 mV to 1V 1000V
Minimum sensitivity: 0.5V DC (auto selection mode)
WARNING
• Use CATIII rated Test leads or higher.
• Do not attempt to measure more than 1000V AC/DC.
• Do not exceed 25 volts AC or 60 volts DC – RMS at either the
common or multifunction input ports as measured from
earth ground.
Features:
RANGE
MIN/MAX
HOLD
SEL
RANGE
SEL
MIN/MAX HOLD
FAST
V
Apo
A
μA
mAμA
A
mA
10A
MAX
FUSED
400mA
MAX
FUSED
MAX
CAT III
600V
CAT II
1000V
DM505
V
Apo
AT
DM505
SYMBOLS
Negative A C/DC Voltage or Current Low Battery
Overload: Range Exceeded Auto power off Active
Maximum measured
value displayed
Hold/Capture Value
Minimum measured
value displayed
μF
Microfarad
Voltage
A
Amps Diode
Microamps mA milliamps Ground
nF
nano Farads Ohms/Resistance Dangerous Levels
Continuity Warning or Caution
Auto
Auto Selection
Fuse Auto-ranging High Voltage Indication
