UHPPOTE HBK-A01 - Wiring Diagram

POWER
+12V
GND
+12V
GND
NO
COM
NC
OPEN
PUSH
BELL
BELL
-
Fail-safe lock
Fail-secure lock
BELL
EXIT BUTTON
+
- +
+12V
GND
NO
COM
NC
OPEN
PUSH
BELL
BELL
+12V
GND
NO
COM
NC
PUSH
+ -
Fail-safe lock
+ -
EXIT BUTTON
BELL
Special Power Supply
12VDC
Fail-secure lock
6 Wiring Diagram

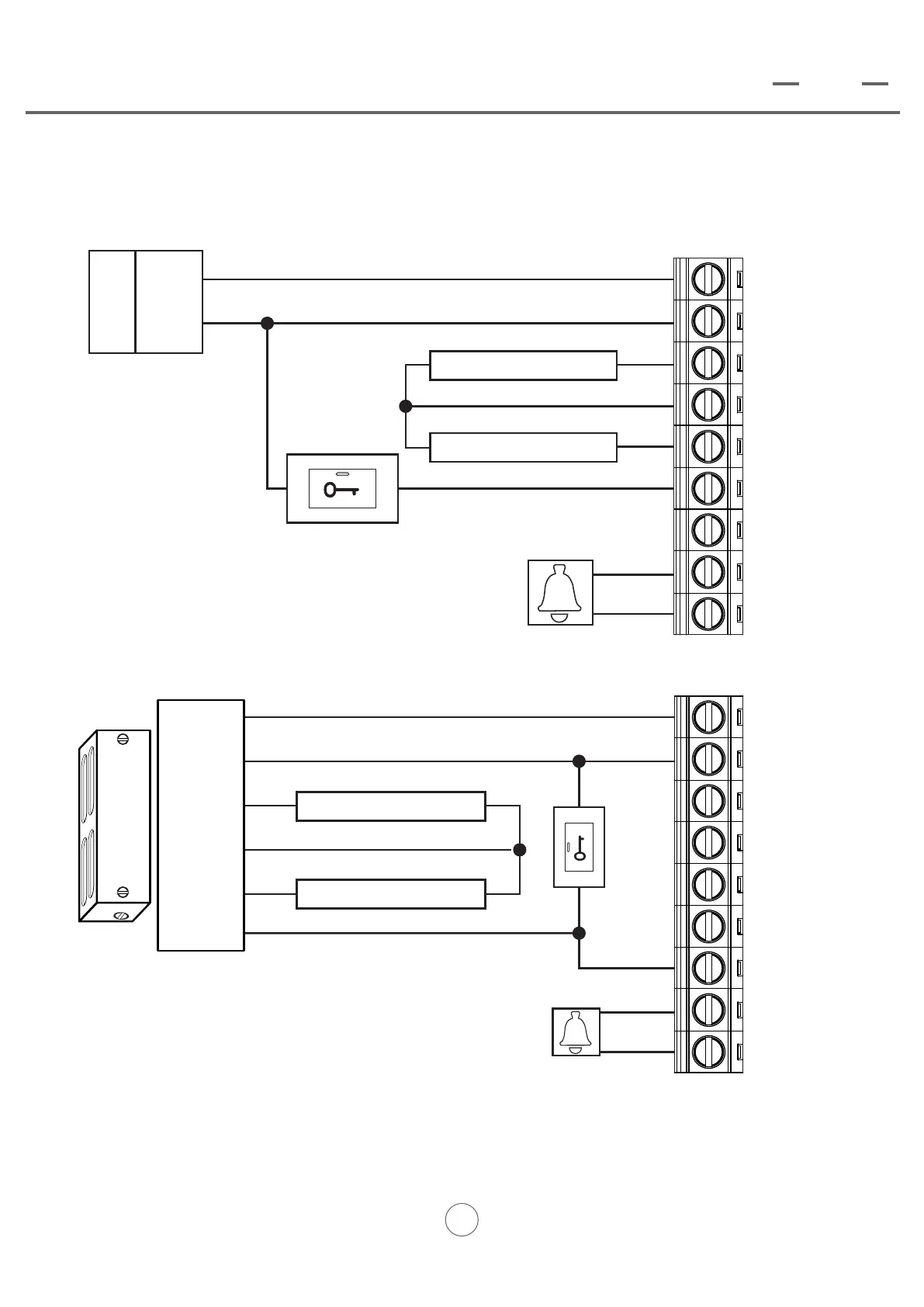

Common Power Supply Diagram:
Special Power Supply Diagram:
