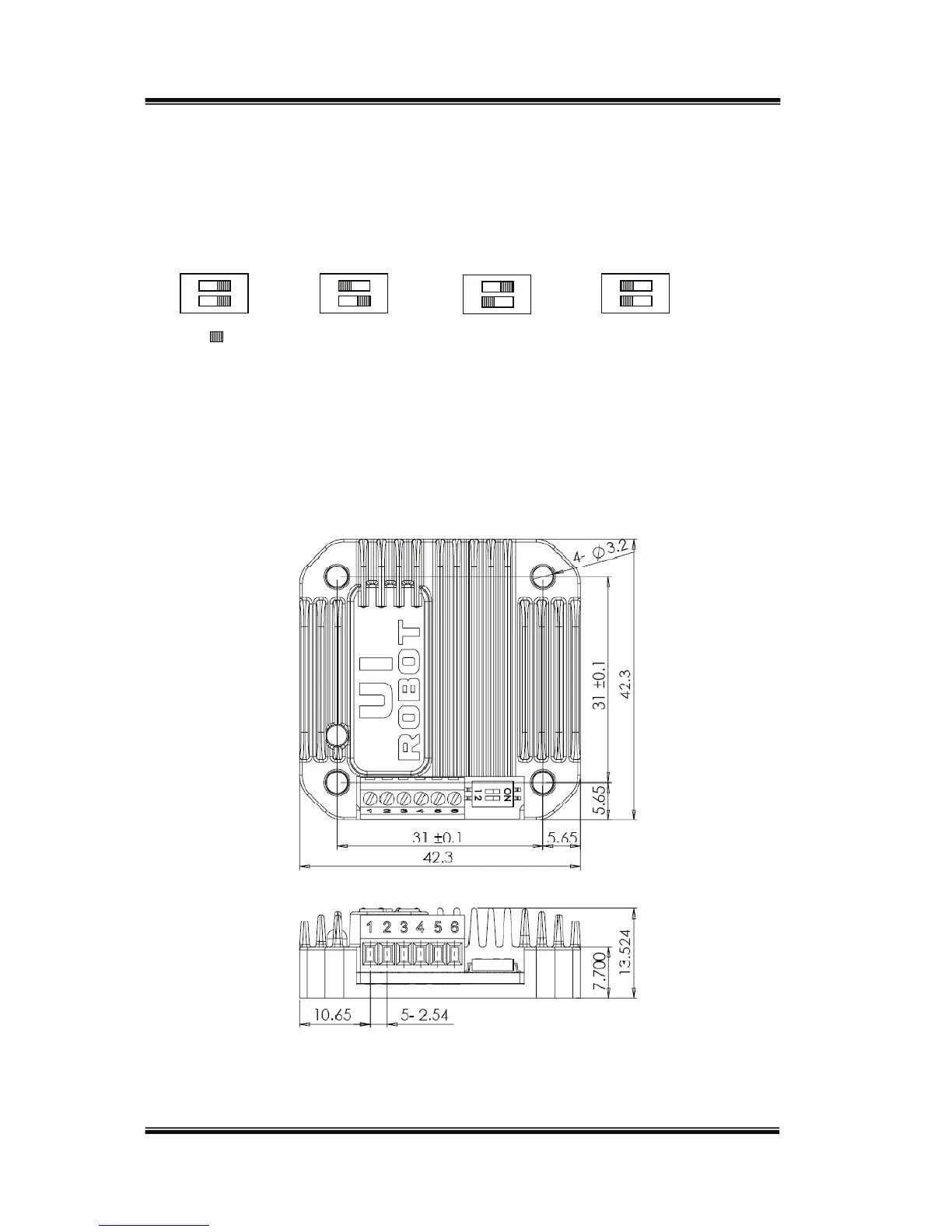

Set Micro Step Resolution
The micro step resolution is set by the DIP switch as shown in following figure.
UIM240xx controller can provide complete micro-stepping control at full-step, half-step,
quarter-step, and sixteenth-step resolutions.





Dimension
Unit：mm


















Actuator
1/4 Step
ON
1 2
1/16Step
ON
1 2
Hal
f
‐Step
ON
1 2
Full‐Step
ON
1 2
