UIrobot UIM24002 - Installation; Mounting the Controller


Page|9

UIM24002 / UIM24004 / UIM24008
UI Robot Technolo
gy
Co. LTD
M24020100321EN


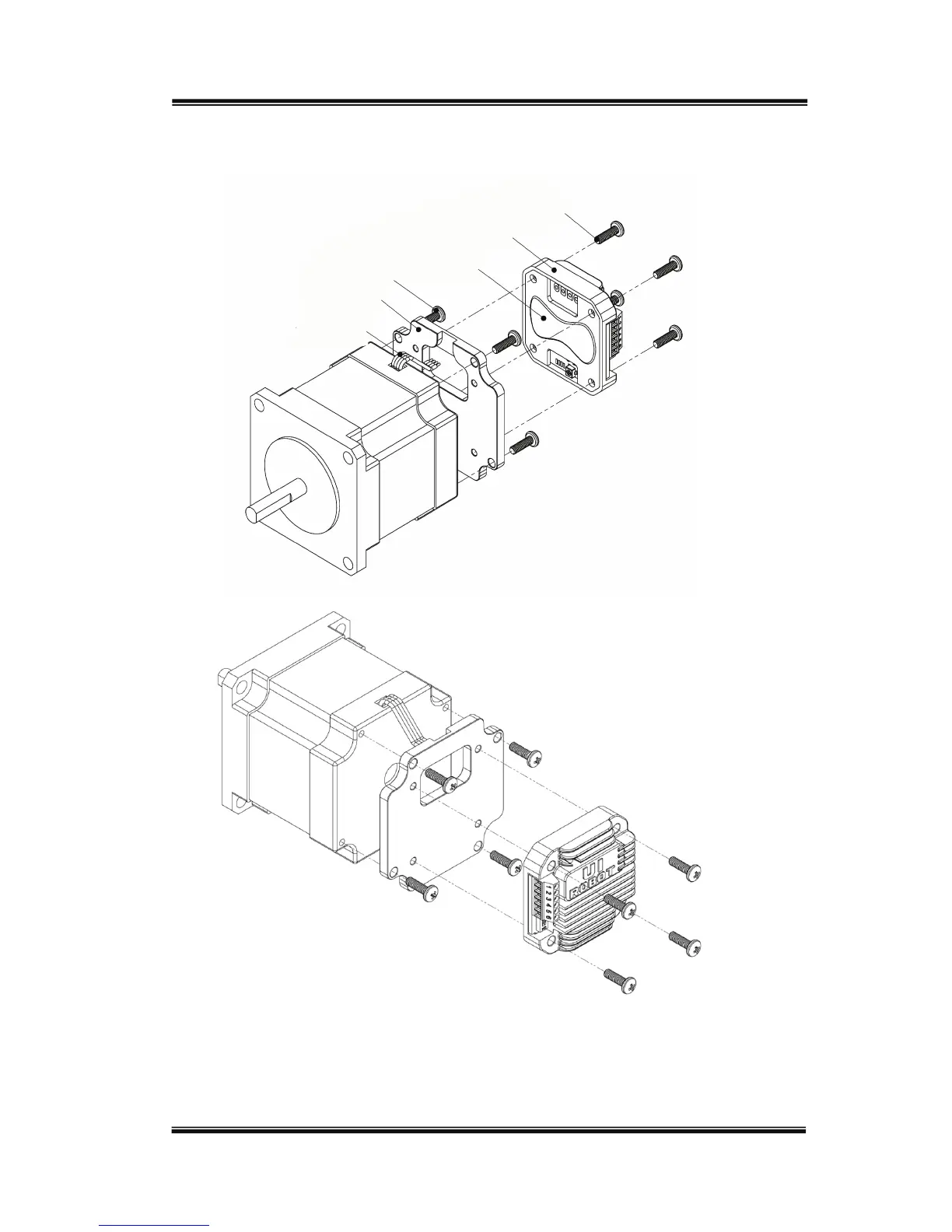

Installation of UIM240xx Controller






































4‐M3x10
UIMController
HeatSinkCompound
FlangeScrews
Flange
WindingLeads
(SoldertoController)
