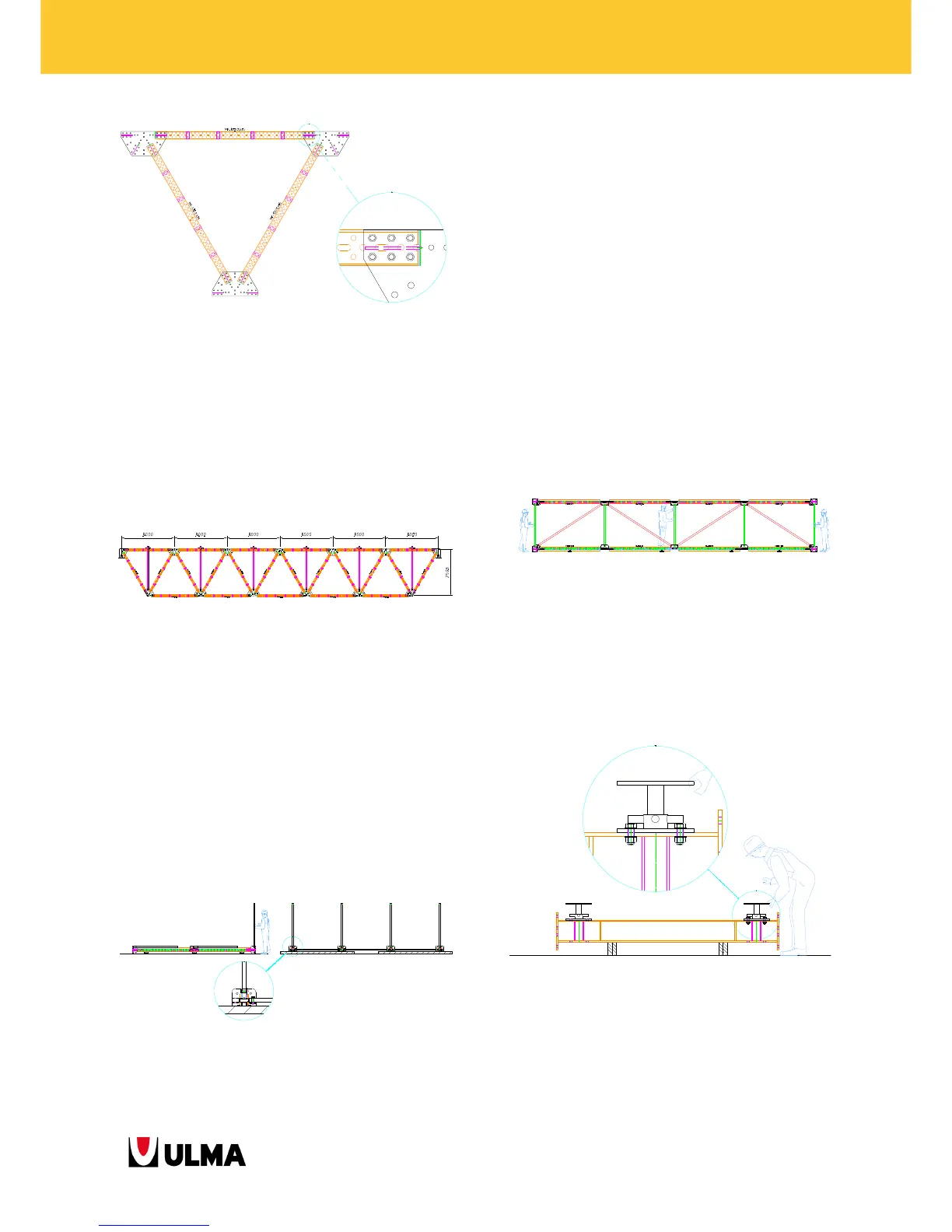

- If indicated in the assembly drawings, the V Bracing
Truss MK is assembled next. Connect it to the node
using the bolt M20x90 and to the waler using 2 bolts
M16x90. Insert the V Bracing Truss MK into the gap
between the waler UPN profiles and connect it to the
node of the opposite boom.
3.1.2. Joints and braces assembly. Diagonals
and horizontal braces on main axis.
- Place the U secondary axis joints on nodes and
walers of the main axis in direction of the secondary
axis and fasten with bolts M20x90.
- Connect the horizontal braces to the U secondary
axis joints with pins E20x70.
3.1.3. Bracing assembly. Diagonals and
horizontal braces assembly between
structures.
- Assemble another structure equal to the first by
following the steps described in 3.1.1.
- Lift the whole or part of the structure and place it
parallel to the first with the horizontal braces already
in place. Fasten the braces to the lifted structure with
pins E20x70.
- Assemble the diagonals to finish the bracing of the
module.
3.1.4. Bogie assembly
- By following the indications in the assembly
drawings, place the jack waler with jacks and wheels
fastened with bolts M24. Likewise, the jack walers
are connected to each other with bolts M24.
- Put the already assembled set on the wheels, and if
indicated in the assembly drawings, place more jack
walers perpendicular to the previous ones, and fasten
with bolts M24.
