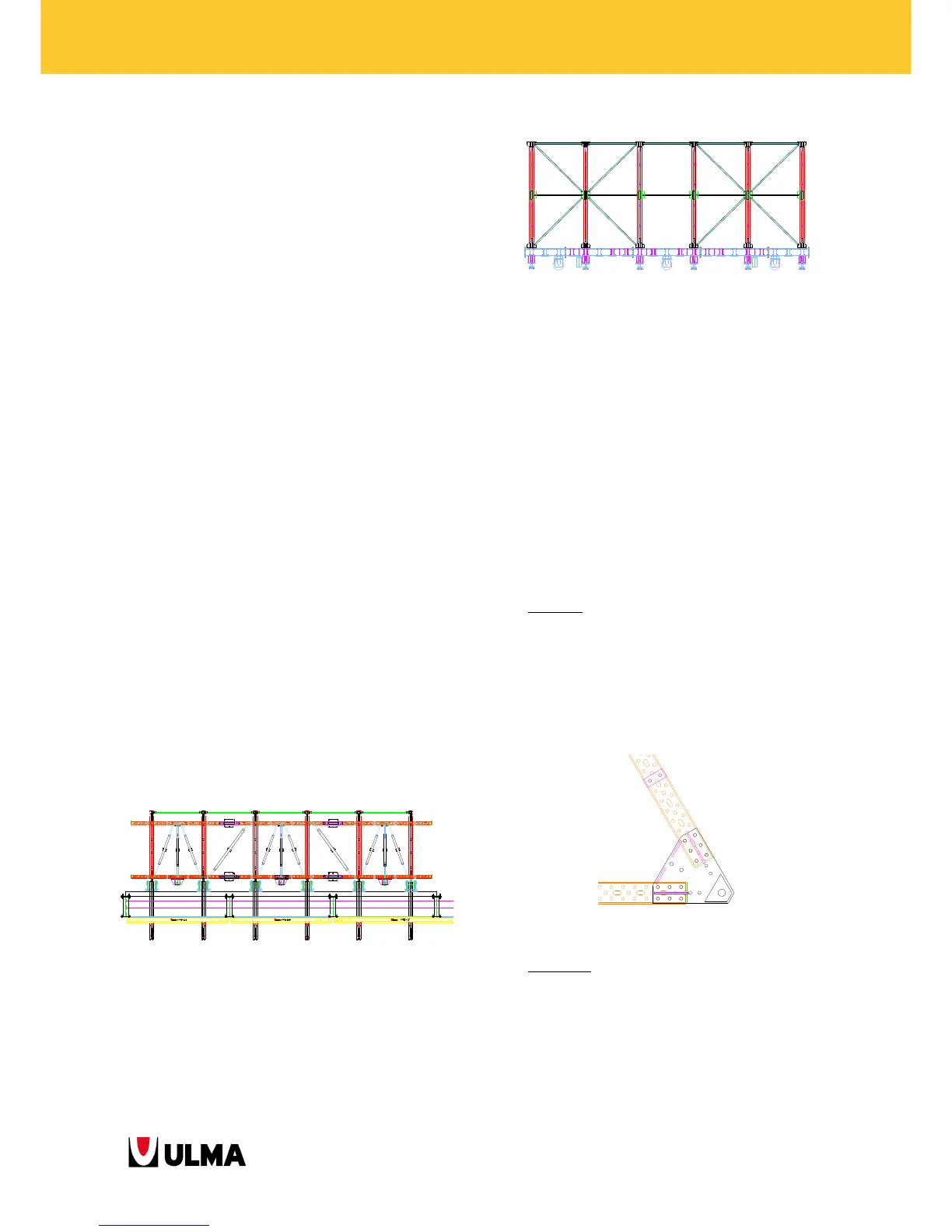

4.1.4. Forward-moving structures
For the forward-moving of heavy structures, an
auxiliary structure is required.
Such complementary or secondary structure (bogie) is
placed perpendicular to the main structure easing the
forward-moving of the overall structure consisting of
several main structures.
The bogie must bear the loads during the forward-
moving of the overall structure but does not
necessarily have to bear the loads during concrete
placement or working stage.
It can be rather simple consisting of jack walers
joined together, and supporting the structure and
jacks on one side and the rolling elements on the
other.
The bogie can be reinforced with elements of the MK
system. This might apply when the jack walers alone
are not able to bear the weight of the overall
structure or to provide extra stability to it, as in the
case of very tall structures.
Forward
ForwardForward
Forward-
--
-moving structure in a MK deck flange form carrier
moving structure in a MK deck flange form carriermoving structure in a MK deck flange form carrier
moving structure in a MK deck flange form carrier
Forward
ForwardForward
Forward-
--
-moving structure in a
moving structure in a moving structure in a
moving structure in a MK cut
MK cutMK cut
MK cut-
--
-and
andand
and-
--
-cover tunnel form
cover tunnel form cover tunnel form
cover tunnel form
carrier
carriercarrier
carrier
4.2.
4.2.4.2.
4.2. STRUCTURE LAYOUTS
STRUCTURE LAYOUTS STRUCTURE LAYOUTS
STRUCTURE LAYOUTS
4.2.1. High load-bearing capacity structure
There are various structures of this kind in all sorts of
applications, and inside them, there are different
node connection types depending on the area
required to be solved.
 60º joint
Used at the ends which require a termination of the
structure at 60º. Moreover useful when a pre-
assembled structure (or tower) shall be quickly joined
to an already existing one.
 120º joint
Used at the ends which require a termination of the
structure at 120º. Moreover useful when a pre-
assembled structure (or tower) shall be quickly joined
to an already existing one.
MK - 3625 MK - 3625 MK - 3625
