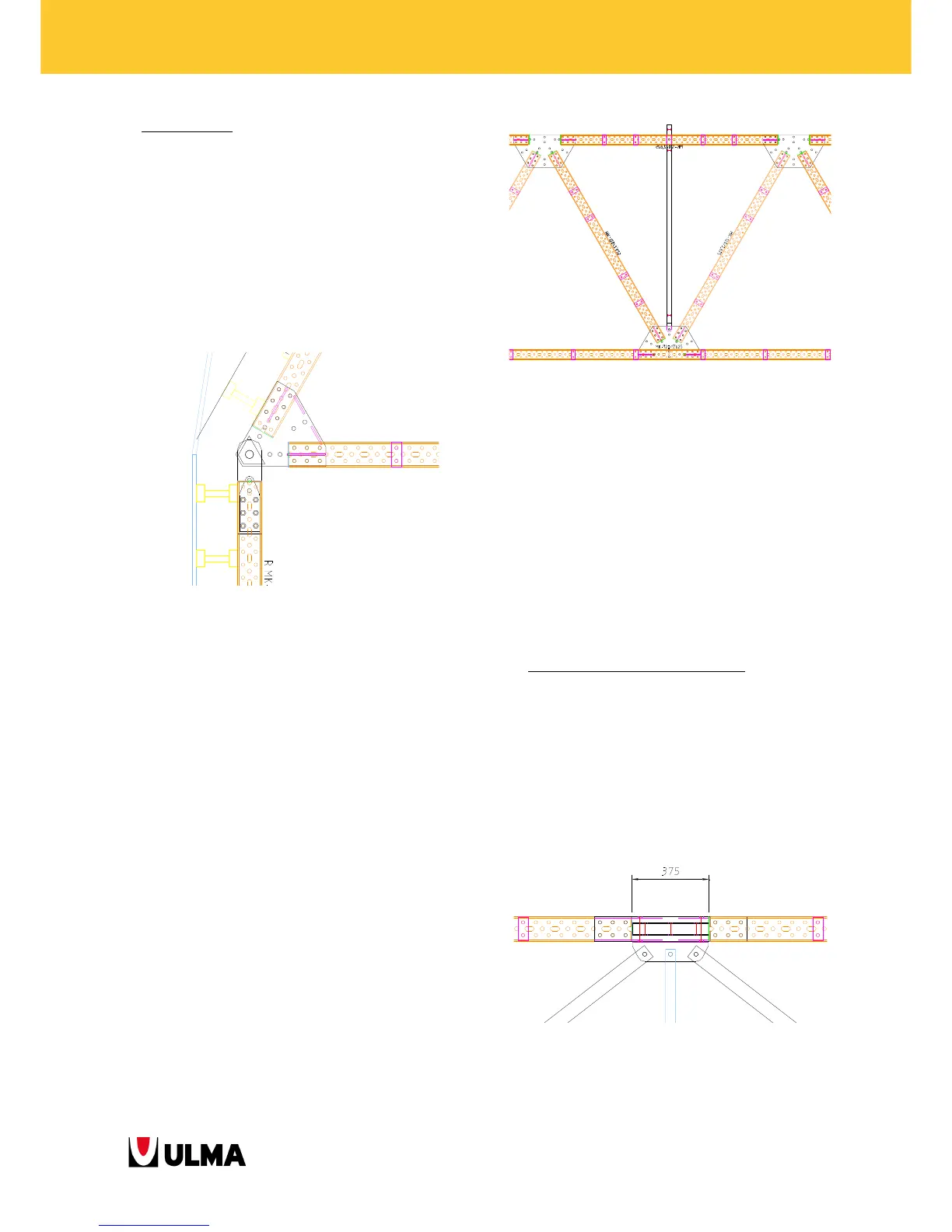

 Joint with pins
It is used to join two structures quickly and
effectively. These are usually end joints which require
a male end element on one structure and a female
on the other. There are several parts fulfilling this
function.
The joint is fastened with a conical tip pin D40.
4.2.2. Reinforced main axis structure
For the reinforcement of the waler centre or a
specific part of the structure of high load-bearing
capacity structures, the V Bracing Truss MK is used.
This part only serves to reinforce the most common
triangular structure layout of 3 m between nodes. If
the distance between nodes is bigger or smaller,
push-pull props E and heads are used.
The joints are fastened with pins E20x70.
4.2.3. Medium load-bearing capacity structure
As mentioned beforehand, there are various
structures of this kind in all sorts of applications, and
inside them, there are different node connection
types depending on the area required to be solved.
 Longitudinal joints between walers
There are two types of longitudinal joints for walers
offering different additional features:
- The first waler joint can be stiffened with diagonals
and braced in the secondary axis. It moreover allows
of a 375 mm gap between the walers.
