6

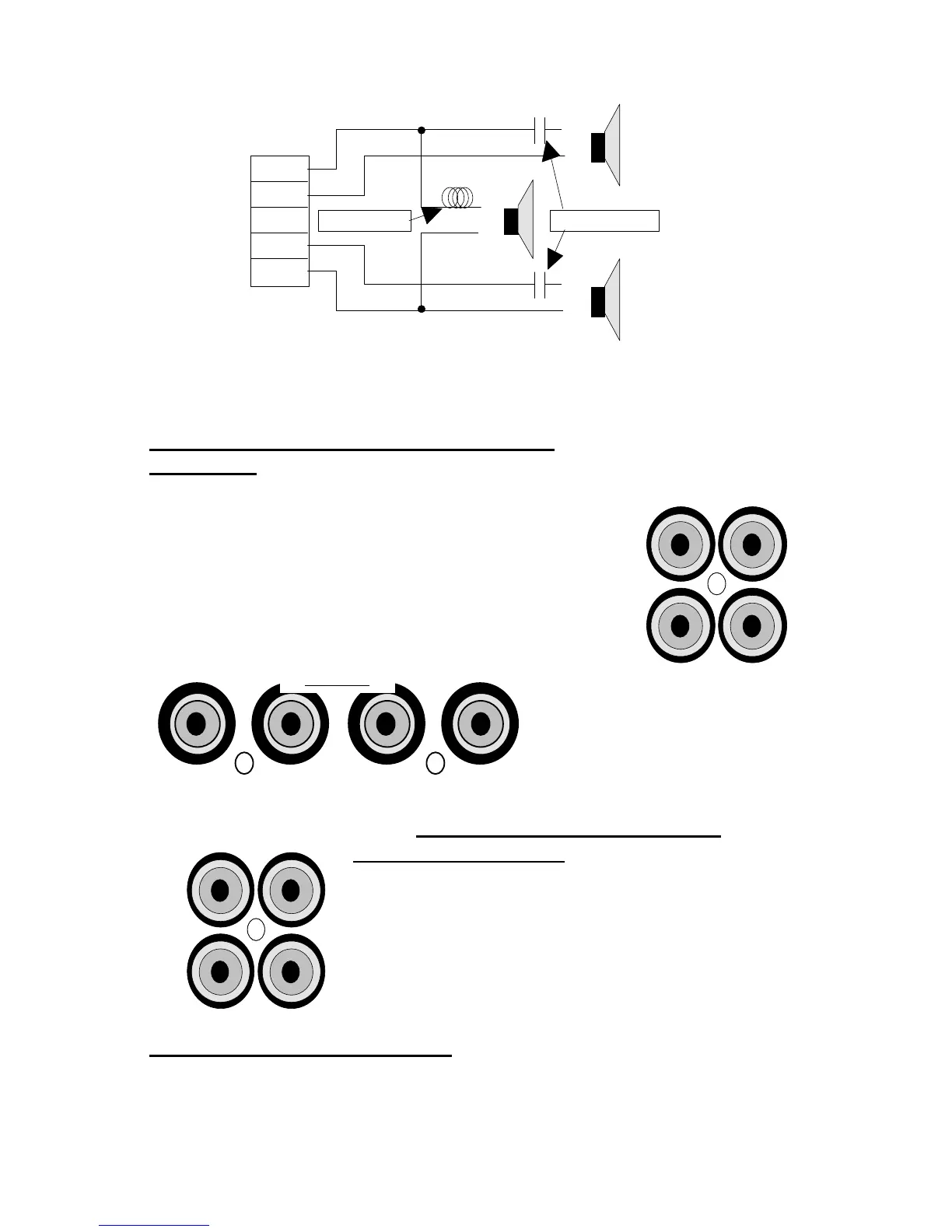

with the mono speaker as shown in the diagram. Be sure the inductor is
rated to handle the power of your amplifier.
1.5 Installation- Input Connections
Low Level, High Impedance, Gold Plated RCA
Input Jacks-
For connecting to a source providing preamp level
outputs. Use heavy duty RCA patch cords designed for
mobile applications . Run the patch cables carefully,
maintaining as much distance as possible from power,
speaker, and accessory wiring. Make sure the RCA
plugs fit tightly for a secure connection.
UHC2UHC2- High Impedance, Gold Plated RCA
Input and Output Jacks- The UHC2UHC2 features a
pair of preamplifier output jacks to provide an
input signal to another amplifier or component in
the system. The output signal is preamplified to
maintain signal quality.
UHC5UHC5- SUBWOOFER CHANNEL
The UHC5 subwoofer channel is connected internally to the RCA input
jacks. There are no separate inputs for the subwoofer channels.
(+)
(
-
)
(+)
(
-
)
(+)
(
-
)
L(+)
L (-)
R(+)
R (-)
CAPACITORSINDUCTOR
R
L
INPUT
FRONT REAR
R
L
R L
INPUT
R L
INPUT
R
L
LINE
INPUT
LINE
OUTPUT
