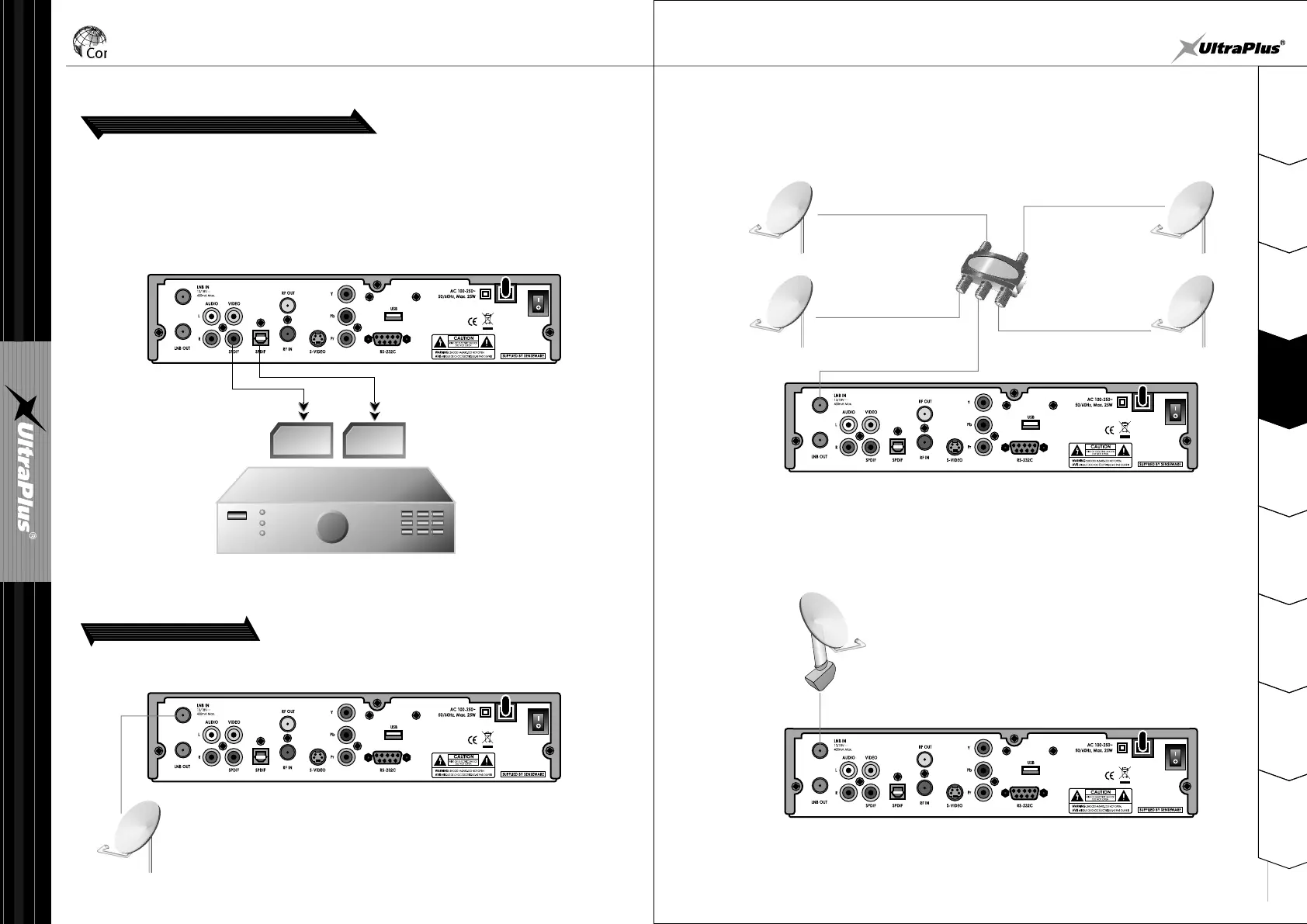

3. Receiver to Digital Audio Equipment
SPDIF
(Coaxial)
Digital Audio Equipment
SPDIF
(Optic)
To get better quality audio, you can use digital audio via coaxial or optic cable.
If you have a digital audio equipment, connect SPDIF to Digital audio input of
the equipment.(Coaxial or Optic)
Connect other jacks to the appropriate jacks of TV or VCR refers to above section,
1. Connect to TV and 2. Connect to TV and VCR.
Using DiSEqC switch : Connect the cable of DiSEqC switch to LNB IN.
DiSEqC switch
Using DiSEqC motor : Connect the cable of DiSEqC motor to LNB IN.
SATELLITE DISH
With DiSEqC motor
DISH
DISH
DISH
DISH
DISH
4. Connecting to Dish
Using Single DISH : Connect the Satellite Antenna cable to LNB IN.
