UDP3305S Series Programmable DC Power Supply User Manual

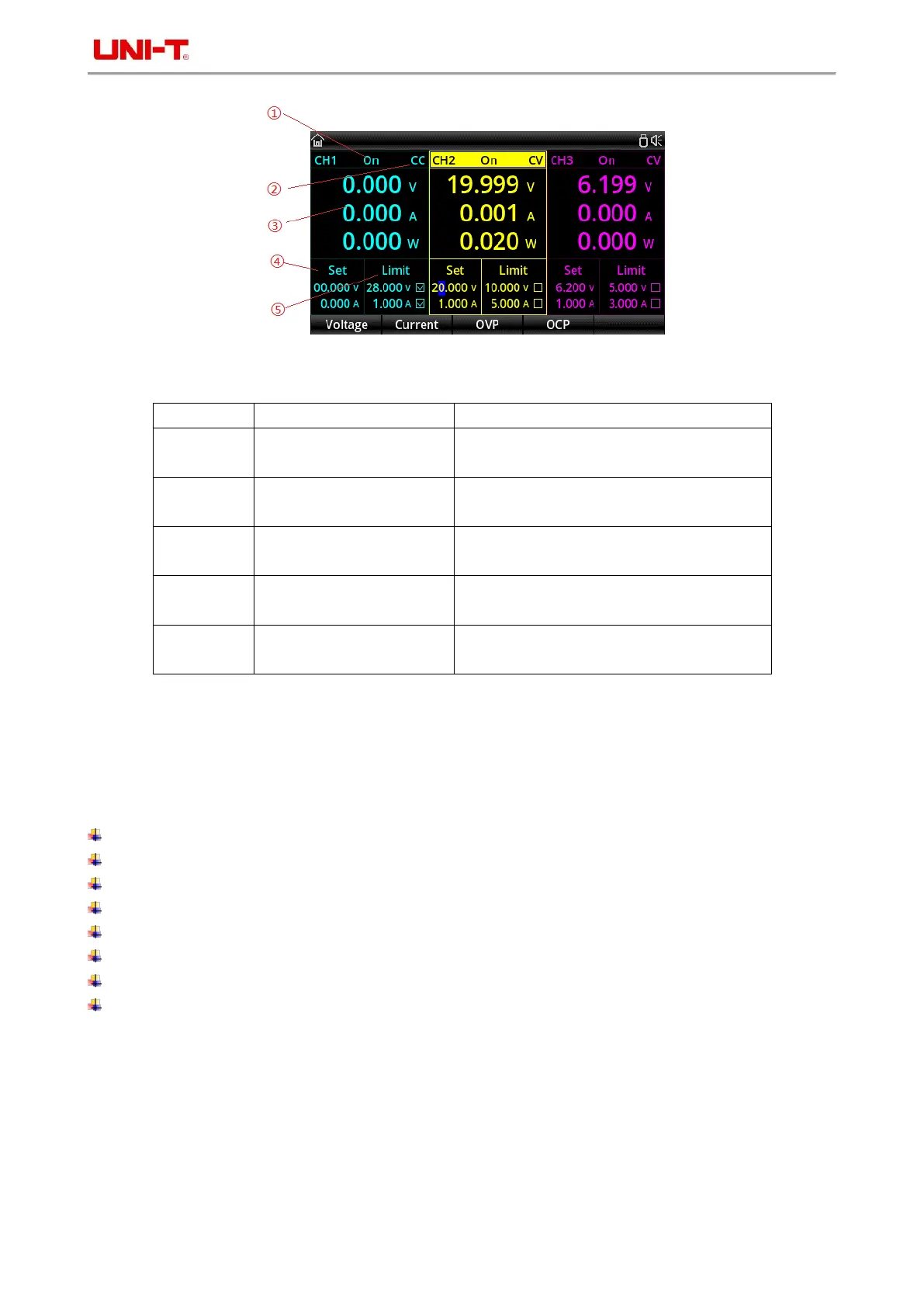

3.3.2 Explanation
NO.
Name
Explanation
①
Channel output status
ON/OFF
②
Channel output mode
CV/CC mode
③
Output voltage/current
/power
Display the actual voltage/current/ power
④
Voltage and current setting
window
Voltage and current setting
⑤
Voltage and current limit
setting window
Overvoltage and overcurrent protection
setting values
4 Front Panel Operations
This chapter includes:
Constant Voltage Output
Constant Current Output
Power Supply Series and Parallel Connections
List Mode and Delayer
Advanced Functions
Display Setting
Store and Recall
System Settings
4.1 Constant Voltage Output
UDP3305S series power supply provides two output modes: constant voltage output (CV) and constant current
output (CC). In CV mode, the output voltage equals the voltage setting value and the output current is determined
by the load. In CC mode, the output current equals the current setting value and the output voltage is determined
by the load (When the power supply setting limit current value is less than the current value consumed by the load,
