UNI-T UPO1000X Series

Service Manual UPO1000X Series
Instruments.uni-trend.com
30 / 31
1
Display Screen
HD screen
2
Silicone Key
Key and keyboard to realize man-machine interaction
3
Keyboard Module
Include keyboard and FPC cable
4
Front Module
Fixed mainboard, display screen, keyboard module
5
Mainboard
Core board
Rear Module

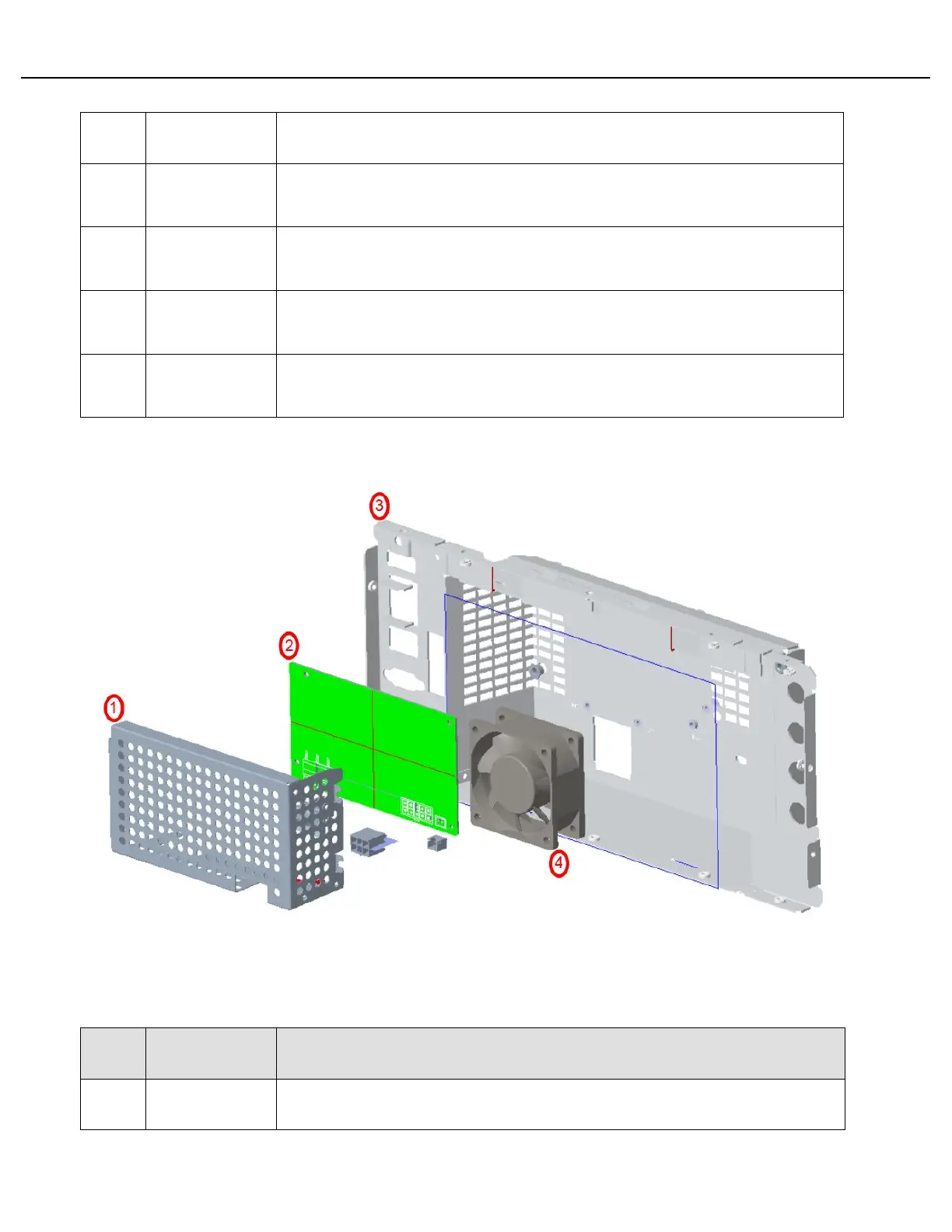

Figure 5 Exploded View of Rear Panel with Power and Fan
Table 6 Components of Rear Panel
No.
Parts’ Name
Description
1
Power Protective
Cover
Prevent personnel from electric shock
