UT131 Palm Size Multimeter
-15-

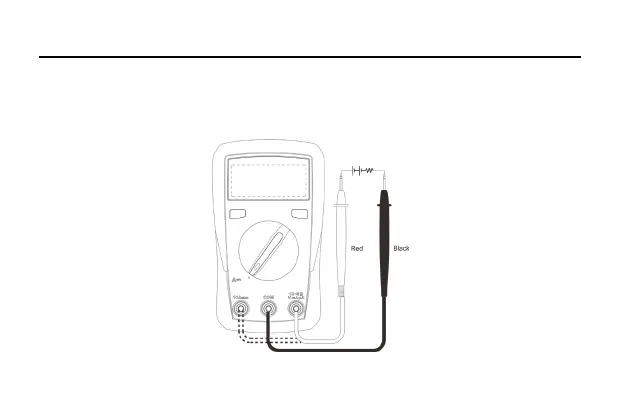

6. DC Measurement (see Figure 3)
1) Switch the dial to DC test.
2) Insert the black test lead into the COM jack, the red test lead into the “VΩmA” jack. Connect
test leads with the tested circuit in series.
Figure 3
