UT219PV User Manual
19 / 27
maximum range.
● To avoid damage to the Clamp Meter and personal injury, please switch off all powers of the
measured circuit and discharge all capacitors thoroughly before measurement, especially the
capacitor with high voltage.
● Please disconnect the test leads from the measured circuit after all measurement operations are
completed.

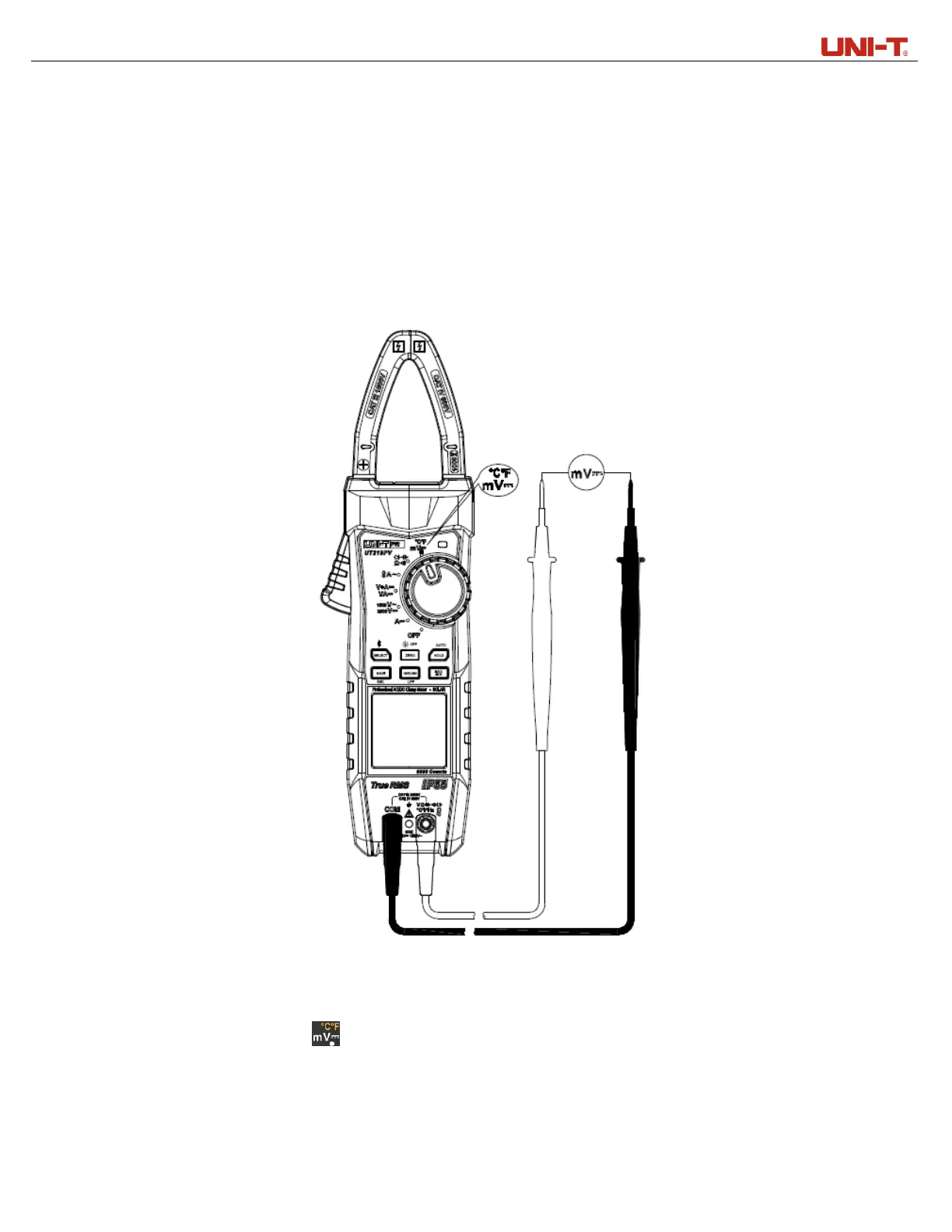

8. DC voltage (mV) measurement (Figure 11)
Figure 11
1) Connect the red test lead to “V” terminal and black to “COM”.
2) Set the rotary switch to “ ”, short press the SELECT button to switch to DCmV measurement
mode, then connect (in parallel) the test leads with the source or load to be measured.
3) Read the measured voltage from the LCD.
