UNI-T UT71E User Manual

G. Measuring Frequency / Duty Cycle

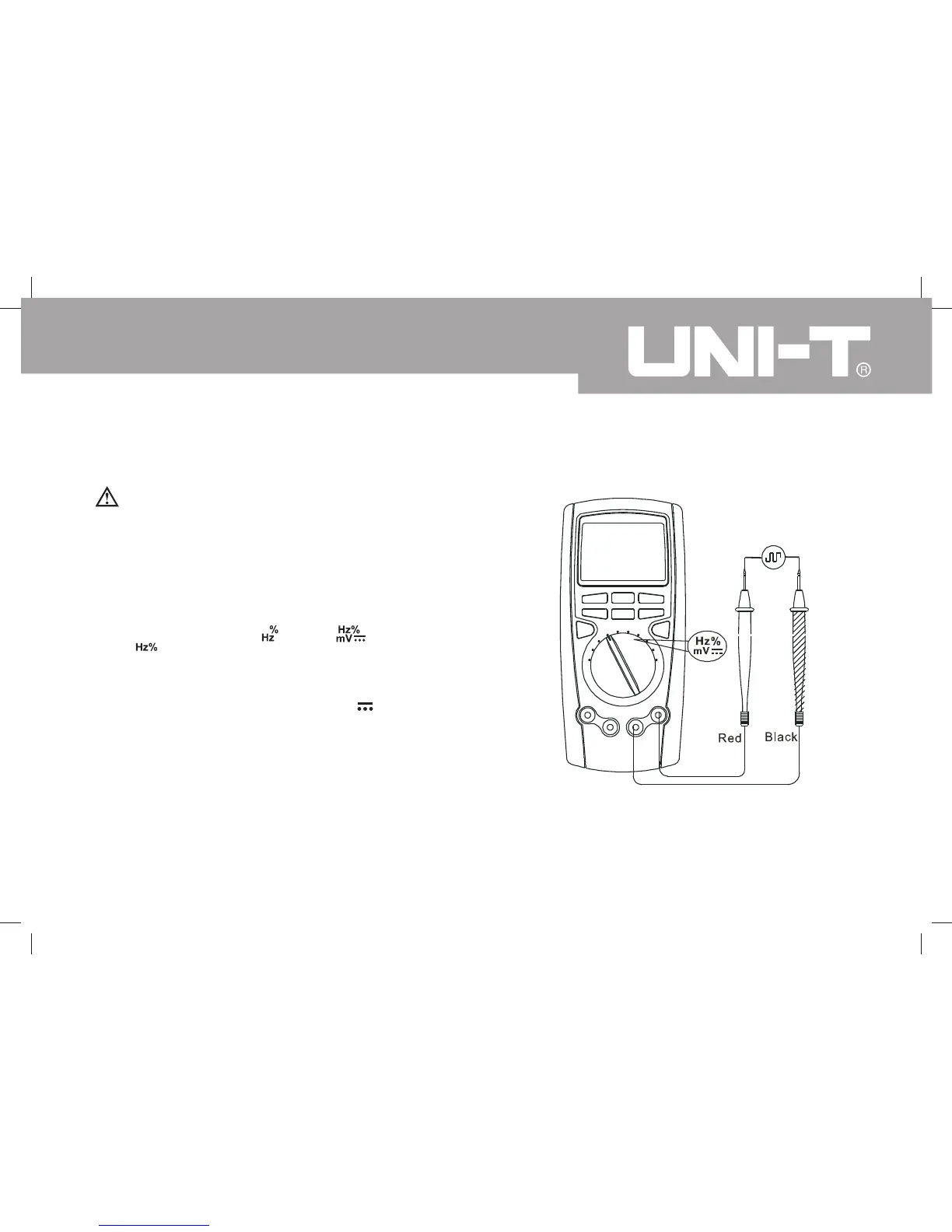

Figure 3-7. Frequency / Duty Cycle Measurement
41
Model UT71A/B/C/D/E: OPERATING MANUAL
Warning
To avoid harms to you, please do not attempt to input
voltage higher than 30V rms.
To measure frequency and duty cycle, connect the
Meter as Figure 3-7 and do the following:
Insert the red test lead into the Hz terminal and
the black test lead into the COM terminal.
Set the rotary switch to (UT71A), (UT71B/C/D)
or (UT71E) and press BLUE button to select
the Hz measurement mode for frequency
measurement or % for duty cycle measurement.
The BLUE button cycles among , frequency
and duty cycle for UT71C and UT71E.
Connect the test leads across with the object being
measured.
The measured value shows on the primary display.
1.
2.
3.
mV
ºC ºF

UNI-T UT71E Specifications

General

Data hold	Yes
Product type	Digital multimeter
Frequency range	0.04 - 40000 kHz
AC current range	0.4 - 10 A
AC voltage range	4 - 1000 V
DC voltage range	0.4 - 1000 V
Capacitance range	40 - 40000 nF
Statistic function	Maximum, Minimum
Basic accuracy (frequency)	0.01%+8
Basic accuracy (DC current)	0.08%+8
Basic accuracy (DC voltage)	0.025%+5
Basic accuracy (resistance)	0.3%+8
Basic accuracy (capacitance)	1%+20
Temperature measurement range	-40 - 1000 °C
Dimensions (WxDxH)	93 x 40 x 200 mm
Battery voltage	9 V

Weight and Dimensions

Weight	384 g
