UTD1000 User Manual

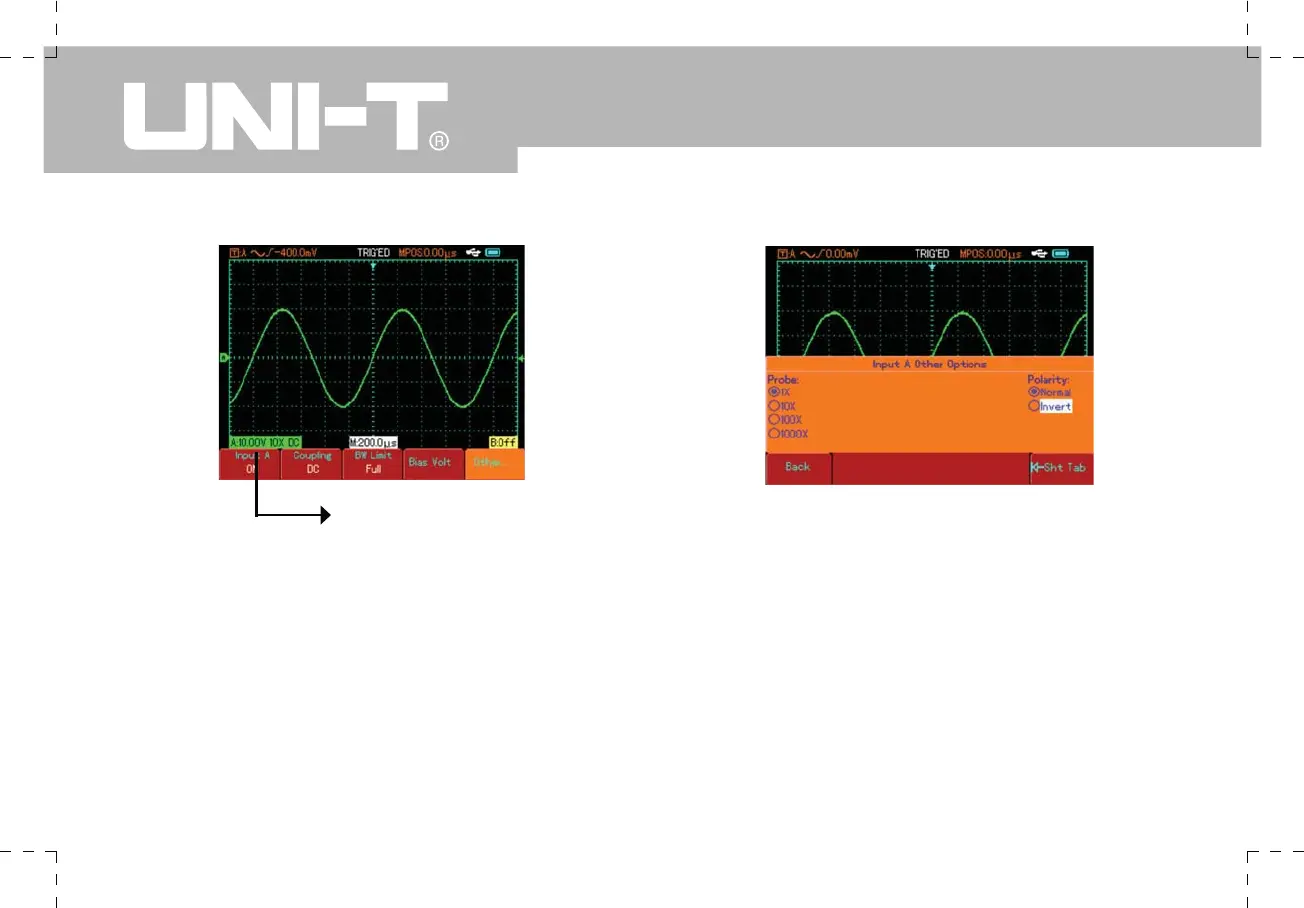

Changes in vertical range
Figure 2-12 Changes in vertical range
5. Setting the waveform polarity
Inverted waveform : This indicates the signal is 180°
inverted in relation to the channel ground level. The
example below shows the setup for signal inversion and
the display for inverted signal. Press [A] to turn Channel
A on, then press [F5]. Select “Others” and select
inverted polarity, as shown in Figure 2-13.
Figure 2-13 Inversion setup
Press the jog dial once to confirm, then press the jog
dial again to close the menu. Signal display is as shown
below.
