UNI-T UTD1202C


UTD1000 User Manual

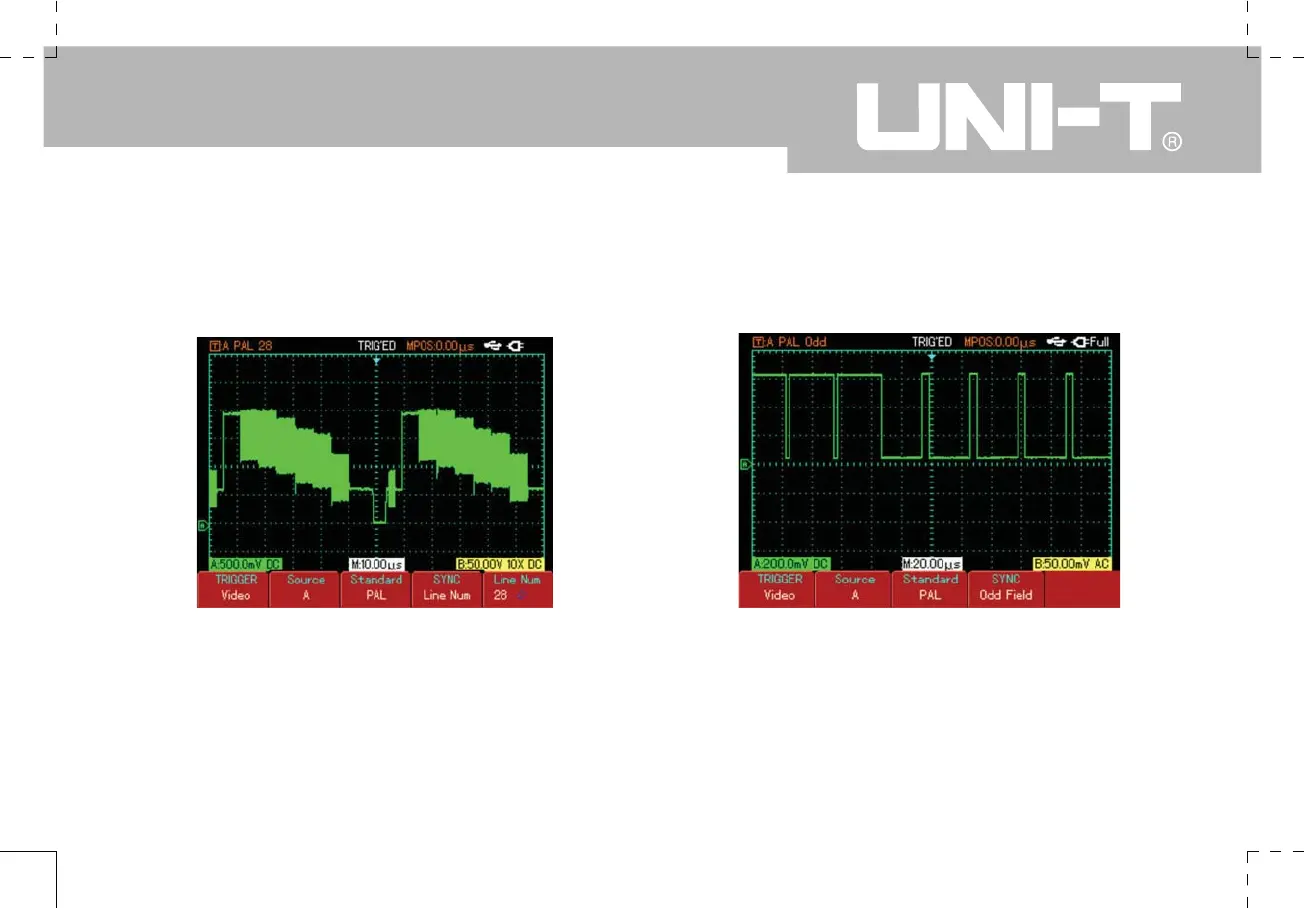

When PAL is selected for standard format and synchronization mode is “specified line”, you will see a screen display
as shown in Figure 2-17. When synchronization mode is “odd field”, you will see a screen display as shown in Figure
2-18.
Figure 2-17 Video trigger : line synchronization Figure 2-18 Video trigger : field synchronization
