Removing the rear cover assembly
The following procedure describes the removal and replacement of the rear cover assembly.
prerequisites:
• To prevent electrostatic damage to components, wear a properly grounded antistatic wrist and foot
strap during installation, and use an antistatic mat in a tested antistatic environment.
• Remove the rear cover.
Steps:

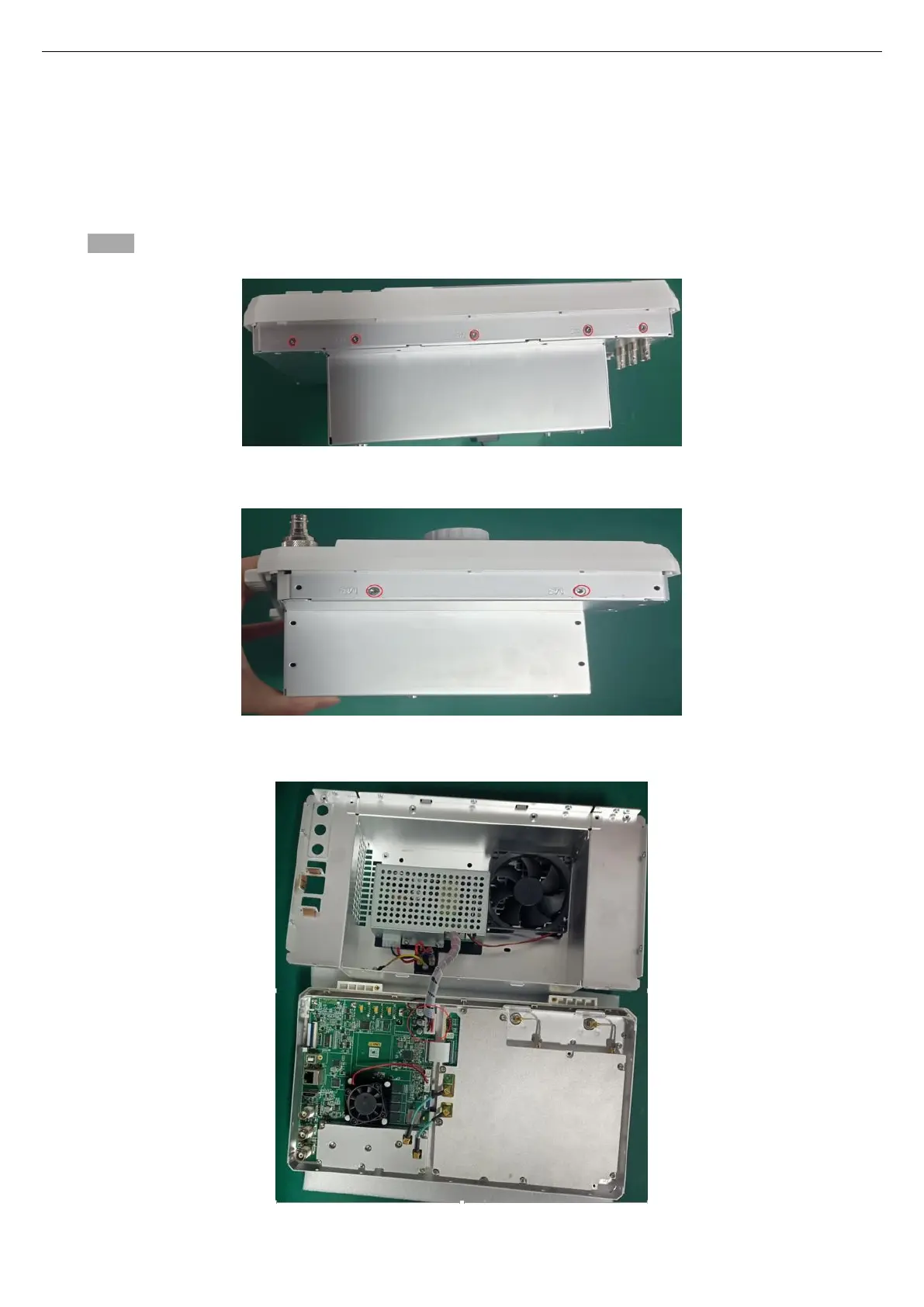

1. Use a T10 Torx screwdriver to remove the 10 upper and lower screws, as shown in the figure below:
2. Use a T10 Torque screwdriver to remove the 4 screws on the left and right sides, as shown in the figure
below:
2. Place the device face down on the cushion, carefully lift up the rear cover assembly, and remove the
connecting wire connecting the front cover assembly and the rear cover assembly, as shown in the
figure below:
To Next Page
