UNI EV Series - View drawing; List of parts

Operating and mounting manual (translation)
EV / EVF
_______________________________________________________________________________________________________
220.100.091-05 Page 18 /21 Version: 06/2017
TM 4474

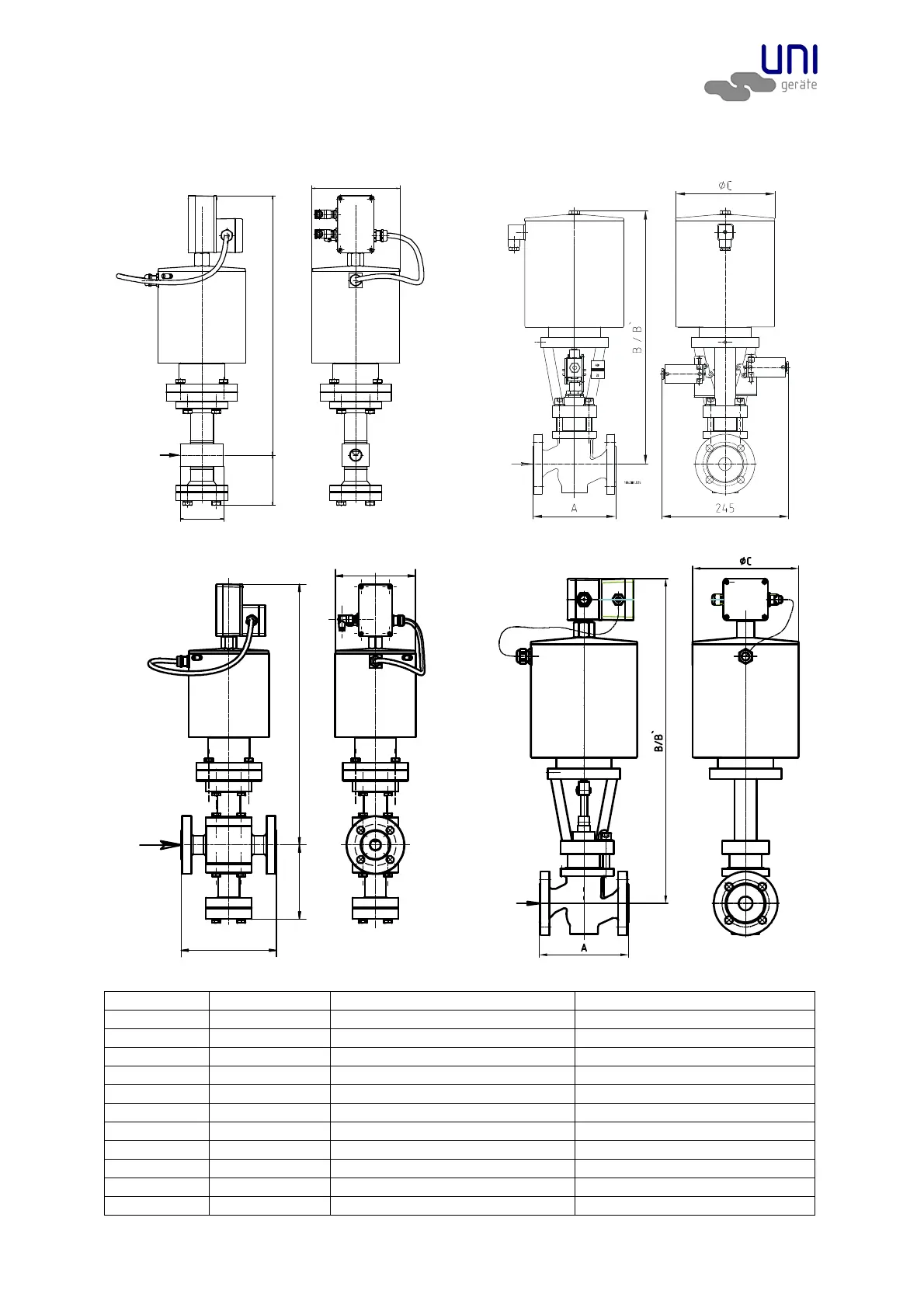

11.2 View drawing
Fig. 1 100-EVF….(G1/2 – G3/4) Fig. 2 5/10/25/40-EV(F)…N.. (DN15 – DN50)
Fig. 5 100-EVF..N.. (DN25) Fig. 6 40-EVF…NH..(DN15, DN25)
11.3 List of parts
Pos./ Item Stück/ Qty. Benennung Description
097 1 Endschalteranbau Limit switch mounting
100 1 Ventilgehäuse Valve chamber
106 1 Gehäuseoberteil Upper part of housing
108/x 1 Gehäuseflansch Housing flange
110/x 1 Distanzstück Spacer
115 1 Dichtplatte Sealing board
200/1 1 Ventilteller Valve disk
Pos./ Item Stück/ Qty. Benennung Description
200/2 1 Ventilteller Valve disk
200/3 1 Ventilteller Valve disk
201 1 Tellerscheibe Disc plate
