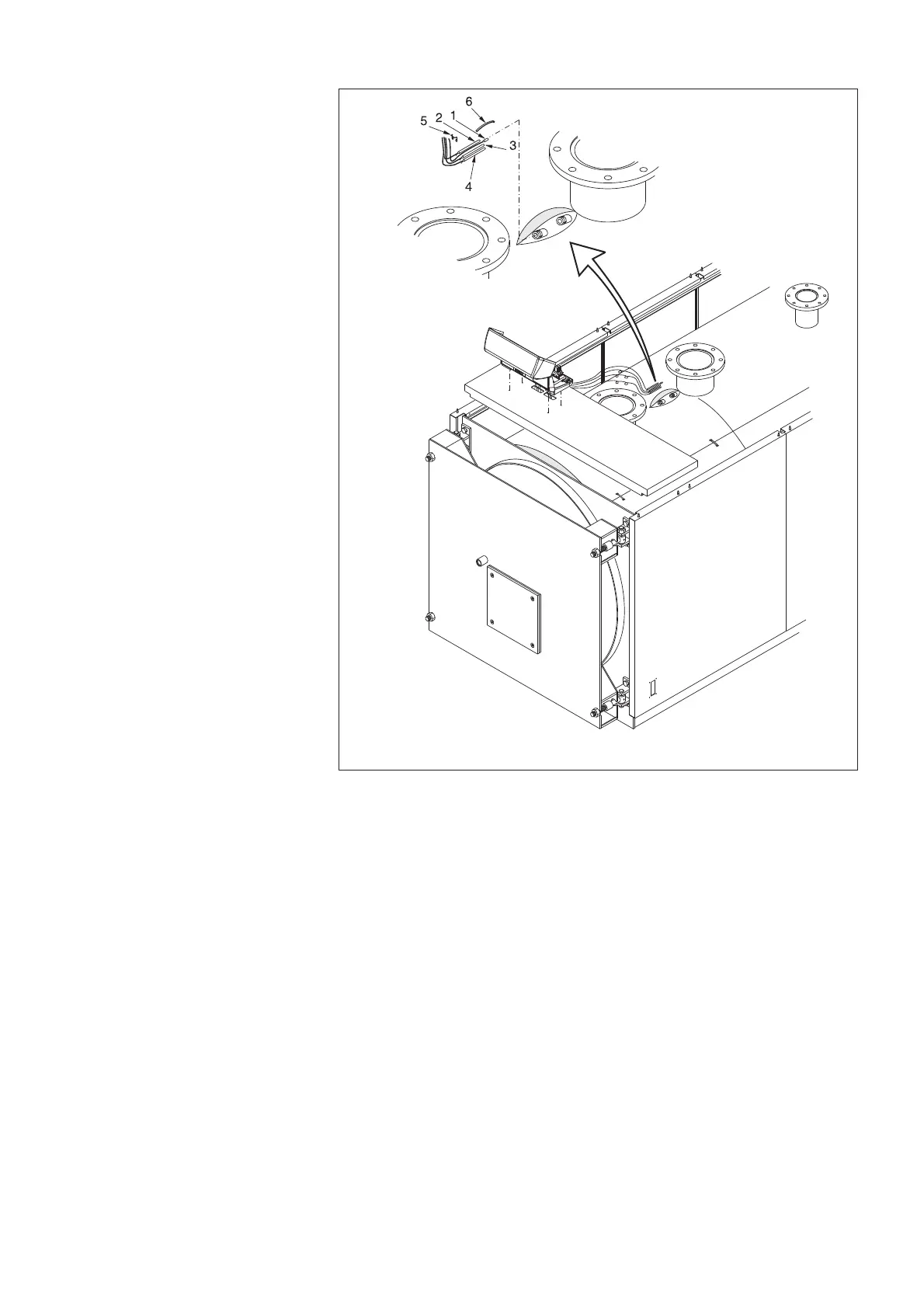

fig. 28
Sequence of bulbs introduction
Introduce the sensors in the upper bulb
holder(s) in the following sequence (Ref. to fig.
28):
- thermometer (1)
- working thermostat (2)
- high limit thermostat (3)
- minimum thermostat (4).
We recommend that the introduction of the
sensors is made up to bottom of the bulb
holder(s).
To get a better contact introduce also the
arcuated spring (6) and secure the capillaries
with the special clip (5).
1 Thermometer bulb
2 Working thermostat bulb
3 High limit thermostat bulb
4 Minimum thermostat bulb
5 Bulb retaining clip
6 Contact spring
