9
Installation info
fig. 3
EVE 05 CTN 24 F
EVE 05 CTFS 24 F
fig. 2
CF G R
1
M
3
4
2
5
6
7
9
10
11
8
12
13
14
15
16
17
18
19
20
21
1
3
4
2
5
6
7
8
9
10
11
12
13
CF G
14
15
16
17
18
19
20
21
22
23
RM

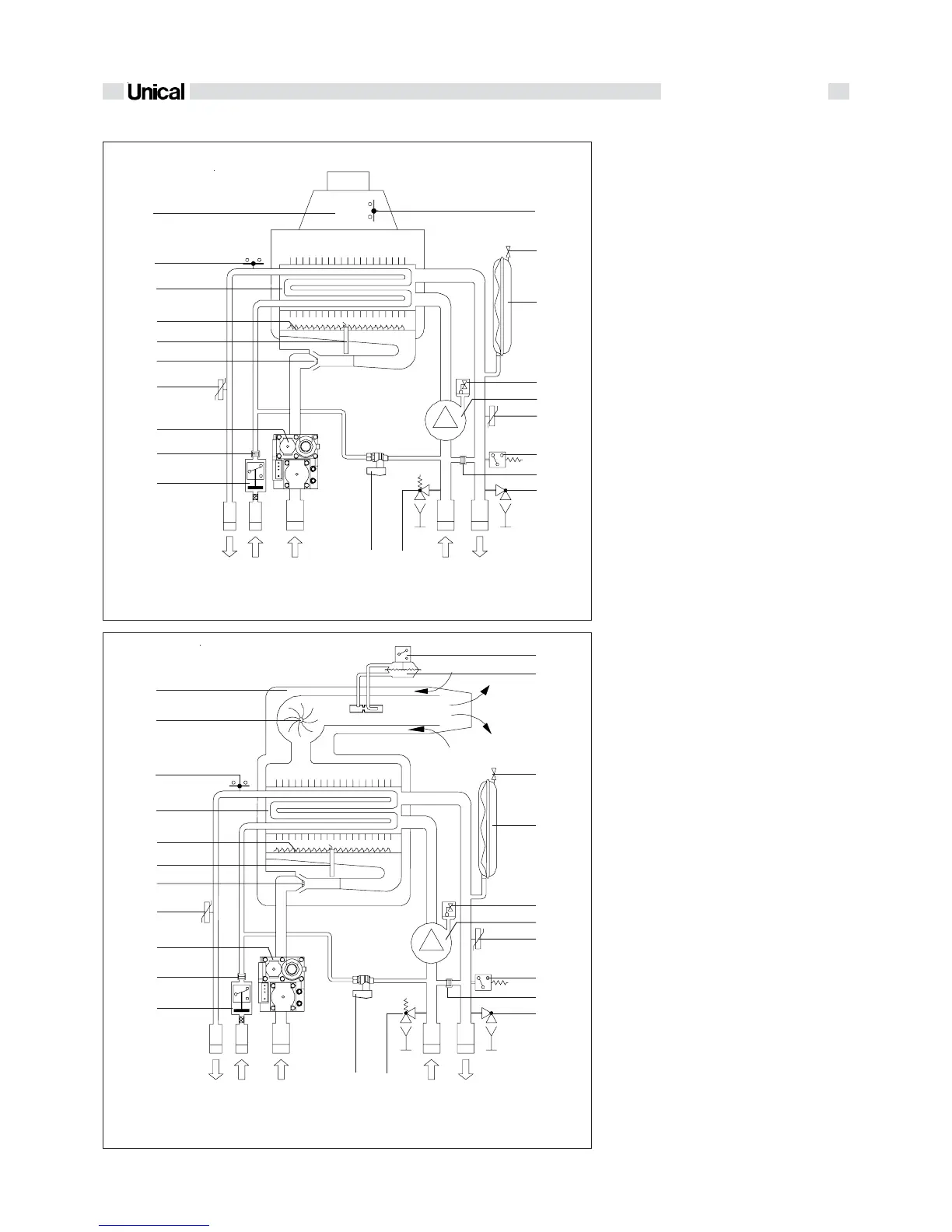

1.3 - HYDRAULIC CIRCUIT
1 Flow switch - Cold water filter
2 D.H.W. flow restrictor
3 Gas valve
4 D.H.W. temperature sensor
5 Burner nozzles
6 Ionisation/Ignition electrode
7 Burner
8 Bithermal heat exchanger
9 H.L. thermostat
10 Flue gas manifold/down-draught
diverter
11 Flue gas anti-spillage thermostat
12 Expansion vessel inflating valve
13 Expansion vessel
14 Automatic air vent
15 Circulating pump
16 C.H. temperature sensor
17 Minimum water pressure switch
18 By-pass (unadjustable)
19 Boiler drain cock
20 Heating circuit safety valve
21 Filling valve
C D.H.W. outlet
F D.C.W. inlet
G Gas inlet
R C.H. system return
M C.H. system flow
1 Flow switch - Cold water filter
2 D.H.W. flow restrictor
3 Gas valve
4 D.H.W. temperature sensor
5 Burner nozzles
6 Ionisation/Ignition electrode
7 Burner
8 Bithermal heat exchanger
9 H.L. thermostat
10 Flue gas extractor fan
11 Air/flue coaxial duct
12 Micro-switch on flue gas pressure
switch
13 Flue gas pressure switch
14 Expansion vessel inflating valve
15 Expansion vessel
16 Automatic air vent
17 Circulating pump
18 C.H. temperature sensor
19 Minimum water pressure switch
20 By-pass (unadjustable)
21 Boiler drain cock
22 Heating circuit safety valve
23 Filling valve
C D.H.W. outlet
F D.C.W. inlet
G Gas inlet
R C.H. system return
M C.H. system flow
