Installation Instructions
ENGLISH
C52x C52
C52
NOT ALLOWED C52
TOTAL LENGTH (LA intake + L Exhaust)
DOUBLE Ø80 DOUBLE Ø60
COLLECTOR COLLECTOR
WITH WITHOUT WITH WITH-
OUT
FROM
[m]
A
[m]
UP TO
[m]
FROM
[m]
A
[m]
UP TO
[m]
1 + 1 4 + 4
25
(13A+12S)
NA NA NA

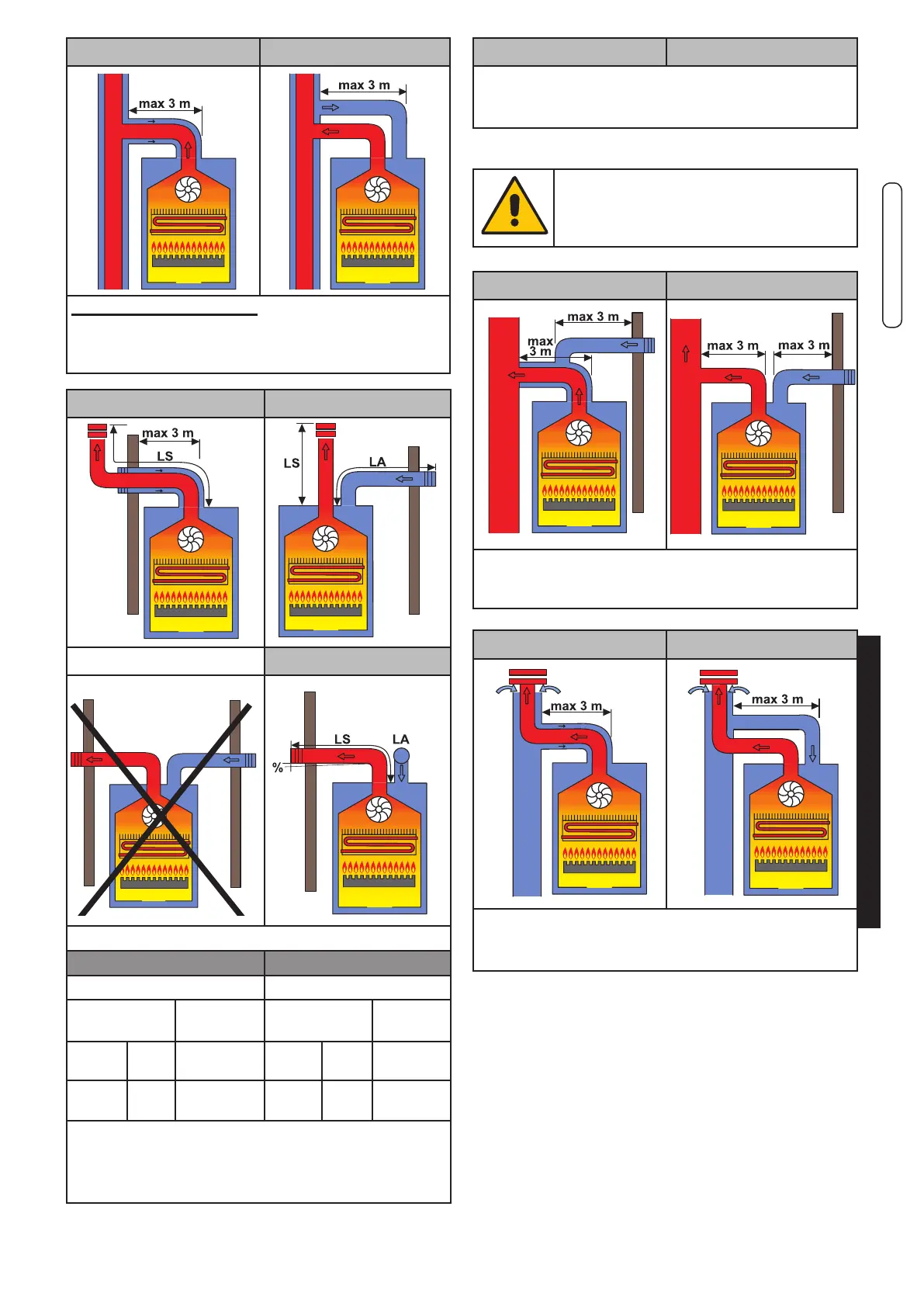

Separate combustion air intake and combustion
products evacuation pipes.
These pipes can discharge into areas with different
pressure.
C42x C42
Collective chimney ue system, consisting of two
pipes, one for combustion air intake and the other
one for combustion products evacuation, coaxial
or double.
C62x C62
Boiler intended for connection to a combustion air
intake and combustion products evacuation system,
approved and sold separately.
C82x C82
Connection to a terminal for combustion air intake
and ue gas exhaust via a single or collective
chimney.
C92x C92
Air / ue gas through concentric pipes in the boiler
room and single pipes in the chimney (combustion
air with counterlow in the chimney)
ATTENTION:
The ue must comply with standards
in force
