9
REAR COMBINATION LAMP
Check the rear combination lamps (turn signals, tail
lamps, brake lamp, back-up lamp, and rear reector) for
a damaged or contaminated lens.
10

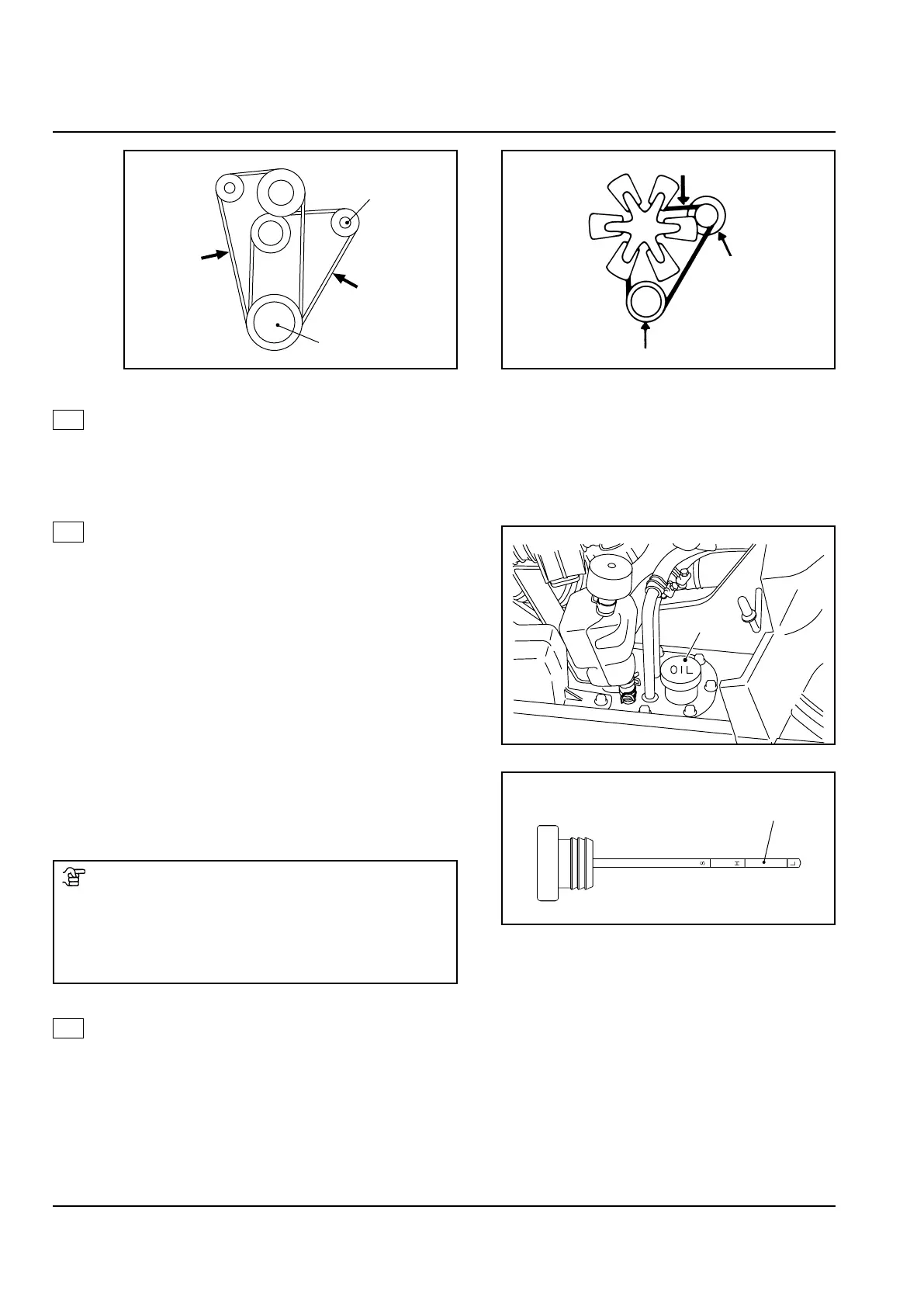

HYDRAULIC OIL LEVEL
Raise the right side-cover to remove.
Check the hydraulic oil level in the tank using the oil
level dipstick.
Remove the dipstick of the tank cap, clean the rod with
a clean cloth and reinsert it. Remove the dipstick again
and check the oil level. If the level is low, add hydraulic
oil.
[How to read oil level]
“H” mark: Highest position of the standard truck
“L” mark: Lowest position of the standard truck
“S” mark: For trucks with a lift height of 6 m or more
or for special trucks, the oil level should be
within 10 mm above or below this mark.
NOTE
The oil level check should be performed with the
engine shut down, the mast vertical, the forks on the
ground or floor surface, and the truck parked on a
level surface.
11
HYDRAULIC OIL PIPING AND
CYLINDERS
Visually check the hydraulic oil piping and lift and tilt
cylinders for oil leaks.
TANK CAP
OIL LEVEL
DIPSTICK
Push
GENERATOR
PULLEY
CRANK PULLEY
C240
ALTERNATOR
PULLEY
CRANK PULLEY
V2403
4-10
PREOPERATIONAL CHECKS
