Explanation of machine plates
European machine plates
The Machine plate contains important information. Read it
carefully! The permitted load shall not be exceeded. The stated
load limit assumes that the load is evenly distributed on the
forks.

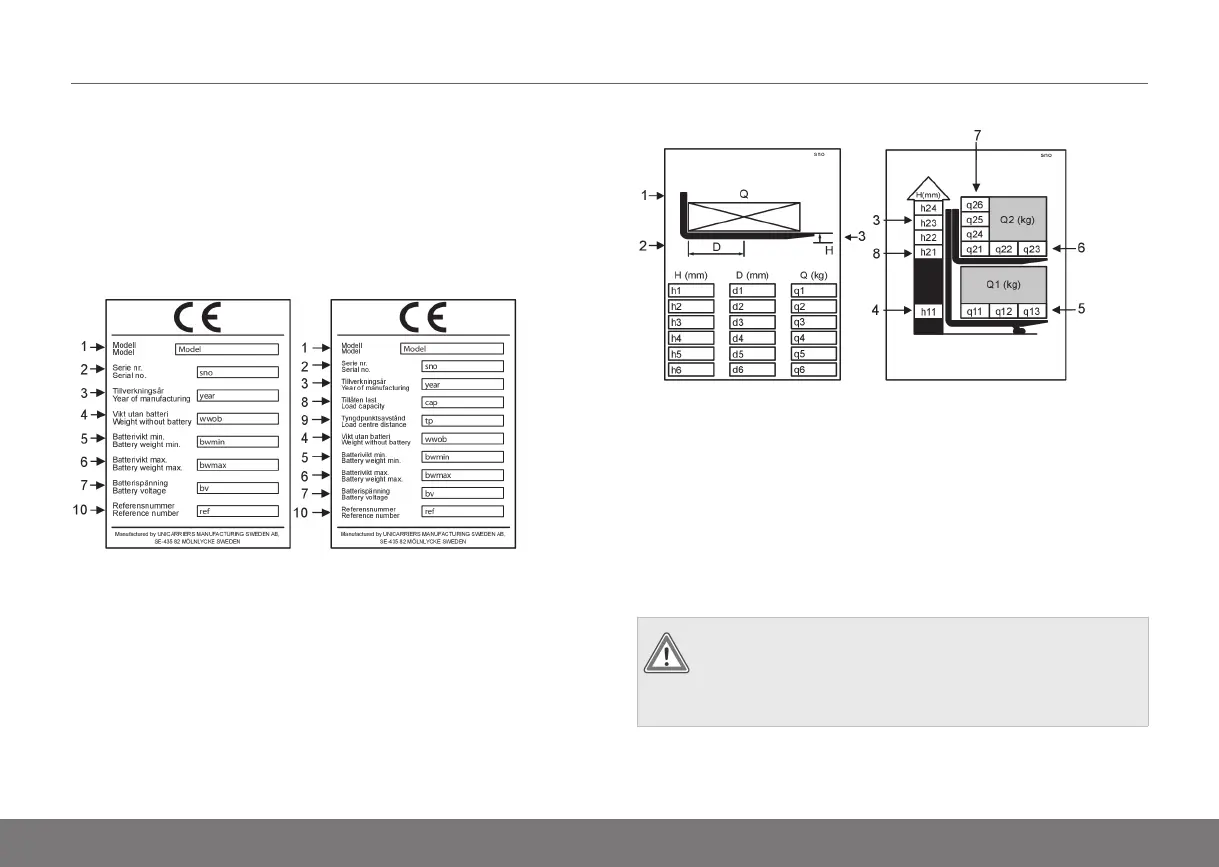

Figure 1. Machine plates
1. Model designation
2. Type Serial No./Version
(S=Special version)
3. Year of manufacture
4. Weight without battery
5. Minimum battery weight
6. Maximum battery weight
7. Battery voltage
8. Permitted load
9. Distance to centre of
gravity
10. Reference number (year and
nonth of manufacture)
Figure 2. Load limit plates
1. Actual capacity, Q
2. Load centre distance, D
3. Lift height for fork lift, H
4. Lift height for straddle lift
5. Load limit for straddle lift,
Q1
6. Load limit for fork lift with load
on straddle lift, Q2
7. Load limit for fork lift without
load on straddle lift
8. Maximum lifting height for
fork lift with load on straddle
legs
WARNING!
For the truck to fulfil stability requirements, the
instructions on the load limit plate must be
respected.
