Dimensions PL*/PS*

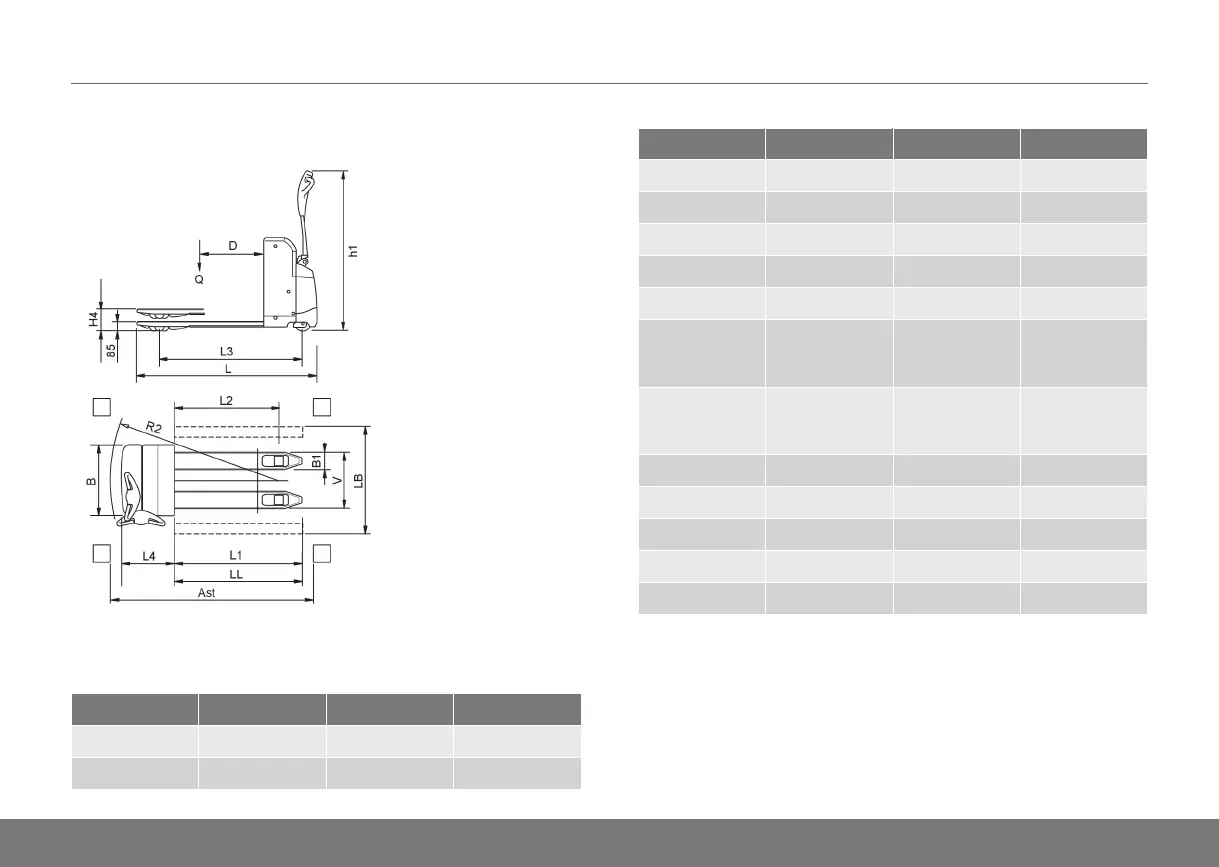

Figure 13. Positions for dimensions PLL
Measurements PLL 145 PLL 180 PLL 200
D 600 600 600
H4 205 205 205
Table 10. Truck type and dimensions in mm
Measurements PLL 145 PLL 180 PLL 200
R2 1385/1575 1385/1575 1385/1575
H6
L 1495/1685 1495/1685 1495/1685
B 660 660 660
L1 1000/1190 1000/1190 1000/1190
V (width over
forks, std
max-min)
520/680 520/680 520/680
V (width
between fork
shanks)
200/360 200/360 200/360
L4 495 495 495
B1 160-48 160-48 160-48
H1 85 85 85
L2 785-975 785-975 785-975
L3 1128/1318 1128/1318 1128/1318
