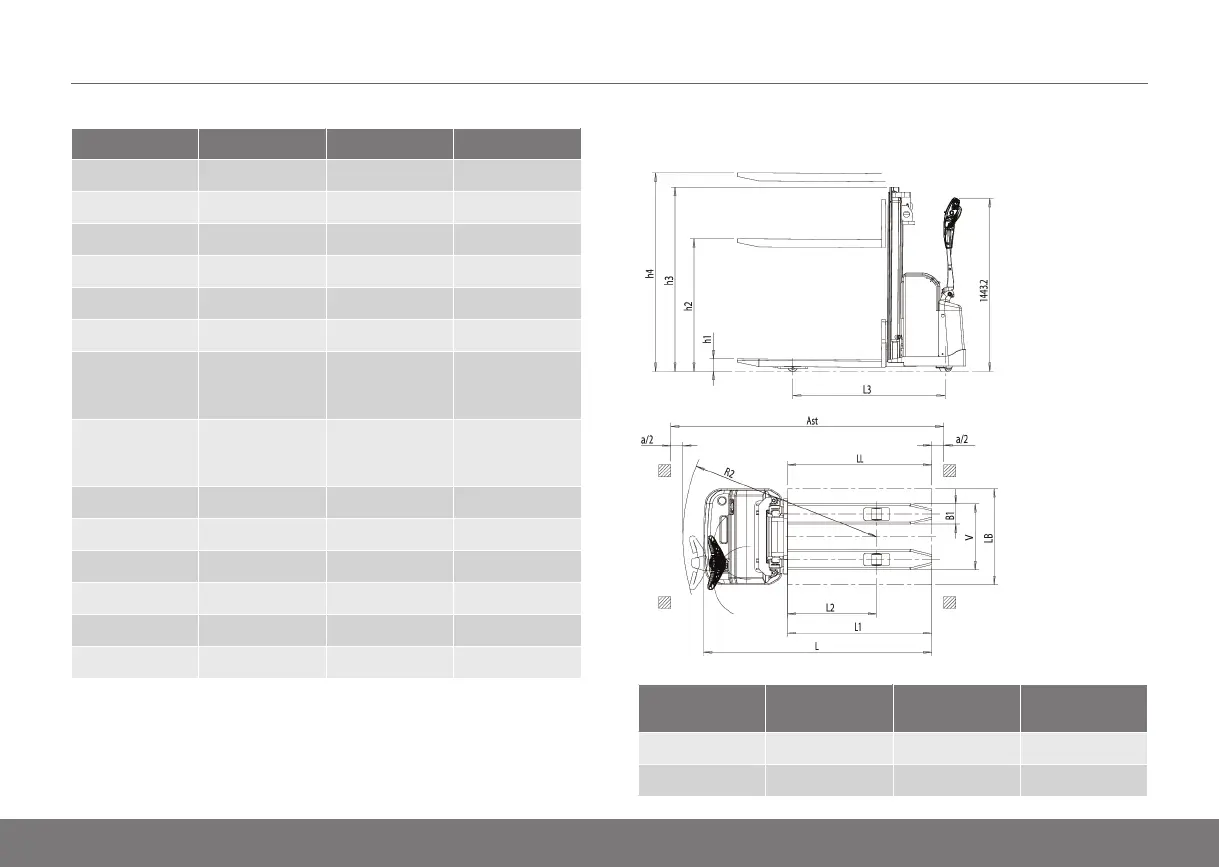

UniCarriers PLP 200 - Dimensions PS, PSH

DIMENSIONS16
77
Measurements PLE PSD 125/160 PSL
H5 1090
H2 210
R2 1710 1755 1755
L 1770 1873 1873
B 660 660 660
L1 1200 1200 1200
V (width over
forks, std
max-min)
534 540 540
V (width
between fork
shanks)
170 170
L4 570 673 673
B1 184-60 185-65 185-65
H1 88 92
B2 166 175
L2 990 990 950
L3 1412 1510 1510
Dimensions PS, PSH
Measurements PSH 200
SDTFV
PSH 200
BDTFV
PS 125 TV/TFV
H5 4118-5918 4130-5930 3105-4010
H4 3600-5400 3600-5400 2690-3590
