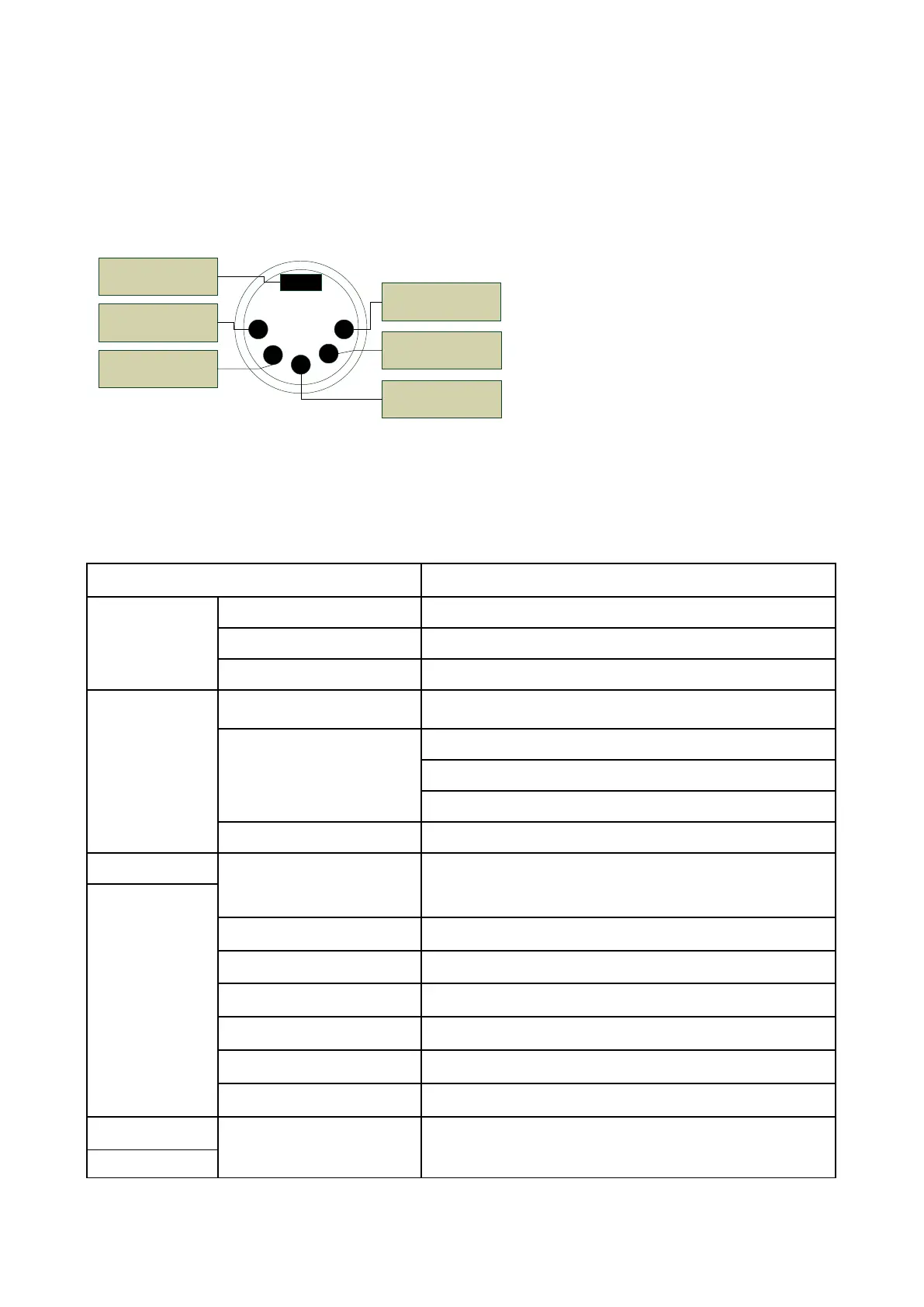

unication G1 User Manual

Page12
PI N 1
A udi o
PI N 4
Relay Closure Timing
PI N 2
Relay Dry C ontact
PI N 5
Relay Closure Timing
PI N 3
Relay Dry C ontact
PI N 6
Ground (A udi o)
■ACCESSORY
Note: When PIN4 and PIN5 of DIN Jack are “Open”, Fire Alert Indicator blinks 10 seconds.
Otherwise, Fire Alert Indicator continues light till users press Reset Button when PIN4 and PIN5
are closure.
6. SPECIFICATION
6-1 GENERAL SPECIFICATION
Item Specification
Charging Type
Main Charging Slot
For G1Pager *1
Spare Charging Slot
For Spare Ni-MH Battery AAA * 2
BT Charging Socket
For BT Headset (USB A-Type)
Power Supply
Adaptor Input / Output
Input : 100~240VAC / 50~60 Hz
Output :12Vdc / 1.5A
Normal Charge Current
800mA/2.4V (G1Pager)
800mA/1.2V (Spare Battery AAA*1)
80mA/5.0V (BT Headset )
Full Recharge Time
2.5 Hours
SPL
Alert output
≧
106 dB
External I/O
Audio Out 3.5 Ø Earphone Jack *1
Ext. Antenna Connector BNC Jack *1
Bluetooth Charging Port USB A-Type *1
Data Transfer RS485 (DB-9 Female) *1
DC Jack 12Vdc / 1.5A
Connector Socket 4 Pin Connector Socket (For External Horn Speaker)
DIN Jack 6 Pin DIN Jack
Physical Dimensions 162(L) x 115(W) x 53(H) mm
Handing
Operation Temperature
0 ~ + 40
℃

unication G1 Specifications

General

Brand	unication
Model	G1
Category	Amplifier
Language	English
