The vertical plenum module includes a filter and a
space for a hot water coil. If the unit is installed in an
area where water may cause damage, be sure to set the
unit inside a drain pan.
The return air opening for the vertical plenum module
is in the front. If connecting to a flexible duct, you will
need the return air adapter. The return air adapter
attaches to the front of the return plenum module using
latches, which need to be moved from the top to the
sides (figure 8).

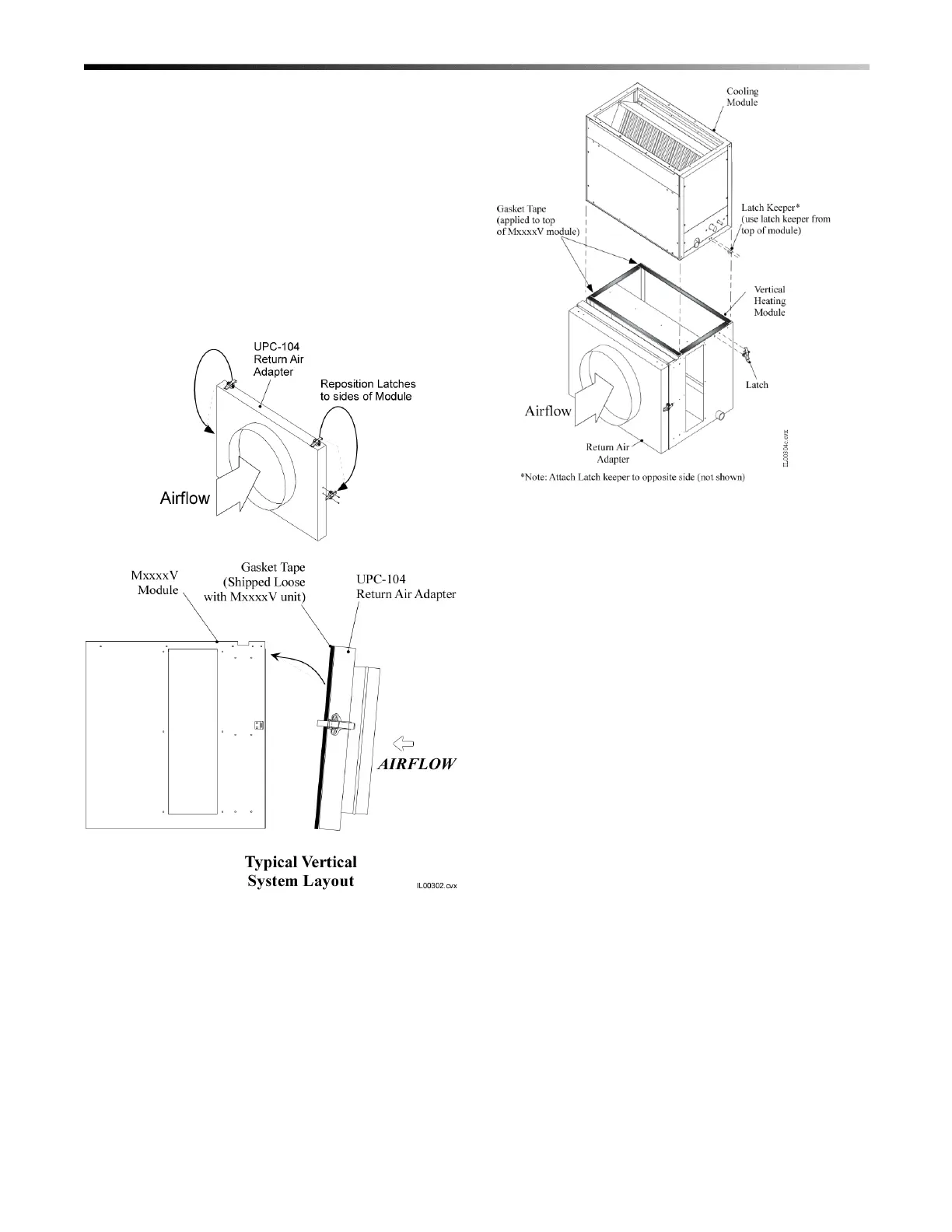

Figure 8. UPC-104 Return Air Adapter
Installation
Assembling the AHU for vertical up-flow Position
the base, either the vertical module or a field fabricated
unit, where desired. Then set the cooling module on
top of the base as shown in Figure 9. Use gasket tape
under the cooling cabinet to prevent air leaks.
Figure 9. Installing the Cooling Module
Then set the spacer section on top of the coil, securing
it with the corner brackets as shown in Figure 10. The
blower module goes on top. The blower module can
be turned 180 degrees to position the motor to the other
side, or top position the blower discharge towards the
front.
