unicore UM981 User Manual

UC-00-M33 EN R1.0 Packaging 21
250mm
1mm

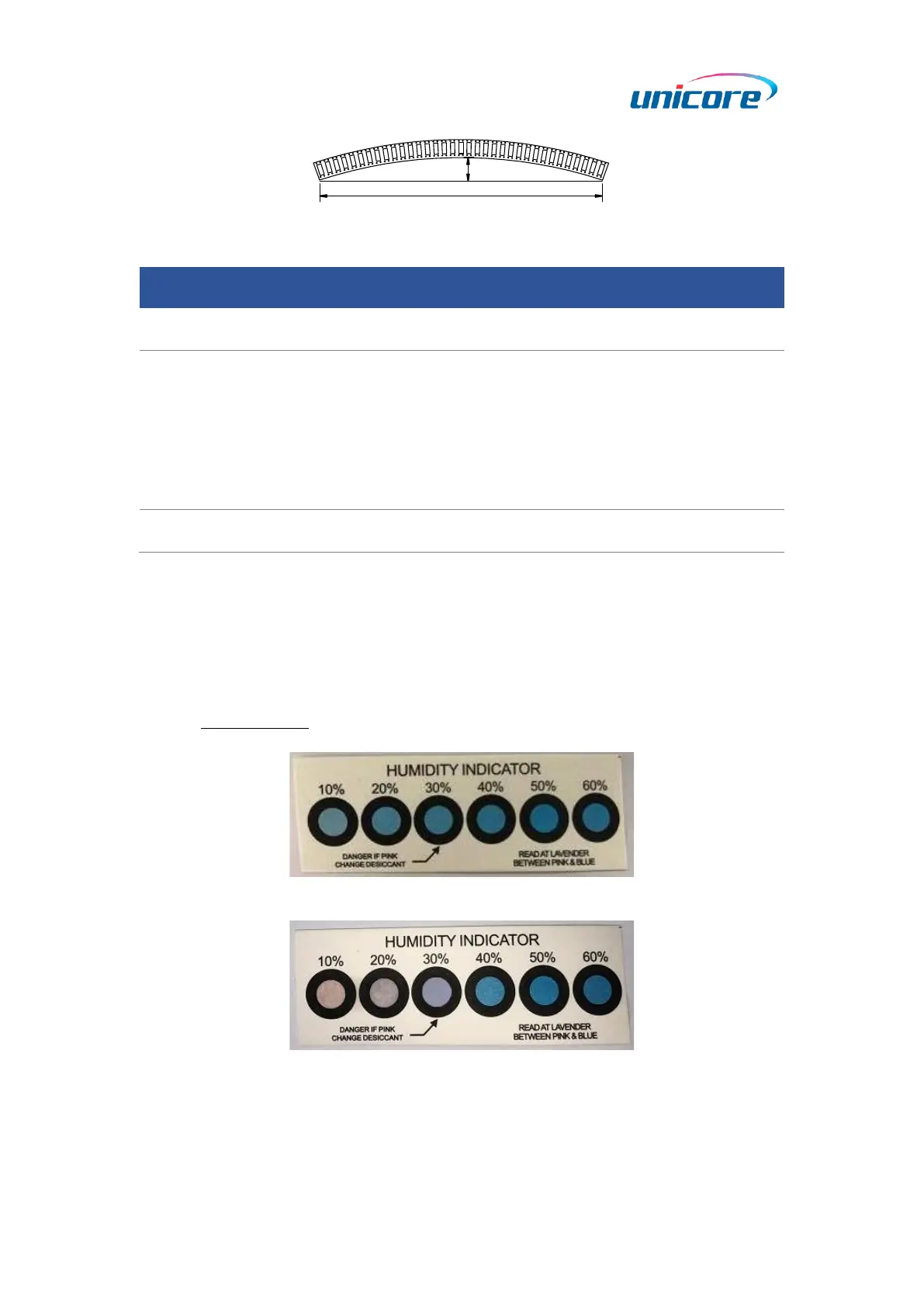

Figure 5-3 UM981 Reel Package Diagram
Table 5-1 Package Description
Item
Description
Module Number
250 pieces/reel
Reel Size
Tray: 13"
External diameter: 330 ± 2 mm,
Internal diameter: 180 ± 2mm,
Width: 44.5 ± 0.5 mm
Thickness: 2.0 ± 0.2 mm
Carrier Tape
Space between (center-to-center distance): 24 mm
Before surface mounting, make sure that the color of the 30% circle on the HUMIDITY
INDICATOR is blue (see Figure 5-4). If the color of the 20% circle is pink and the color of
the 30% circle is lavender (see Figure 5-5), you must bake the module until it turns to
blue. The UM981 is rated at MSL level 3. Please refer to the IPC/JEDEC J-STD-033
standards for the package and operation requirements. You may also access to the
website www.jedec.org to get more information.
Figure 5-4 Normal Humidity Indication
Figure 5-5 Abnormal Humidity Indication
The shelf life of the UM981 module packaged in vacuum-sealed aluminum foil antistatic
bags is one year.
