ENDAT-3857 USERS MANUAL

UNICORN COMPUTER CORP.

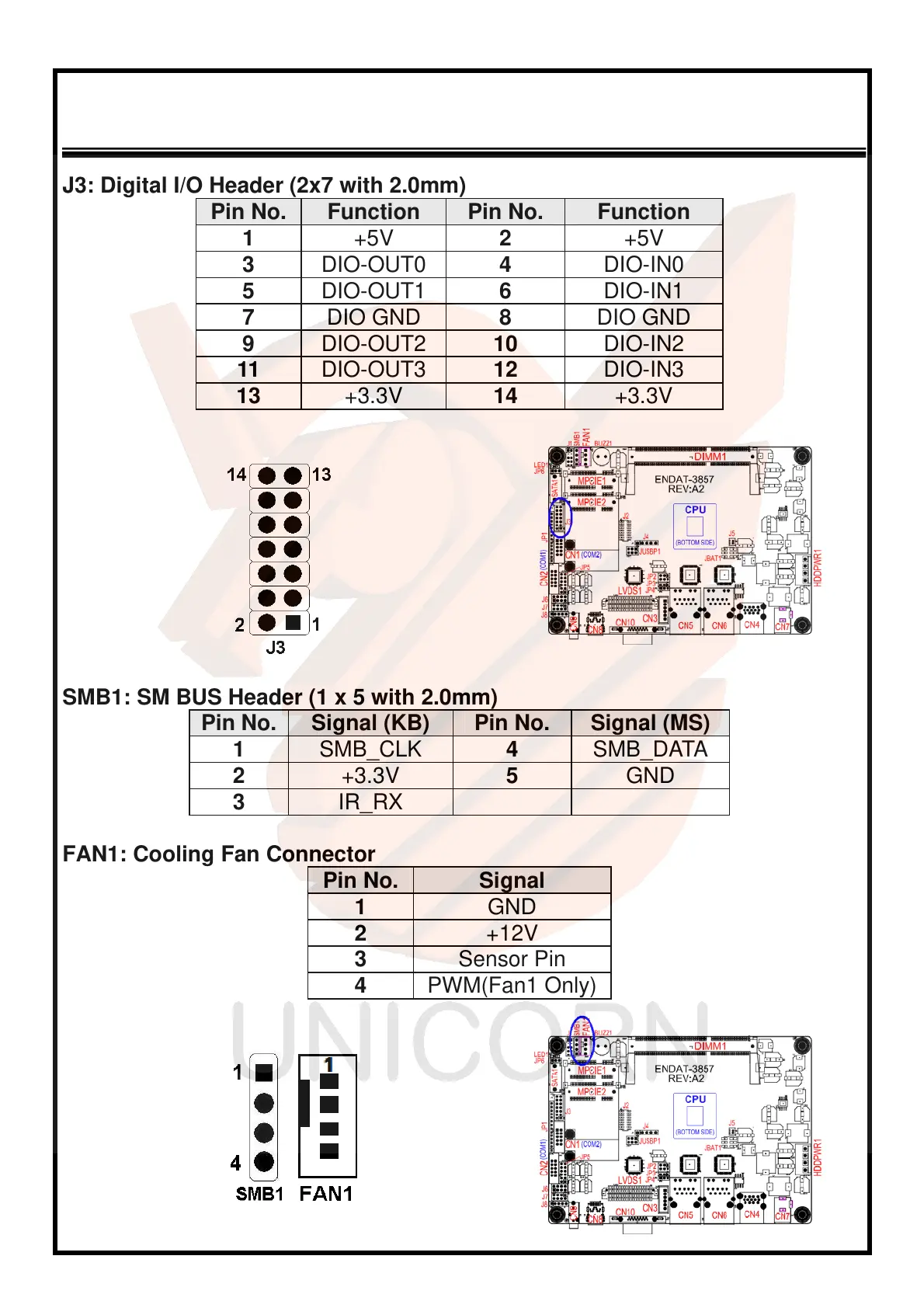

J3: Digital I/O Header (2x7 with 2.0mm)

Pin No. Function Pin No. Function

1 +5V 2 +5V

3 DIO-OUT0 4 DIO-IN0

5 DIO-OUT1 6 DIO-IN1

7 DIO GND 8 DIO GND

9 DIO-OUT2 10 DIO-IN2

11 DIO-OUT3 12 DIO-IN3

13 +3.3V 14 +3.3V

SMB1: SM BUS Header (1 x 5 with 2.0mm)

Pin No. Signal (KB) Pin No. Signal (MS)

1 SMB_CLK 4 SMB_DATA

2 +3.3V 5 GND

3 IR_RX

FAN1: Cooling Fan Connector

Pin No. Signal

1 GND

2 +12V

3 Sensor Pin

4 PWM(Fan1 Only)
