ENDAT-3857 USERS MANUAL
UNICORN COMPUTER CORP.
22

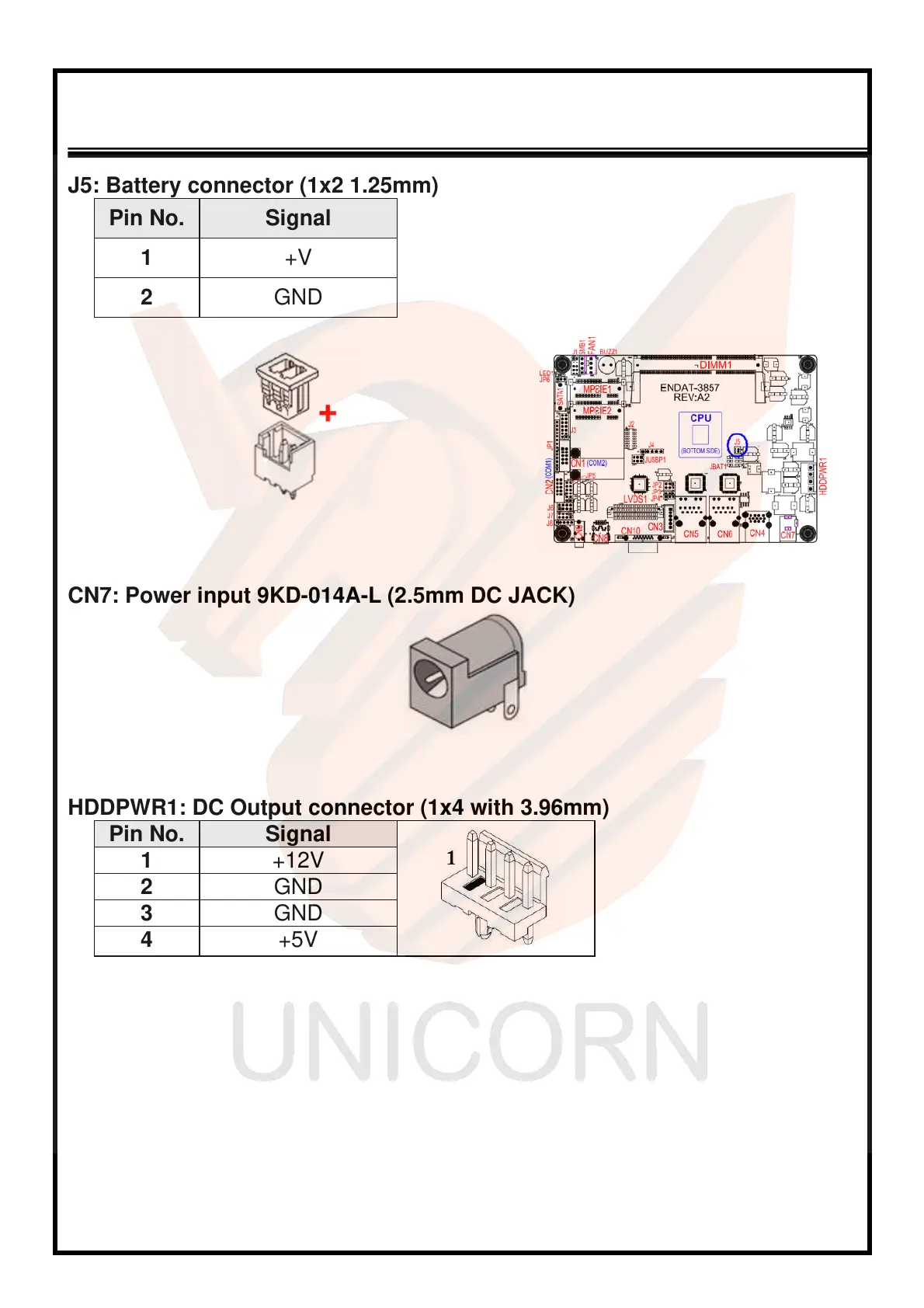

J5: Battery connector (1x2 1.25mm)
Pin No. Signal
1 +V
2 GND
CN7: Power input 9KD-014A-L (2.5mm DC JACK)
HDDPWR1: DC Output connector (1x4 with 3.96mm)
Pin No. Signal
1 +12V
2 GND
3 GND
4 +5V
