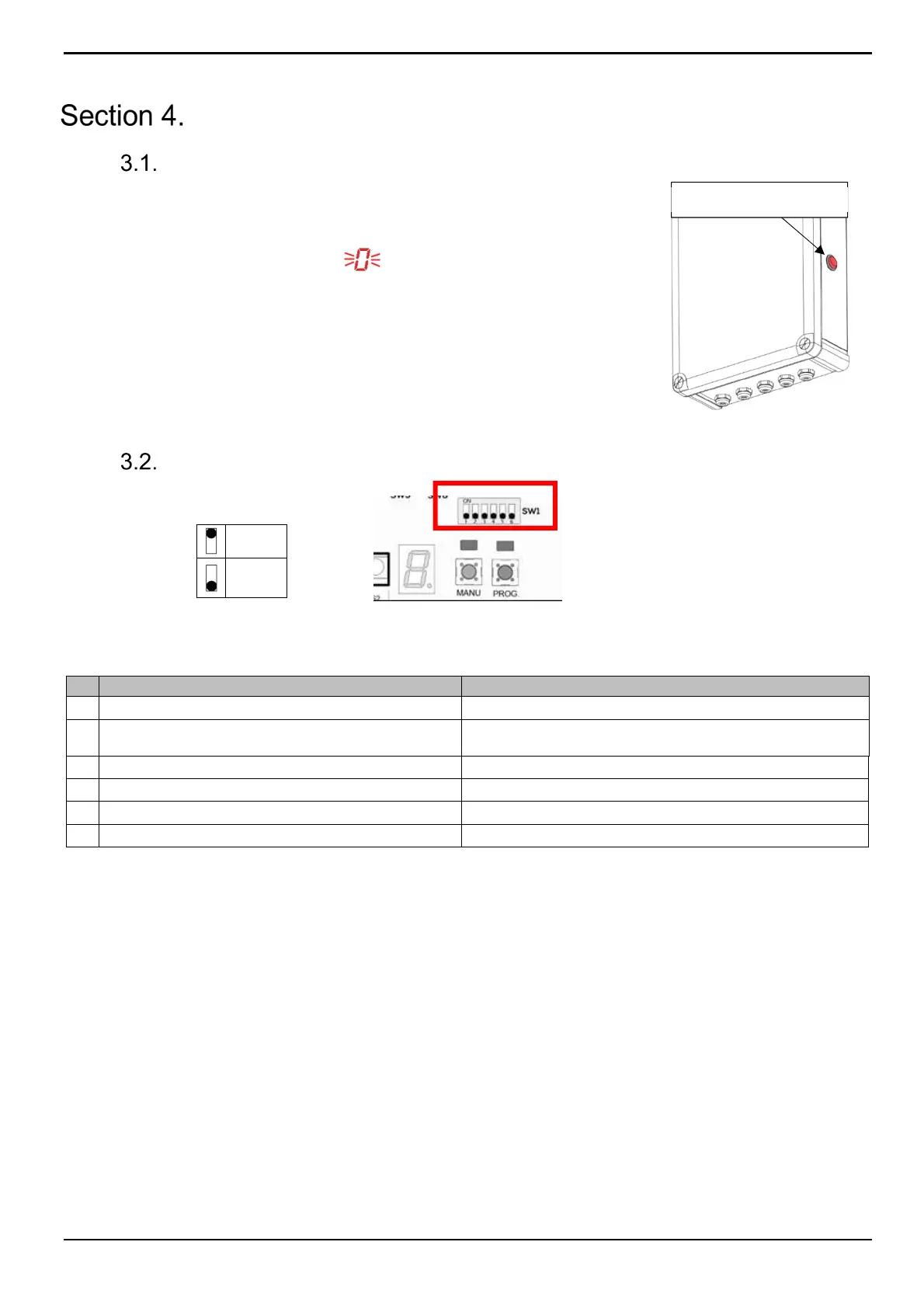

User and installation manual
Réf : 004057-02 Page : 10/17
Control box configuration and programming
General information
To power-on the control box, press the red switch on the side and put on position « I »
The switch will light up and the board run its start-up sequence. During board
initialization procedure you’ll see code « » blinking on INFO/ALARM display for a
few seconds.
Control box has been conceived and sized in order to work continuously up to 10
minutes maximum. Beyond this time try to let the board at rest for half an hour to allow
components cooling down.
Temperature working range is between 0°C and 50°C max.
Micro-switches programming
Micro-switches « SW1 »
OFF ON
1
Contact held to open Open with one pulse
2
Contact held to close Close with one pulse (Not compliant with NF P90-308
and forbidden in France)
3
Safety loop disabled Safety loop active
4
Available Available
5
Available Available
6
Available Available
Power-on switch
= ON
= OFF
