Installation
Control box physical installation
Installation must be made in compliance with electrical norms valid in each specific country; in France norm NF-C
15-100 or in Europe norm HD 384-7-702 must be applied. More in general, please refer to local equivalent
regulations.
Control box must be installed in a technical room and not exposed to ice or very cold weather. The place must be
protected from rain and from direct sun exposure; it must be placed far from heat sources and from water.
It must be installed at the right height from floor, ideally between 1.2 and 1.5-meter, vertical position, cable glands
towards the floor; wall must be flat enough to bear the weight of the control box.
Control box positioning and drilling:
1. Mark on the wall the four positions corresponding to the four external holes in the corners of the box; you
can use the drilling position template paper which is included with the package.

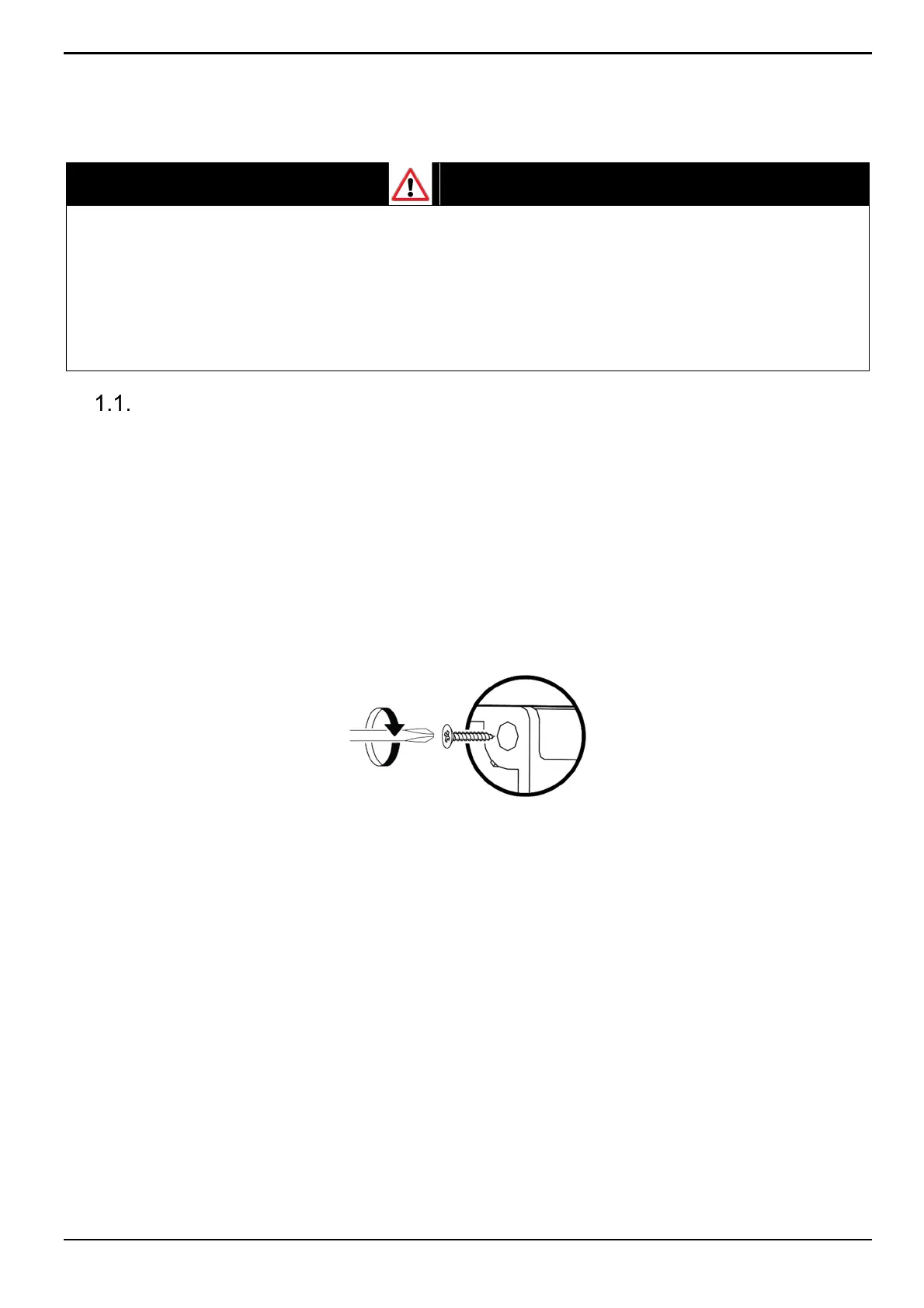

Fig.1 – External holes position
WARNING : Not respecting this recommendation will make the warranty void.
2. Drill four holes on the mounting wall surface.
3. Insert four plastic anchors nylon polyamide (M6x30) tightly inside the holes.
4. Screw the control box onto the wall (screw – VBA TF 4x30 INOX A4)
WARNING
FOR YOUR SECURITY – Installation must be performed by an authorized and trained technician following NF-C
18-510 or EN 50110-1.
Definition of a qualified installation technician as per NF C 18-510: « professional having a proven technical
culture, knowledge and experience and training in electricity allowing him to analyse electrical risks thus avoiding
related dangers ».
To Next Page
