User and installation manual
Réf : 004057-02 Page : 5/17
Control device installation
1.2.1. Three positions key switch
1.2.1.1. Key switch characteristics:
Key switch must respect to local electrical security standards and regulations.
Electrical symbol for key switch
Key switch must be IP65 waterproof in order to allow an outdoor installation, close to the pool.
Example of limit switch
The key switch must have a good quality and must prevent any possible false contacts that may degrade its normal
operation.
1.2.1.2. Direction identification on the key switch:
Positions and rotation directions must be clearly identified on the key switch and must remain understand all along
cover pool lifetime.

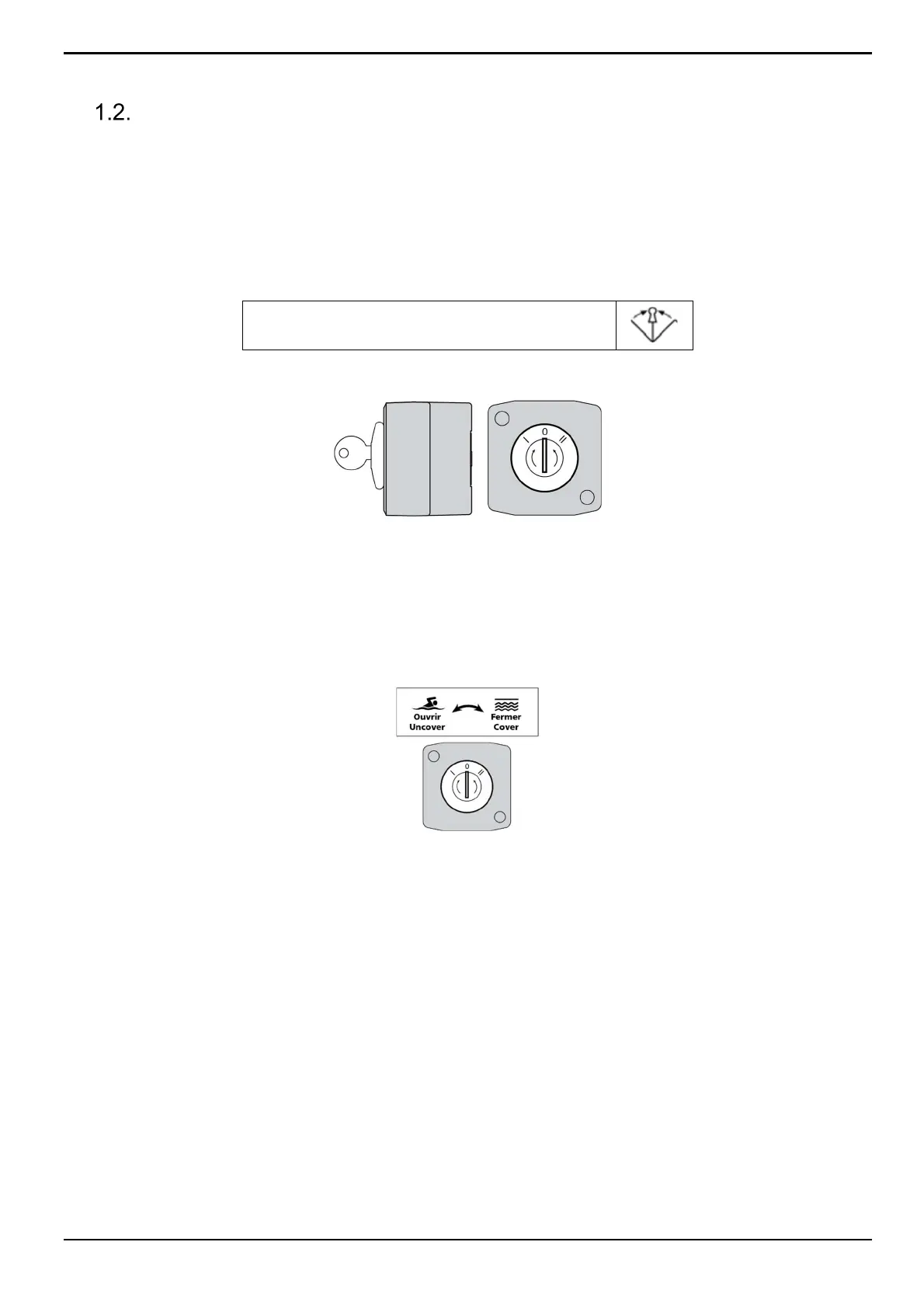

Fig.3 – Example of identification
1.2.1.3. Key switch localisation:
Key switch must be physically placed in a way that user can have full view ont the pool in order to verify the absence
of people or obstacles during cover closing phase.
Key switch must be installed high enough to keep it away from children in order to avoid that they may operate the
cover without the presence of an adult person.
1.2.1.4. Key switch maintenance:
Key switch is an essential security device. For this reason, it must be replaced whenever a minimum defect appears.
