User and installation manual
Réf : 004057-02 Page : 6/17

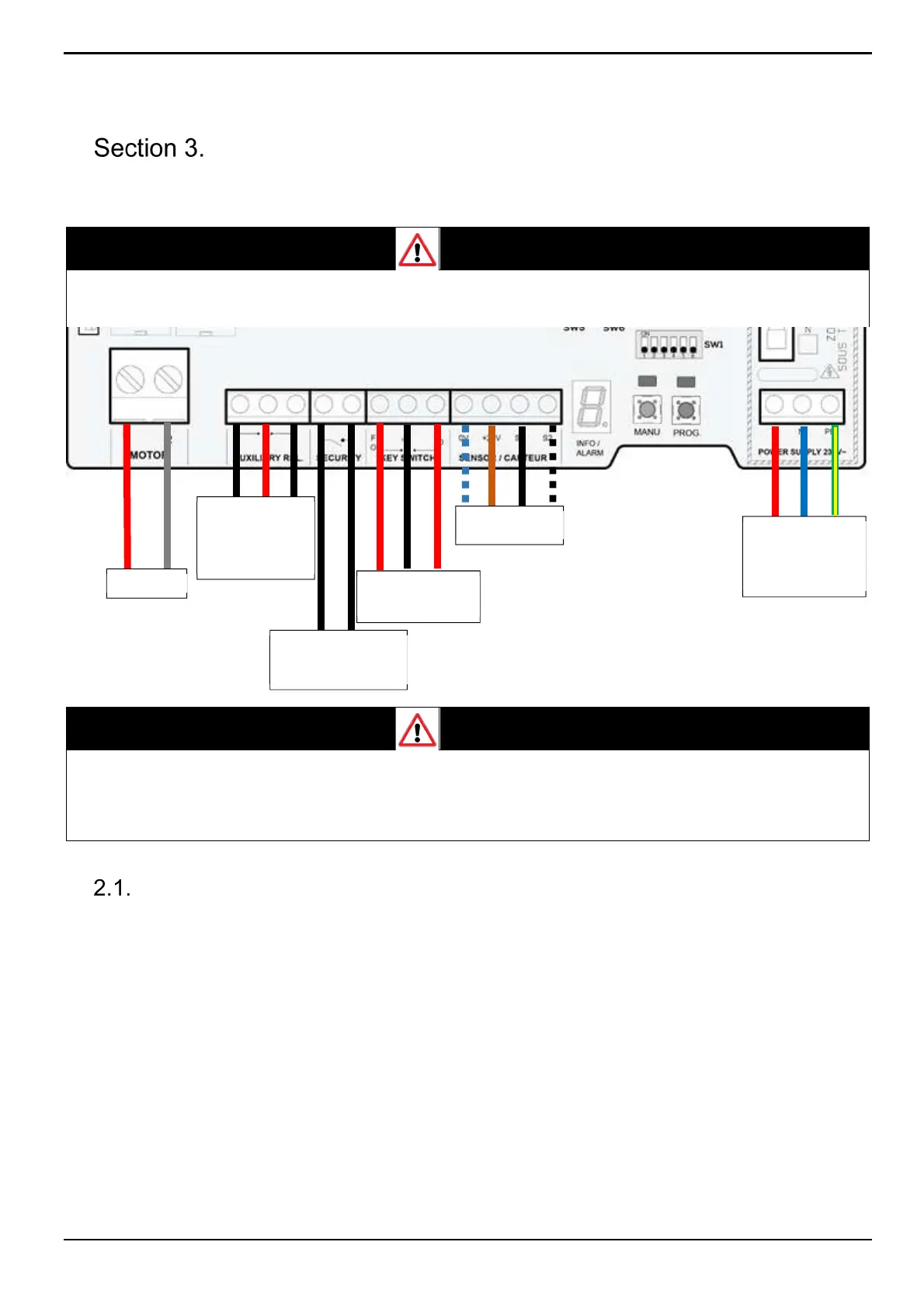

Electrical cable wiring
Generalities
Verify that wires don’t present any defect or non-conformity.
Cables must be protected so that nobody can be wrenched or crushed.
With respect to electrical norms, a yellow/green cable can be used only for ground connection.
Do not forget to screw cable glands when wiring is done; this guarantees correct waterproof level.
WARNING
All electrical connections have to be made with DC power OFF.
WARNING
FOR YOUR SECURITY – Installation must be performed by an authorized and trained technician following NF-C
18-510 or HD 384-7-702 in Europe.
monophasic
mains
Key switch
Auxiliary
relay
(Electroliser)
Safety loop
Sensor
To Next Page
