Unigas C85A - Page 89

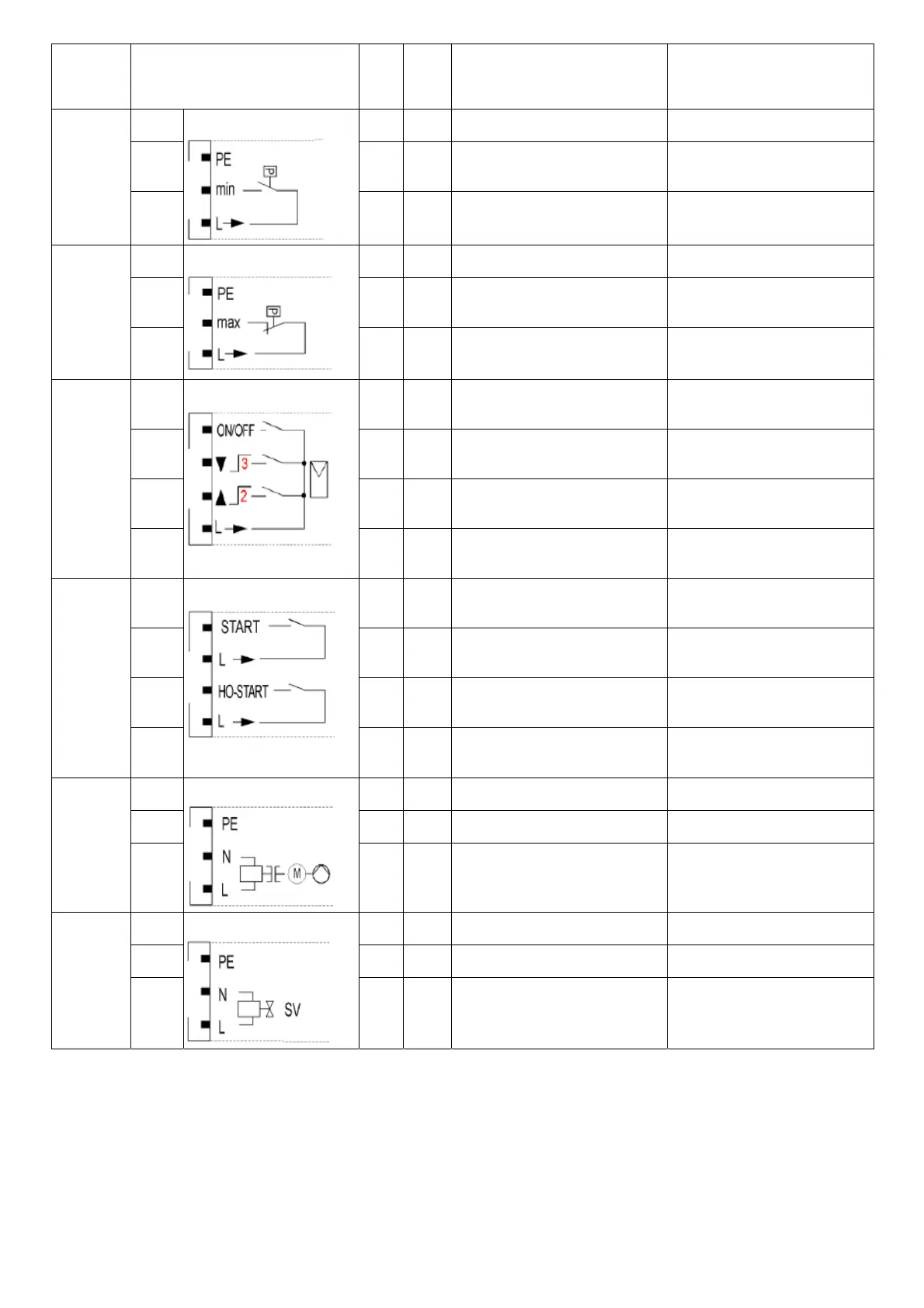

Terminal
group
Connection symbol
Input Outpu
t
Description of connection terminals Electrical rating
X5-01
PIN1 x Protective earth (PE)
PIN2 x
Pressure switch min-oil (DWmin-oil)
A
C 230 V +10 % / -15 %,
50...60 Hz, Imax 1.5 mA
PIN3 x
Power signal for pressure switch-min-
oil (DWmin-oil)
A
C 230 V +10 % / -15 %,
50...60 Hz, Imax 500 mA
X5-02
PIN1 x Protective earth (PE)
PIN2 x
Pressure switch-max-oil (DWmax-oil)
A
C 230 V +10 % / -15 %,
50...60 Hz, Imax 1.5 mA
PIN3 x
Power signal for pressure switch-max-
oil (DWmax-oil)
A
C 230 V +10 % / -15 %,
50...60 Hz, Imax 500 mA
X5-03
PIN1 x Controller (ON / OFF)
A
C 230 V +10 % / -15 %,
50...60 Hz, Imax 1.5 mA
PIN2 x Controller closes / stage 3
A
C 230 V +10 % / -15 %,
50...60 Hz, Imax 1.5 mA
PIN3 x Controller opens / stage 2
A
C 230 V +10 % / -15 %,
50...60 Hz, Imax 1.5 mA
PIN4 x
Power signal for control of con- troller
A
C 230 V +10 % / -15 %,
50...60 Hz, Imax 500 mA
X6-01
PIN1 x Start release oil
A
C 230 V +10 % / -15 %,
50...60 Hz, Imax 1.5 mA
PIN2 x Power signal start release oil
A
C 230 V +10 % / -15 %,
50...60 Hz, Imax 500 mA
PIN3 x Direct heavy oil start
A
C 230 V +10 % / -15 %,
50...60 Hz, Imax 1.5 mA
PIN4 x
Power signal direct heavy oil start
A
C 230 V +10 % / -15 %,
50...60 Hz, Imax 500 mA
X6-02
PIN1 x Protective earth (PE)
PIN2 x Neutral conductor (N)
PIN3 x Oil pump / magnetic coupling
A
C 230 V +10 % / -15 %,
50...60 Hz, 2 A, cos.0.4
X6-03
PIN1 x Protective earth (PE)
PIN2 x Neutral conductor (N)
PIN3 Fuel valve (shutoff valve-oil)
A
C 230 V +10 % / -15 %,
50...60 Hz, 1 A, cos.0.4
