Unigas C85A - Page 90

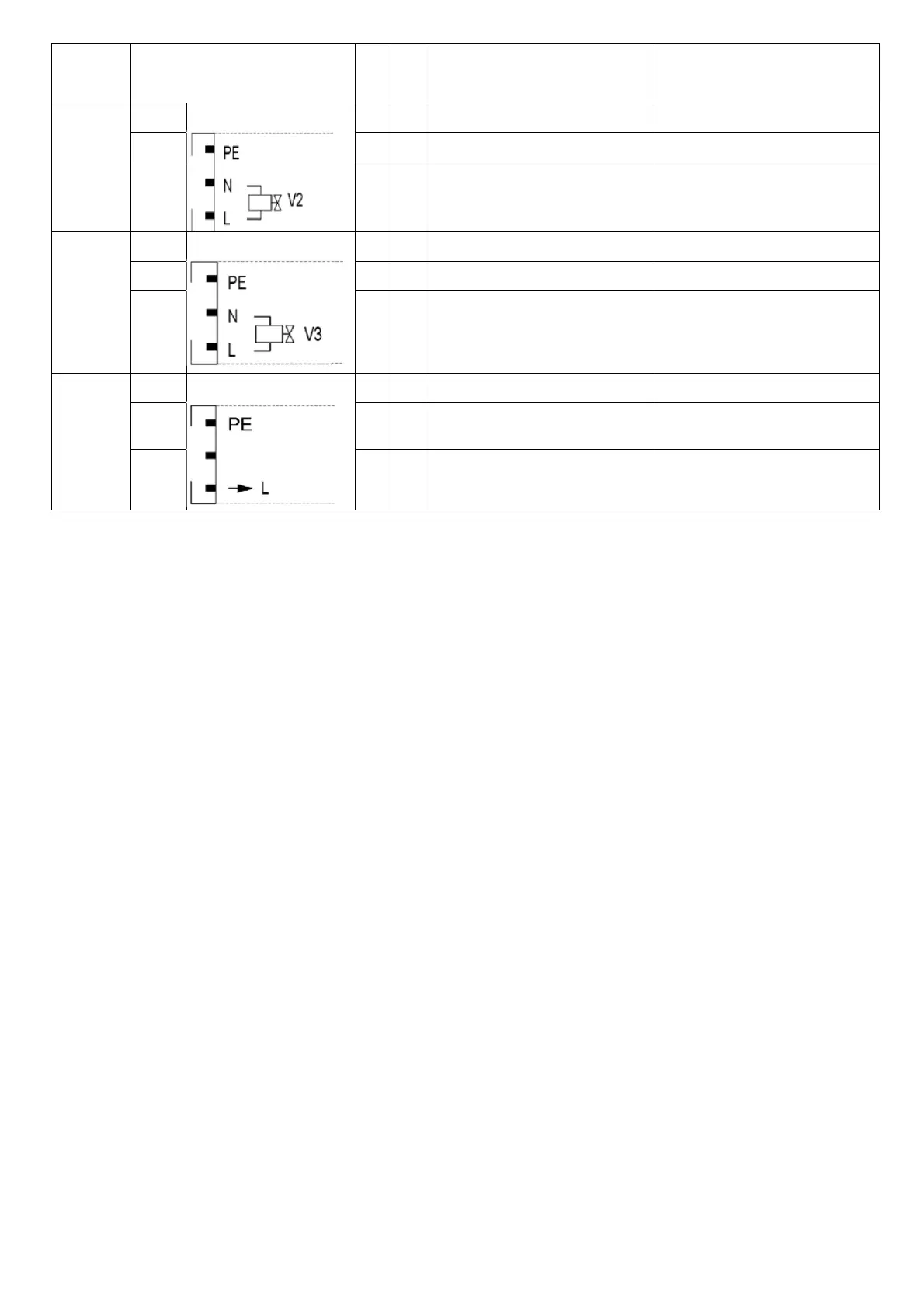

Terminal
group
Connection symbol
Inpu
t
Outpu
t
Description of connection termi- nals Electrical rating
X7-01
PIN1 x Protective earth (PE)
PIN2 x Neutral conductor (N)
PIN3 Fuel valve 2 (oil)
A
C 230 V +10 % / -15 %, 50...60
Hz, 1 A, cos.0.4
X7-02
PIN1 x Protective earth (PE)
PIN2 x Neutral conductor (N)
PIN3 Fuel valve 3 (oil)
A
C 230 V +10 % / -15 %, 50...60
Hz, 1 A, cos.0.4
X7-03
PIN1 x Protective earth (PE)
PIN2 x Start release gas CPL (LMV52...)
A
C 230 V +10 % / -15 %, 50...60
Hz, Imax 1.5 mA
PIN3 x Power signal (reserve)
A
C 230 V +10 % / -15 %, 50...60
Hz, Imax 500 mA
