Union Audio Orbit.6 - Rear Panel Input Connections

15

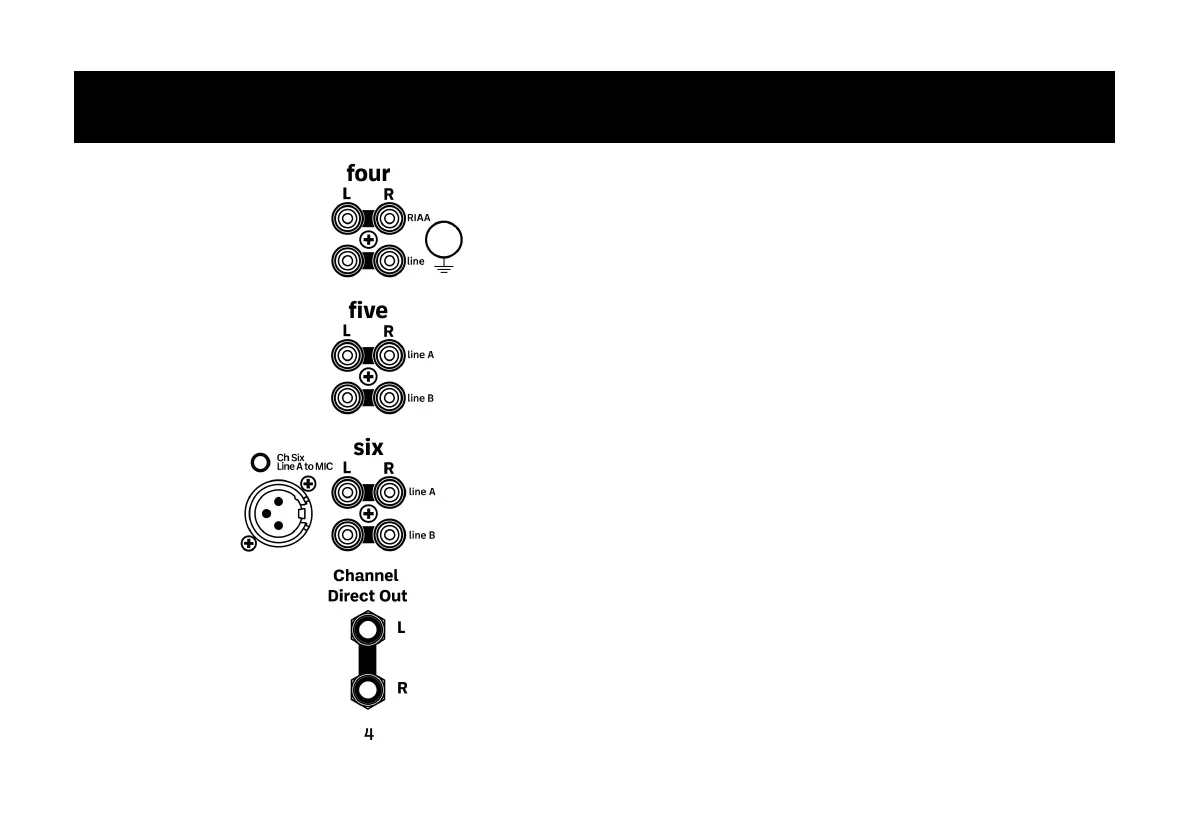

Channels 1-4 – The top row of RCA (Phono) connectors are designed for use with
turntable magnec cartridges and incorporate RIAA (Record Industry Associaon of
America) equalisaon. Do not connect line-level sources to these inputs as it could
cause damage to the sensive circuitry.
The lower row of RCA connectors are for Line level signals within the range of +26dBu
to -10dBu.
Channel 5 – Channel ve has line-level inputs for both A and B.
Channel 6 – Channel six has line-level inputs for both A and B, but addionally Input A
can be switched to the Mic Channel (see page 12).
Channel Direct Out – The channel direct output jack sockets carry the post-fade signal
for each of the six channels . These can be connected to a mul-track recorder or DAW
(Digital Audio Workstaon) enabling each channel to be recorded separately.
Rear Panel Input Connecons
