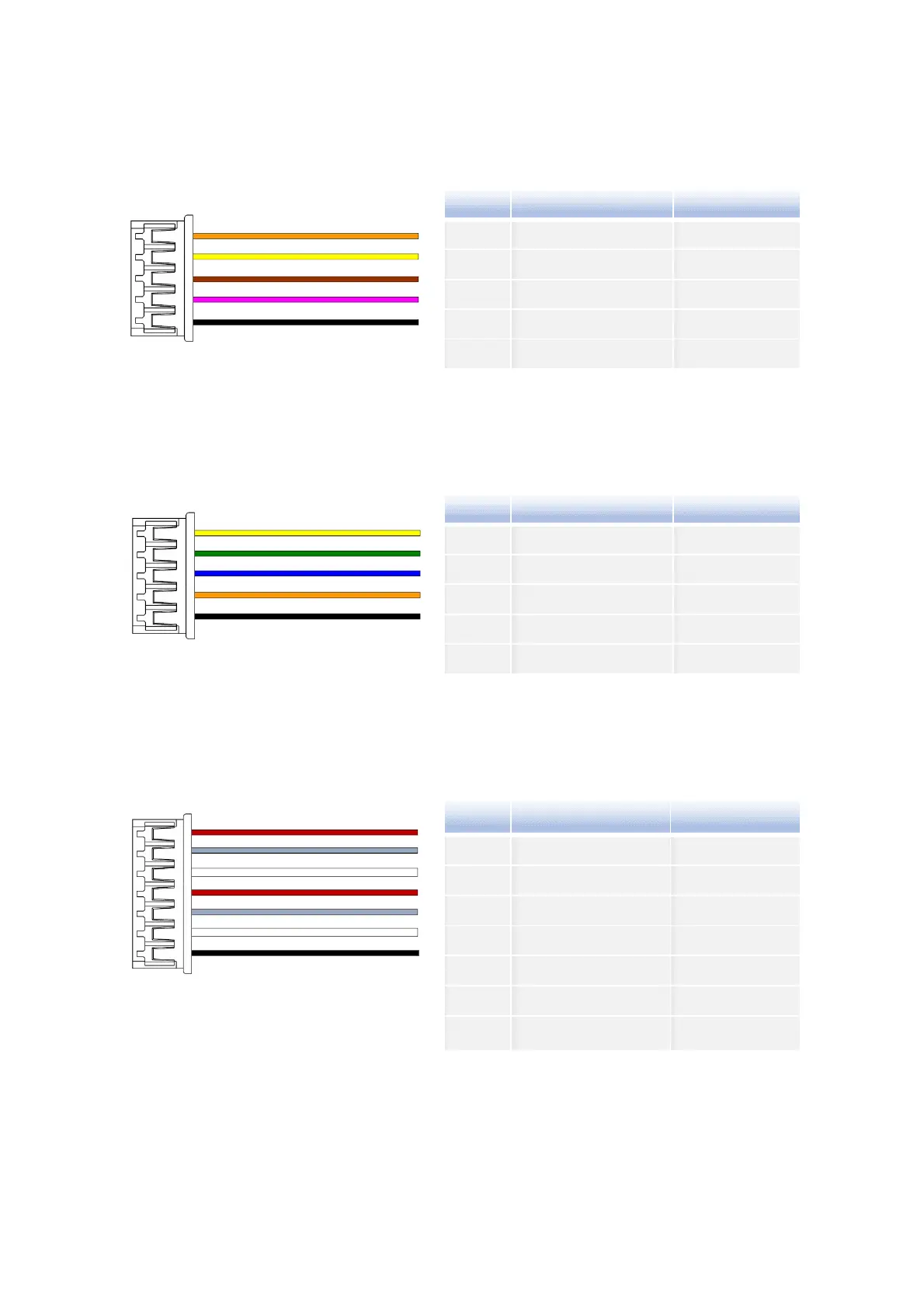

PIN Function/Label Color

1 Lock1 NC/L1NC BROWN

2 Lock1 Com/L1C GRAY

3 Lock1 NO/L1NO WHITE

4 Lock2 NC/L2NC BROWN

5 Lock2 Com/L2C GRAY

6 Lock2 NO/L2NO WHITE

7 Ground/GND BLACK

PIN Function/Label Color

1 Wiegand Out 0/WO0 ORANGE

2 Wiegand Out 1/WO1 YELLOW

3 Wiegand In 0/WI0 BROWN

4 Wiegand In 1/WI1 PINK

5 Ground/GND BLACK

Wiegand IN/OUT Connection

State Input Connection

PIN Function/Label Color

1 Door Monitor 0/DM0 YELLOW

2 Door Monitor 1/DM1 GREEN

3 Door Monitor 2/DM2 BLUE

4 Inside Open/EXT ORANGE

5 Ground/GND BLACK

Lock Connection
