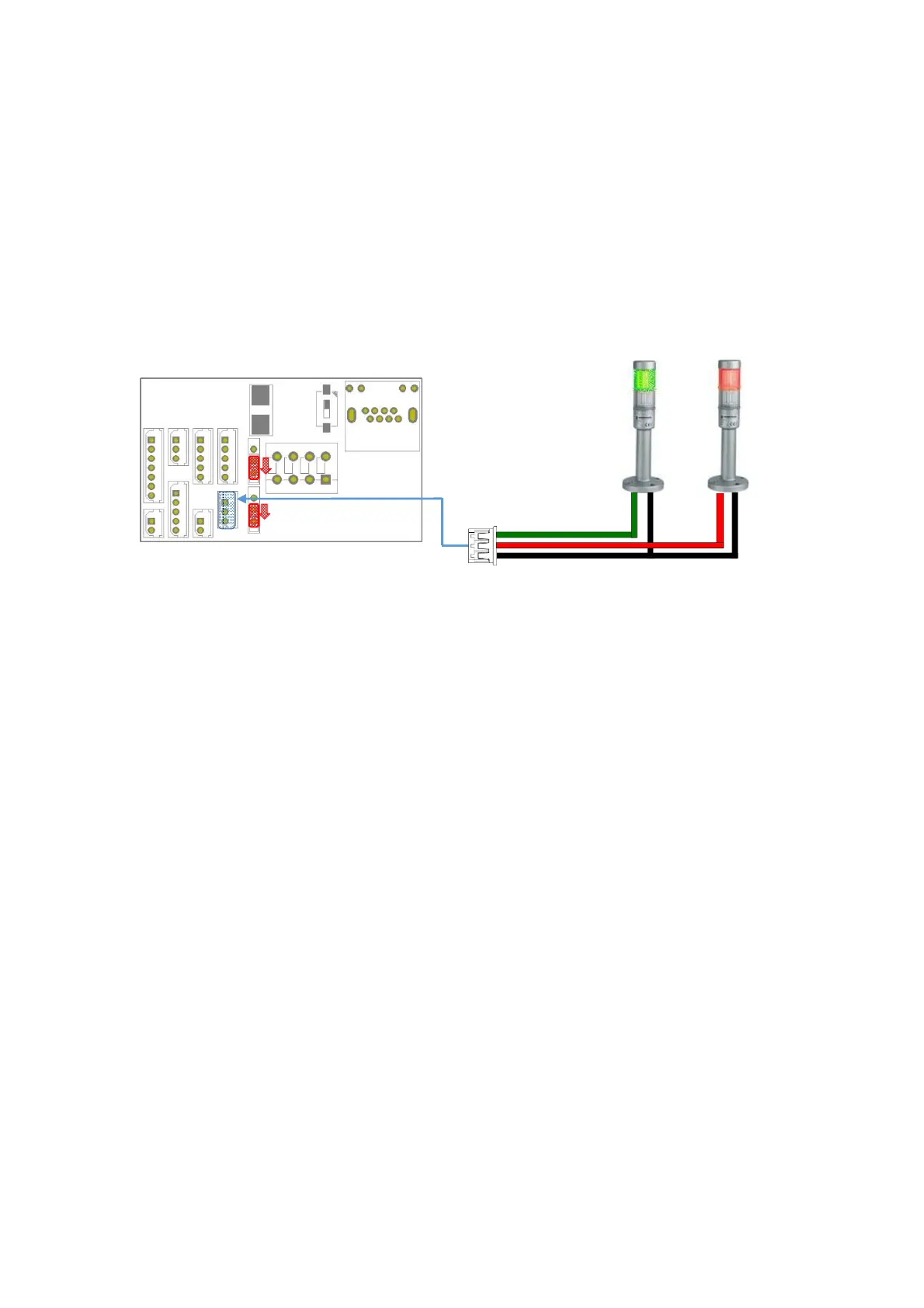

Warning Lamp Connection
Connect the warning Lamp to indicate the status externally, such as in meal mode.
* When authentication is successful, a green light is turned on, and fails, a red light is
turned on.
Warning Light
1/L_G
3/GND
(+) (-)
2/L_R
Green
Red
(+) (-)
UBio-X Face Premium
* SW4/SW5 On Position
23
